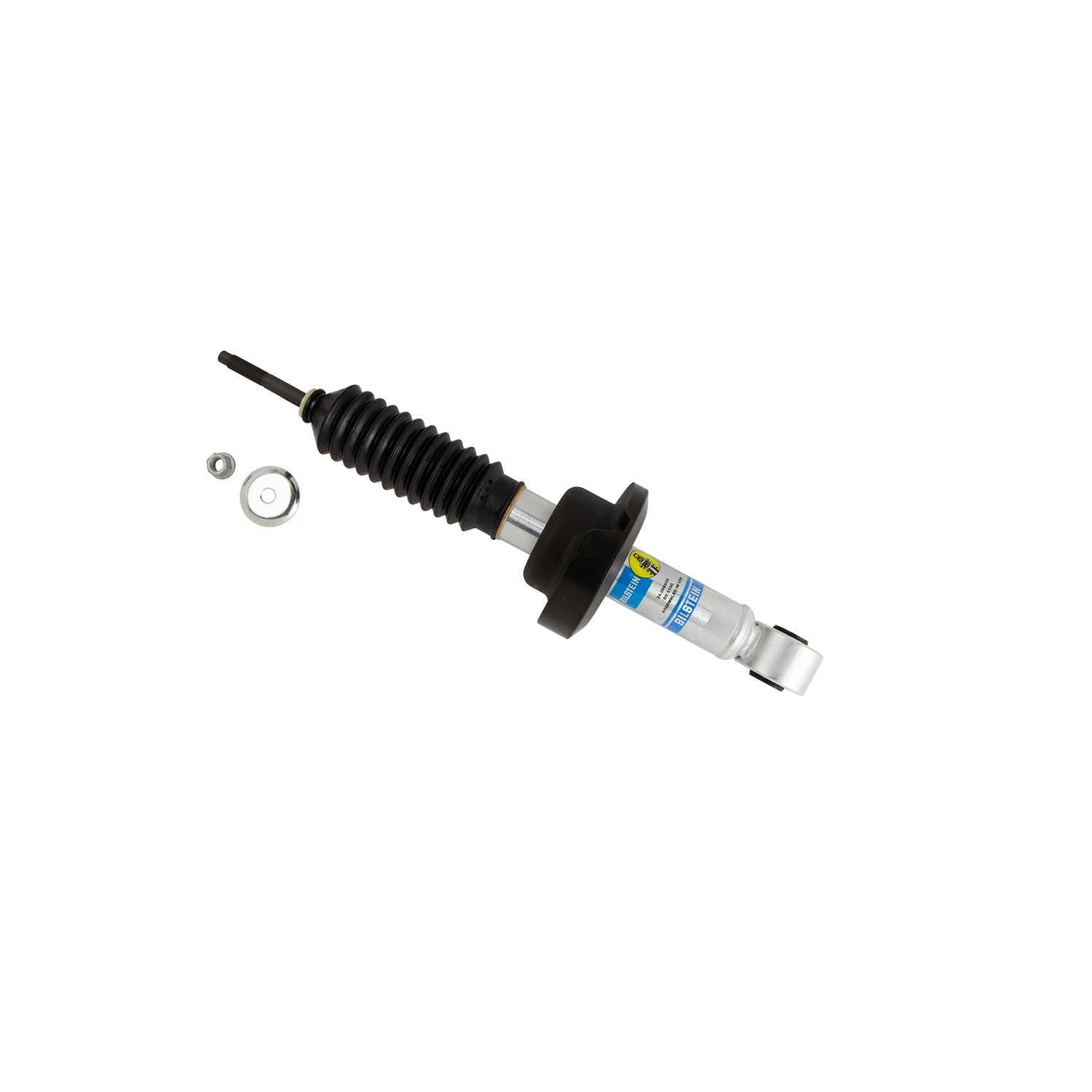

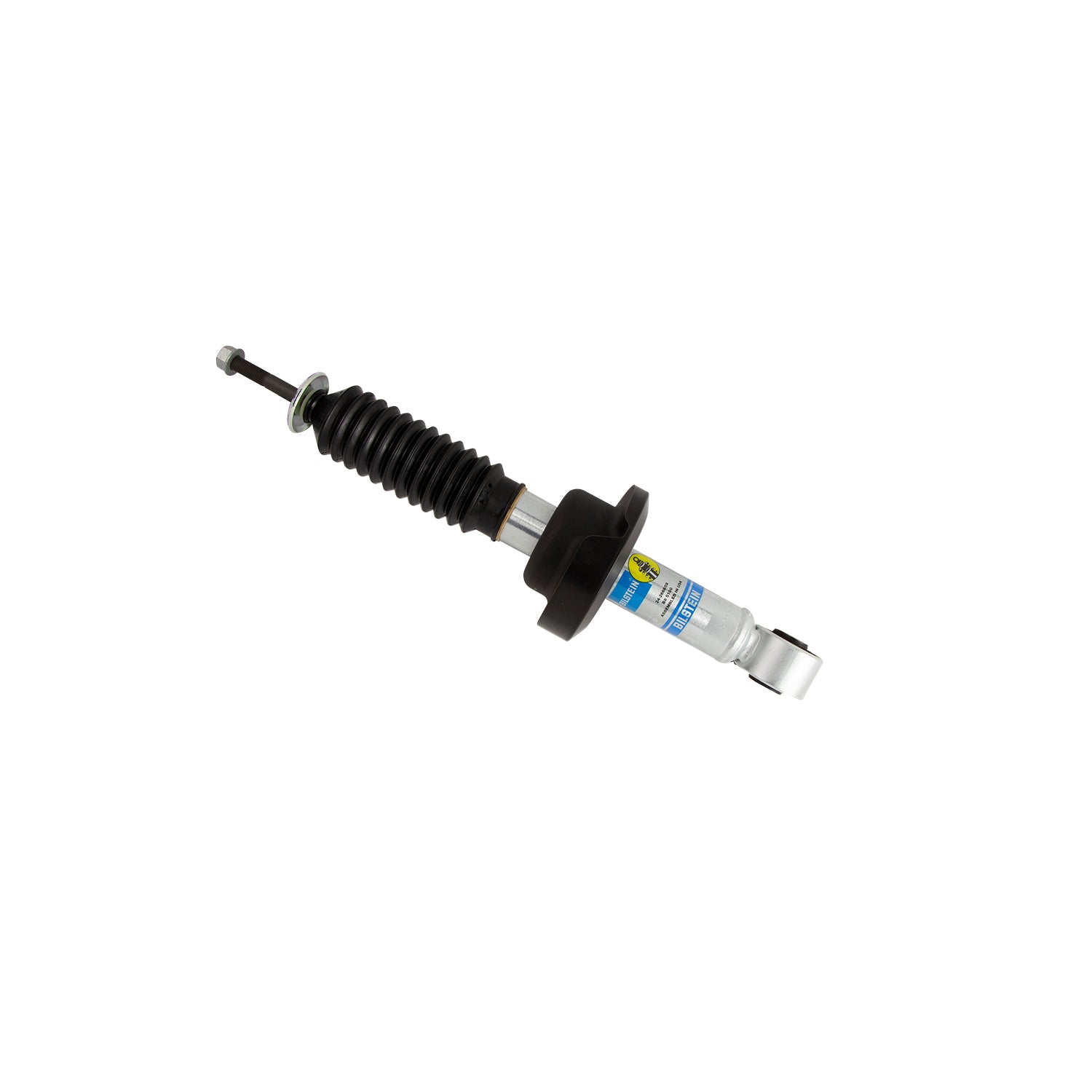

Bilstein 24-266659 - 46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features & Benefits
46mm monotube design ensures consistent fade-free performance in all conditions
Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift depending on the application

Additional Attributes
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:Black Bellows
Collapsed Length (IN):14.61
Collapsed Length (MM):371.2
Extended Length (IN):18.62
Extended Length (MM):473.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 16mm
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Shaft Diameter:14mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):5.15
Stroke/Travel Length (mm):130.8
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
