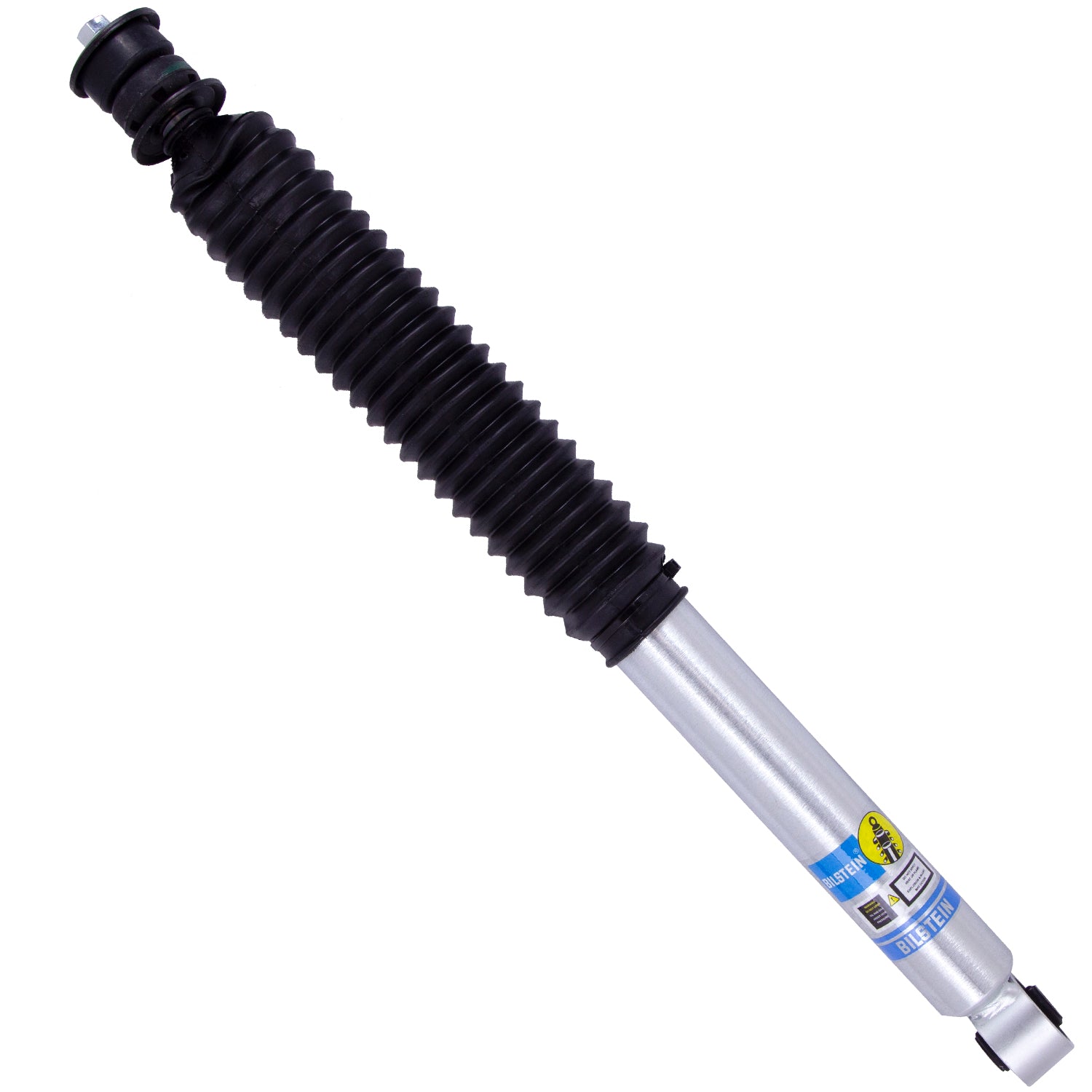

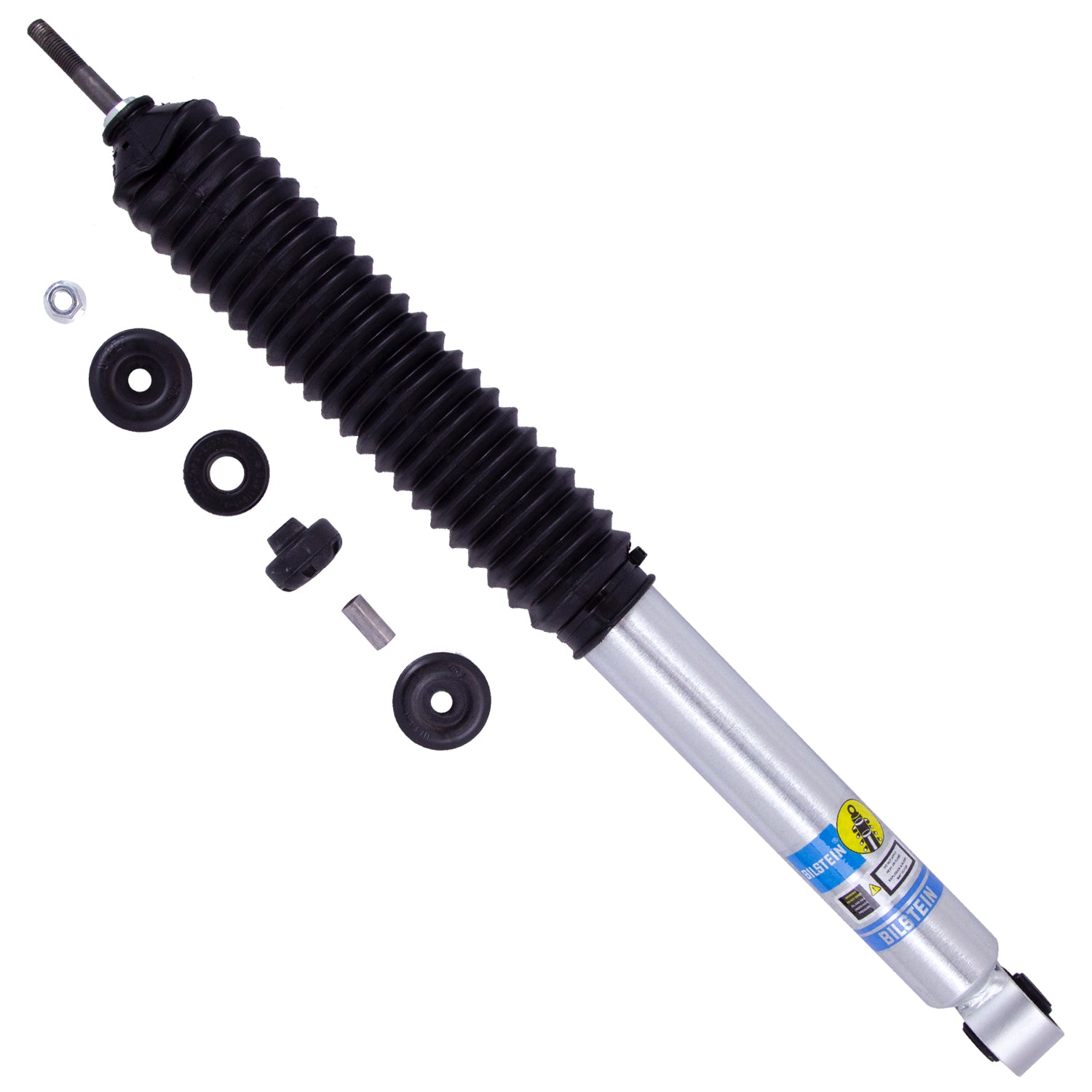

Bilstein 24-285674 - 46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.

Features & Benefits
46mm monotube design ensures consistent fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Additional Attributes
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-coilover)
Boot Included:Black Bellows
Collapsed Length (IN):16.57
Collapsed Length (MM):421.0
Extended Length (IN):25.47
Extended Length (MM):647.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100
Shaft Diameter:14mm
Spring Seat Included:No
Stroke/Travel Length (IN):8.90
Stroke/Travel Length (mm):226.1
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
