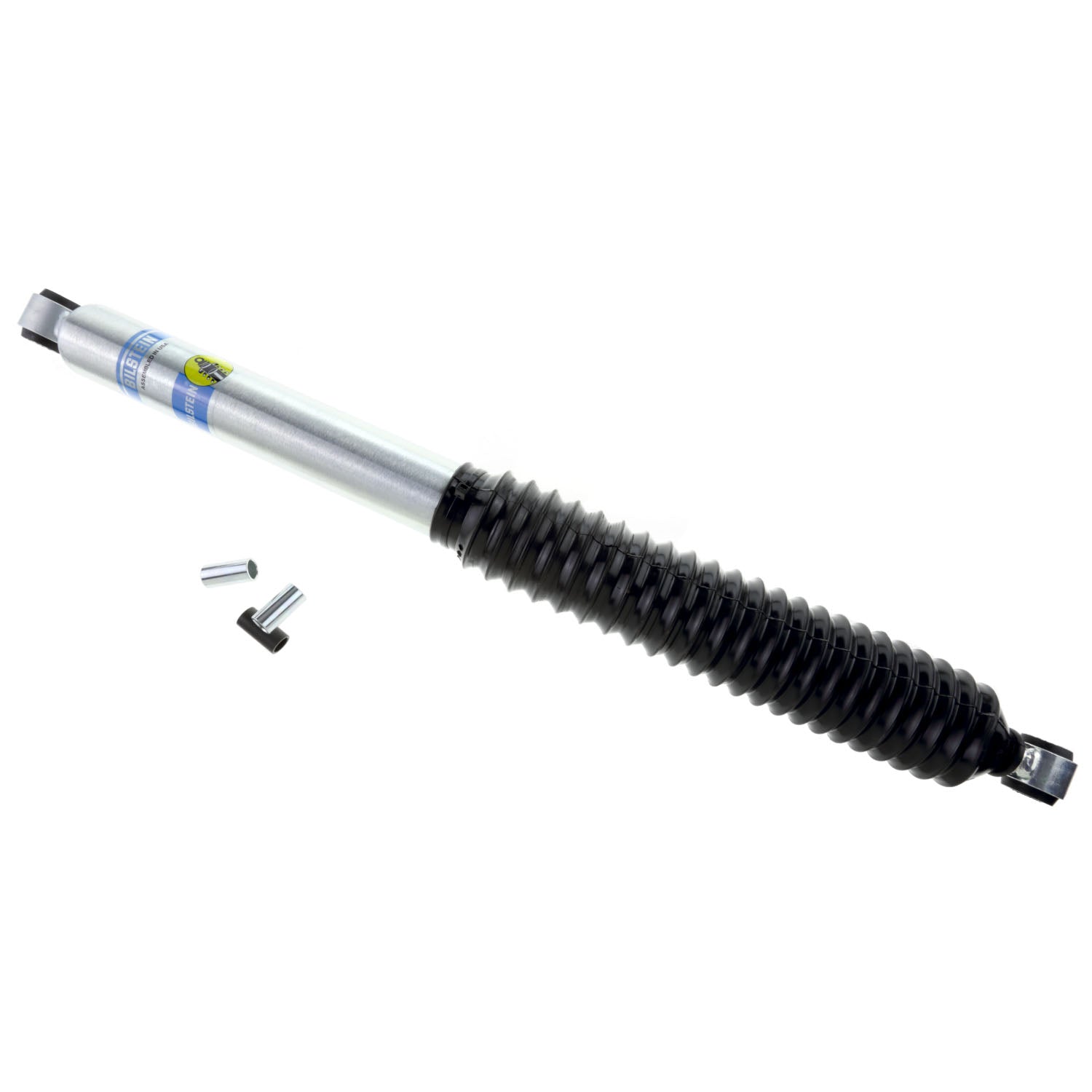

Bilstein 33-104652 - 46mm Monotube Shock Absorber

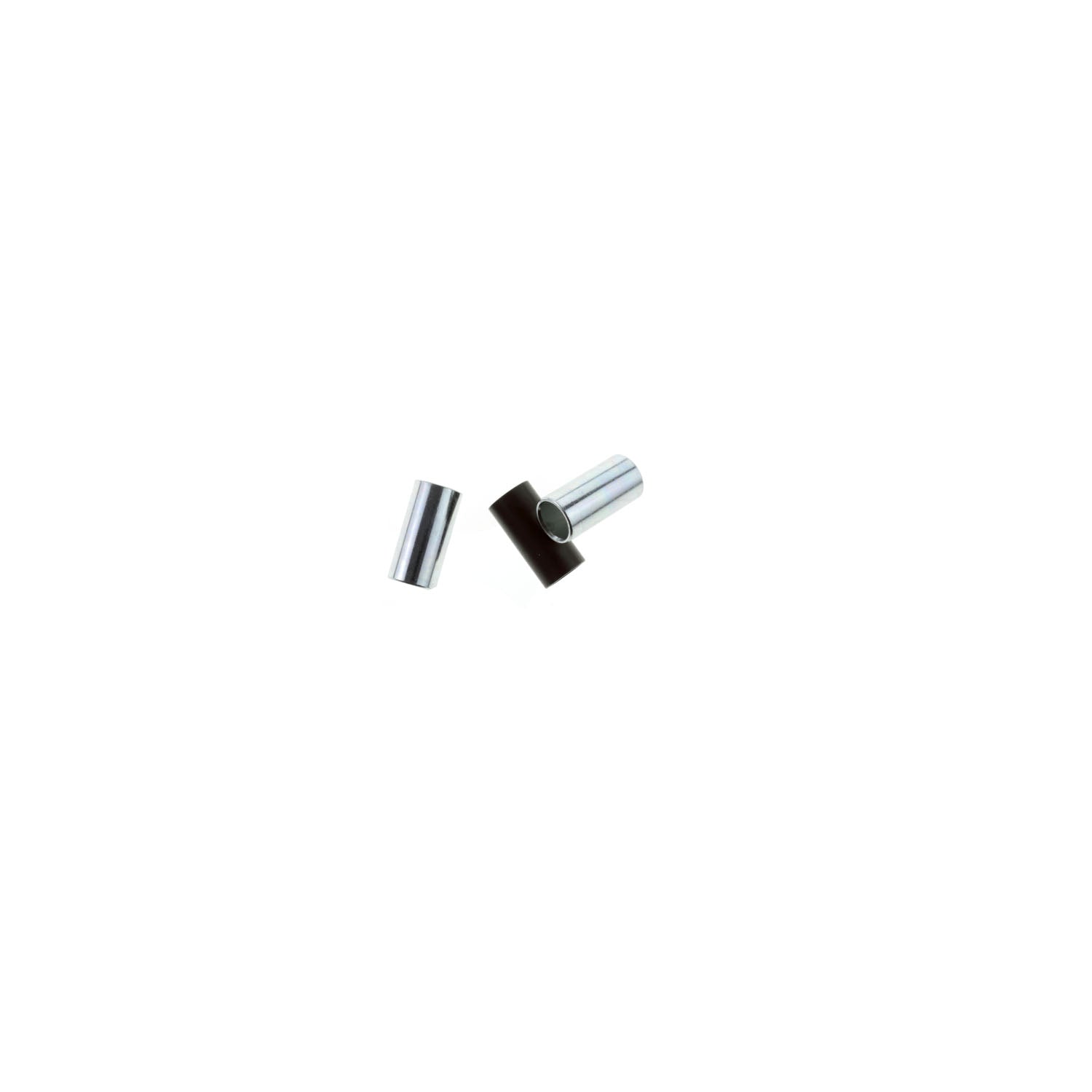

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Features & Benefits
46mm monotube design ensures consistent fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Additional Attributes
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-Coilover)
Boot Included:Black Bellows
Collapsed Length (IN):17.01
Collapsed Length (MM):432.0
Compression @0.52m/s:620
Extended Length (IN):28.00
Extended Length (MM):711.2
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 5/8in
Mount Type:Eye-to-Eye
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s:2495
Reservoir:No
Segment:Light Truck
Series:B8 5125
Shaft Diameter:14mm
Spring Seat Included:No
Stroke/Travel Length (IN):10.99
Stroke/Travel Length (mm):279.2
Title:Bilstein Shock Absorbers
Upper Mount Type:Eye 5/8in
