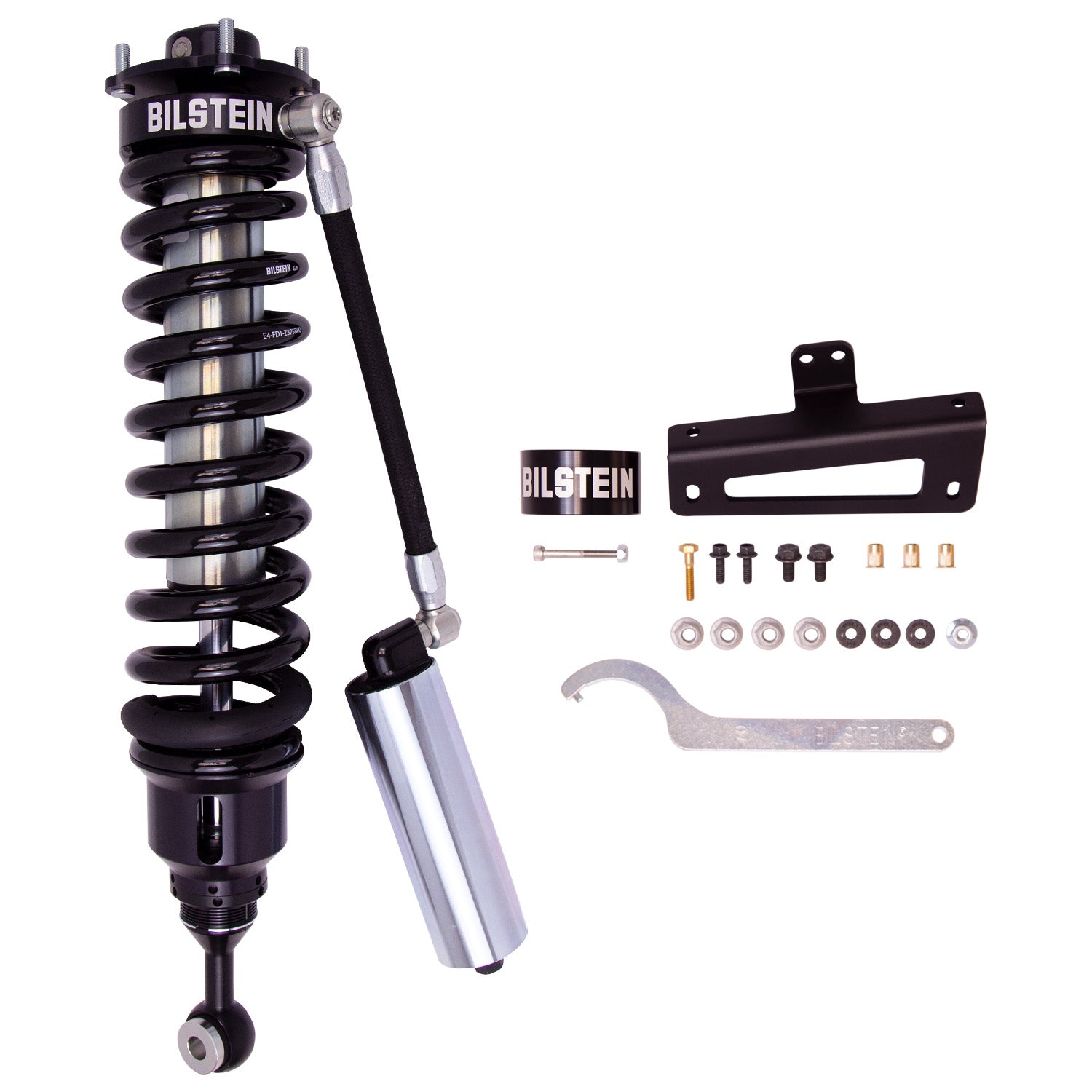

Bilstein 41-284544 - 60mm Front Left Corner Module

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Features & Benefits
ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
60mm remote reservoir for increased oil capacity and cooling

Additional Attributes
Adjustable Damping:Non-Adjustable
Aftermarket Upper Arms Required:Yes
Body Design:Smooth Body (Coilover)
Body Material:Steel
Boot Included:No
Collapsed Length (IN):19.43
Collapsed Length (MM):493.6
Extended Length (IN):25.79
Extended Length (MM):655.1
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):650 lbs
Internal Design:Monotube
Lower Mount Type:Eye 16.1mm
Optional Heavy Load Springs:N/A
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 8112 (ZoneControl CR)
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special
