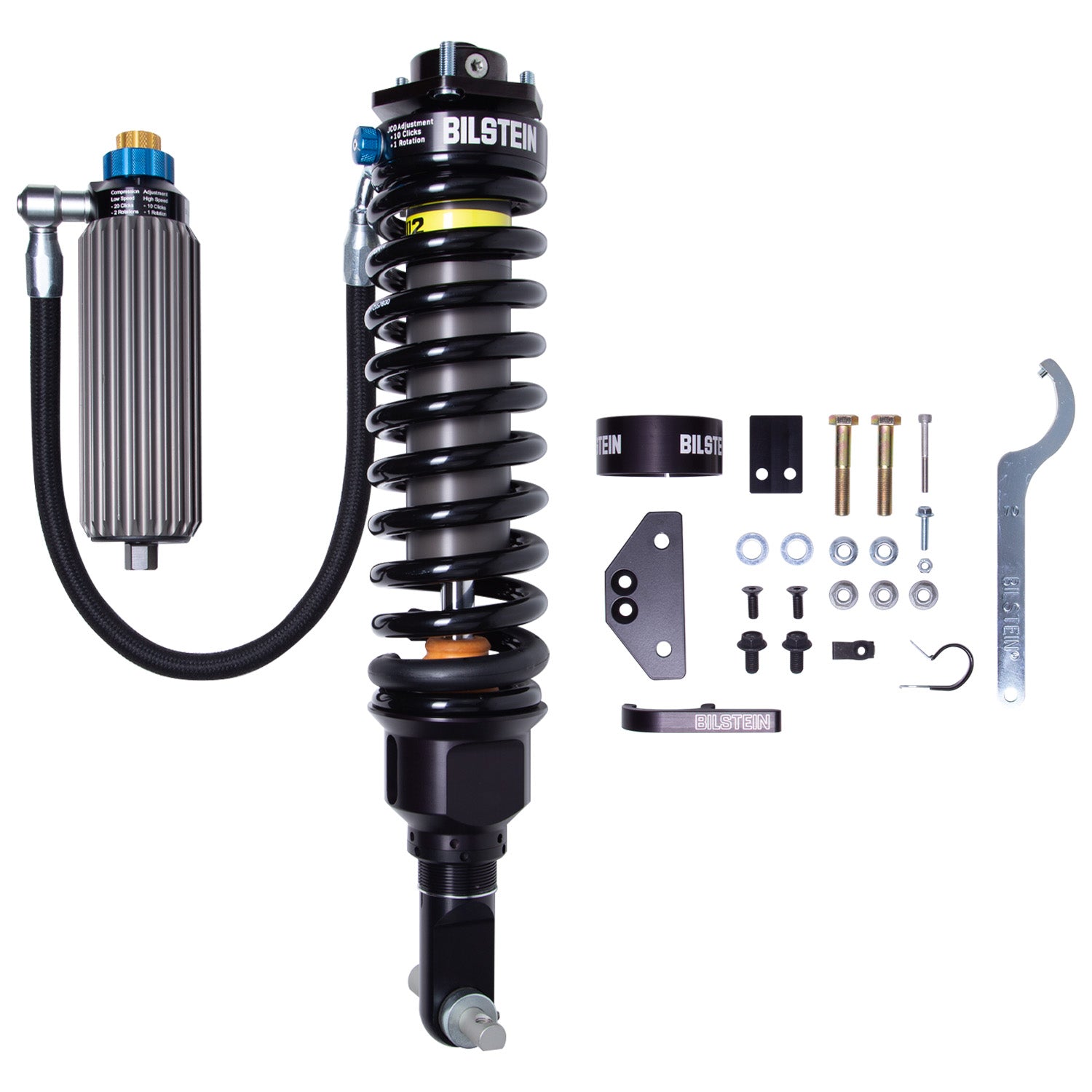

Bilstein 41-314319 - 60mm Front Left Corner Module

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads fully loaded or unloaded the B8 8112 Black Hawk offers the “best in class” ride experience.

Features & Benefits
Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop

Additional Attributes
Adjustable Damping:Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required:Yes
Body Design:Smooth Body (Coilover)
Body Material:Aluminum
Boot Included:No
Collapsed Length (IN):17.59
Collapsed Length (MM):446.2
Extended Length (IN):23.40
Extended Length (MM):594.7
Finish:Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in):400
Internal Design:Monotube
Lower Mount Type:Crossbar
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov

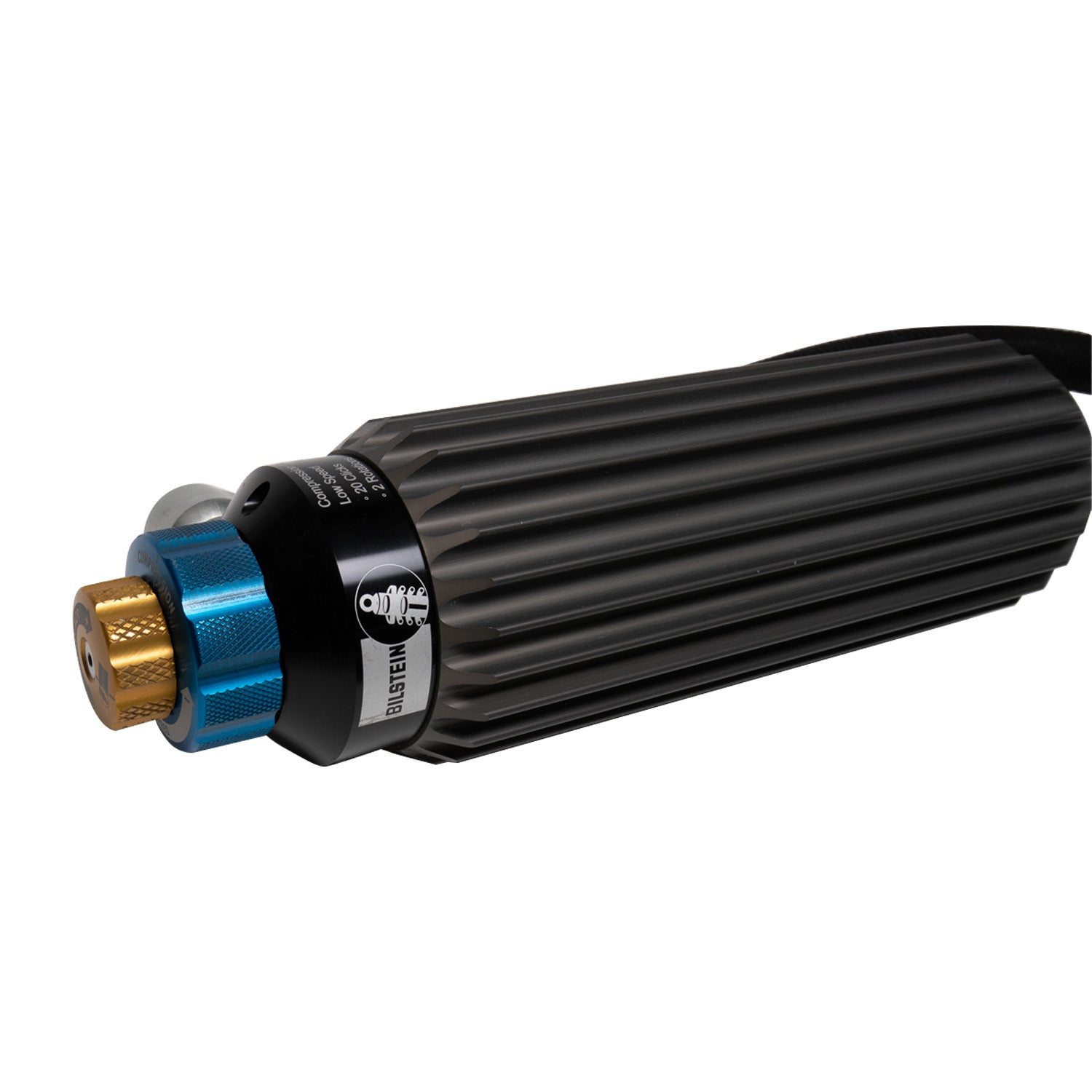

Reservoir:Yes - Finned Aluminum
Segment:Light Truck
Series:B8 8112 Black Hawk
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special
