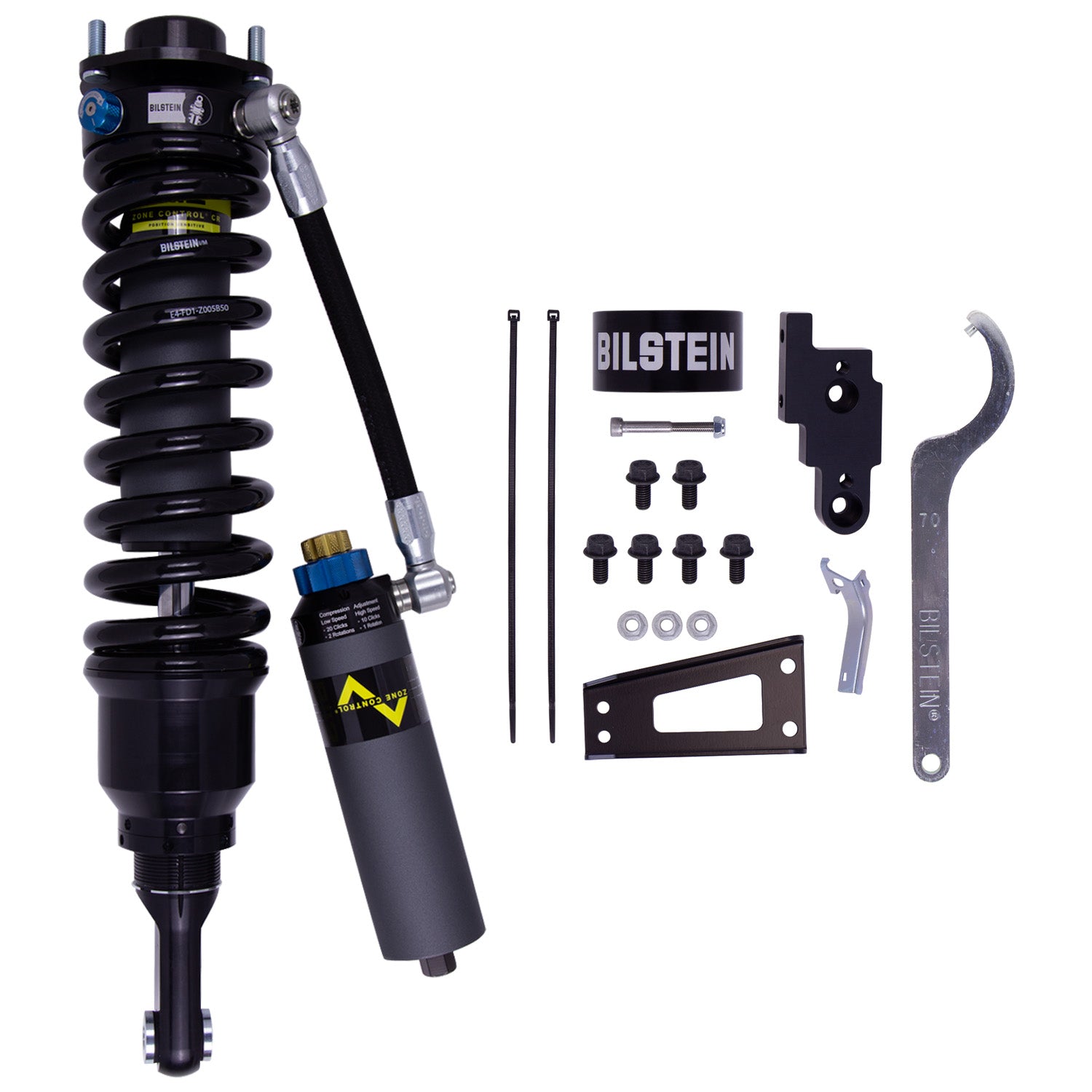

Bilstein 41-319581 - 60mm Front Right Corner Module

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

Features & Benefits
ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
60mm remote reservoir for increased oil capacity and cooling

Additional Attributes
Adjustable Damping:Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required:Yes
Body Design:Smooth Body (Coilover)
Body Material:Steel
Boot Included:No
Collapsed Length (IN):17.42
Collapsed Length (MM):442.6
Extended Length (IN):22.39
Extended Length (MM):568.8
Finish:Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in):600 lbs
Internal Design:Monotube
Lower Mount Type:Eye 15.88mm
Optional Heavy Load Springs:53-291387 53-332837
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 8112 (ZoneControl CR DSA+)
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special
