Bilstein 47-325593 - Rear Suspension Kit

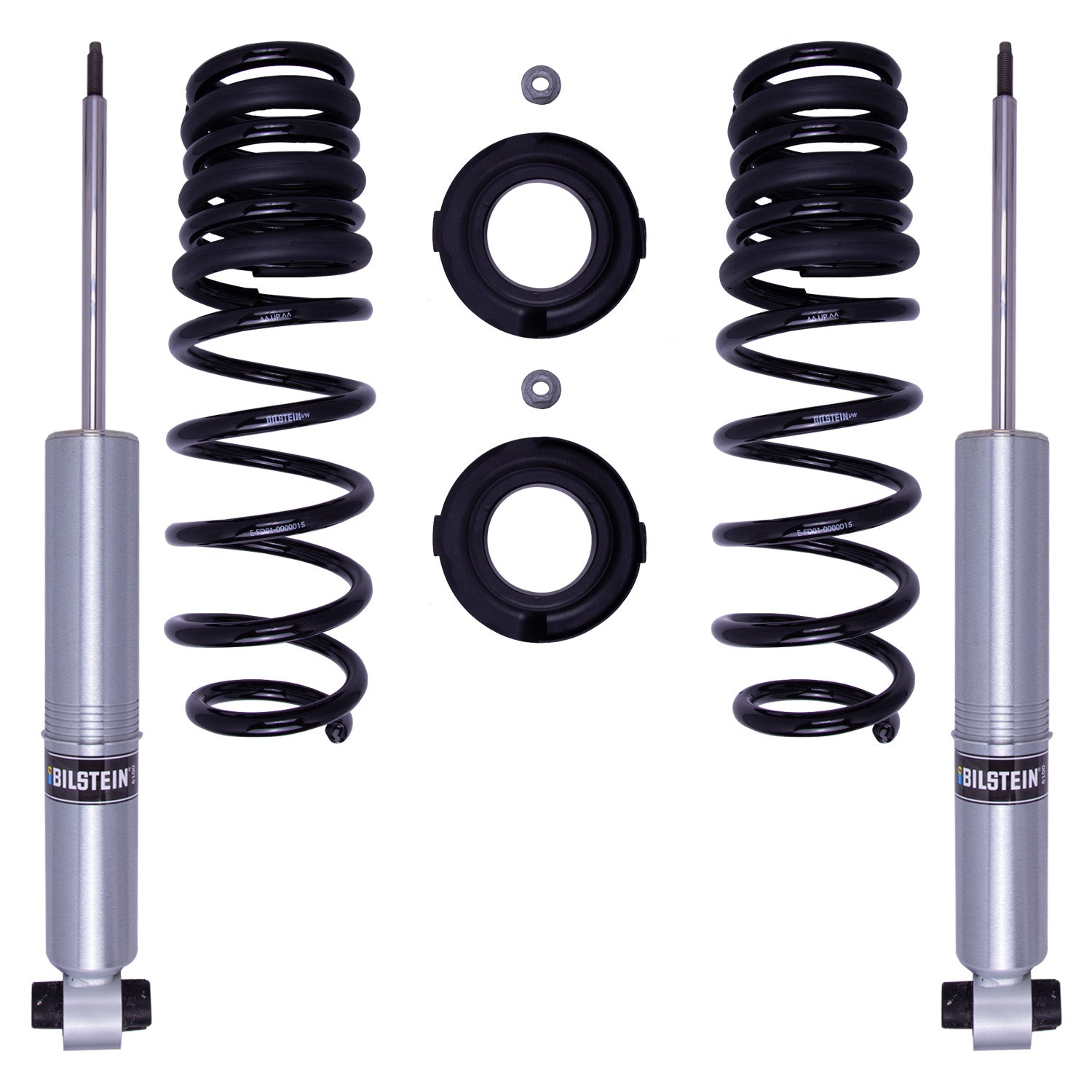

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Features & Benefits
Large 60mm body for increased oil capacity cooling and long-term durability
60mm digressive piston improves ride comfort and control over rough terrain
Vehicle specific tuning

Additional Attributes
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):17.11
Collapsed Length (mm):434.6
Extended Length (IN):25.56
Extended Length (mm):649.3
Finish:Dampers: Zinc Plated/Springs: Black
Internal Design:Monotube
PartType:Suspension Kit
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rear Main Spring Rate (lbs/in):288
Reservoir:No
Segment:Light Truck
Series:B8 6112
Shaft Diameter:18mm

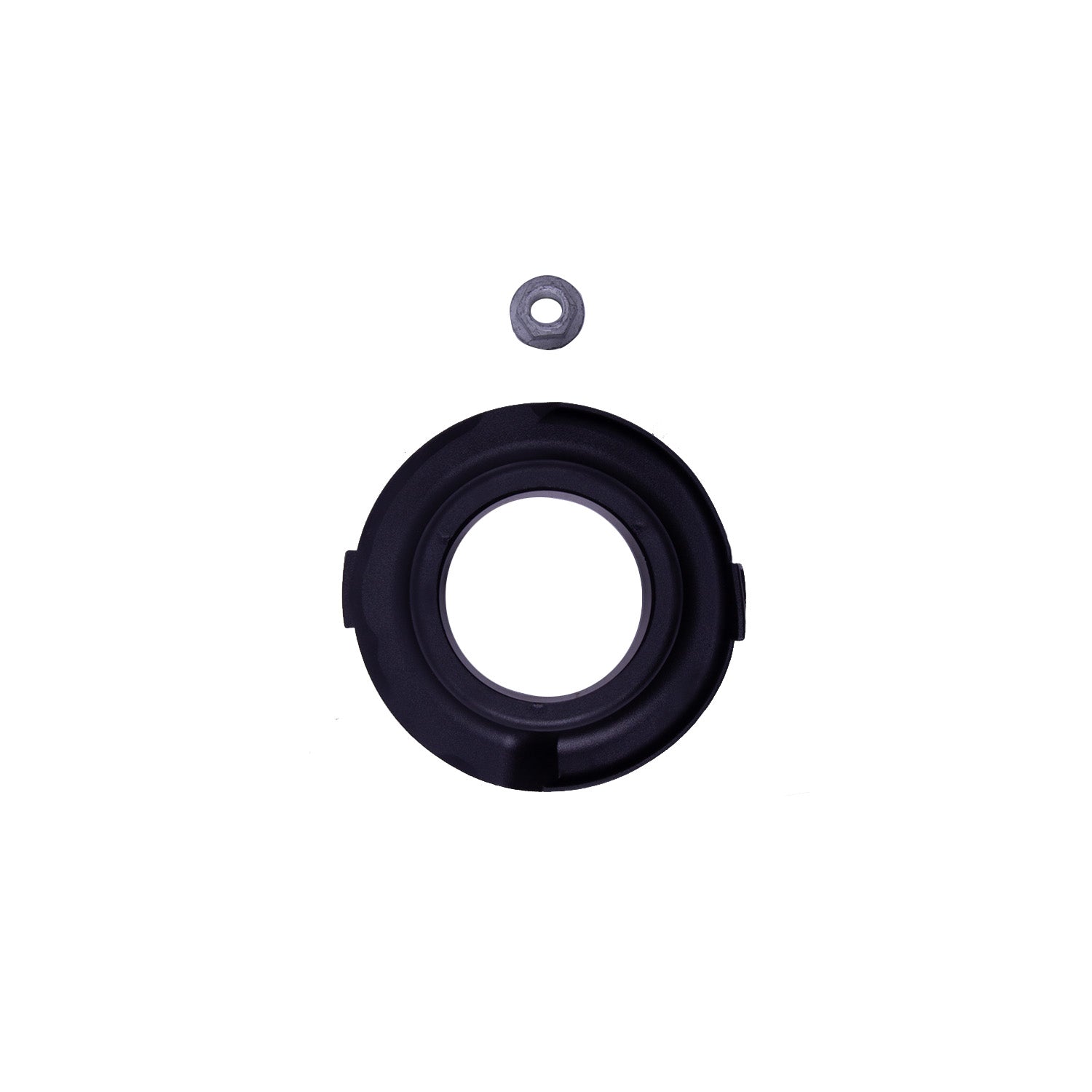

Spring Seat Included:Yes
Stroke/Travel Length (IN):8.45
Stroke/Travel Length (mm):214.7
Title:Bilstein Shock Absorbers
