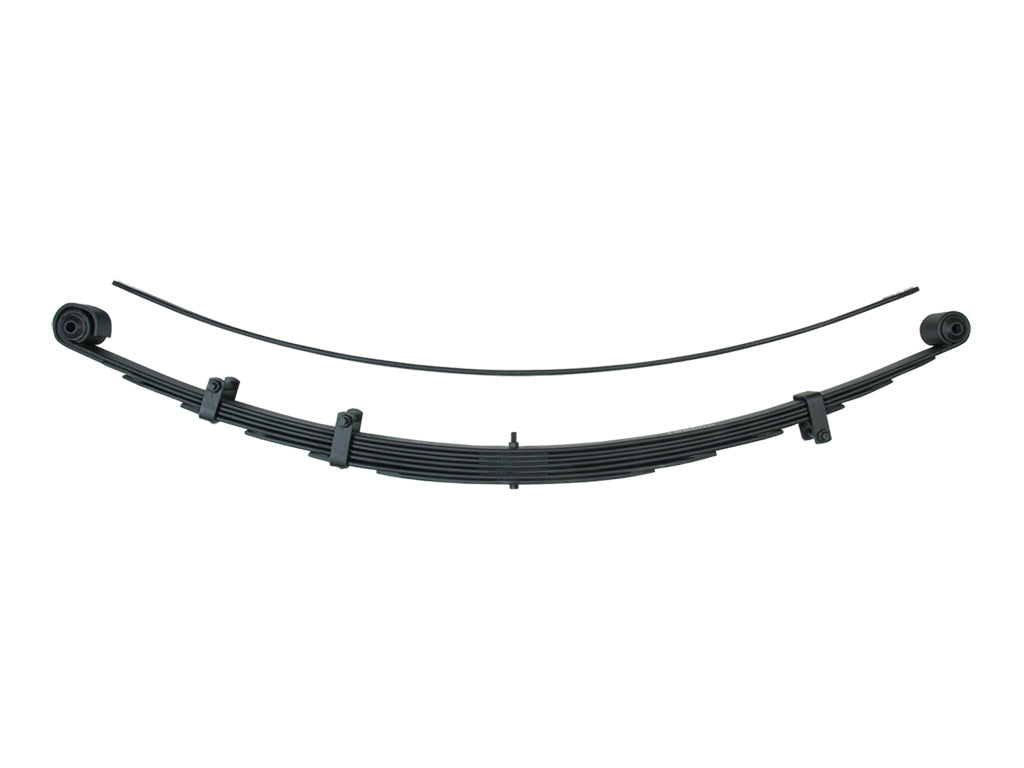

ICON Vehicle Dynamics 158505 - 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN L

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.

Features & Benefits
3 user-adjustable spring rates for unique vehicle configurations
Military wrap front eyelet for increased durability
Galvanized leaf separators reduce friction and aid in corrosion resistance
Leaf tip inserts reduce noise and increase ride comfort

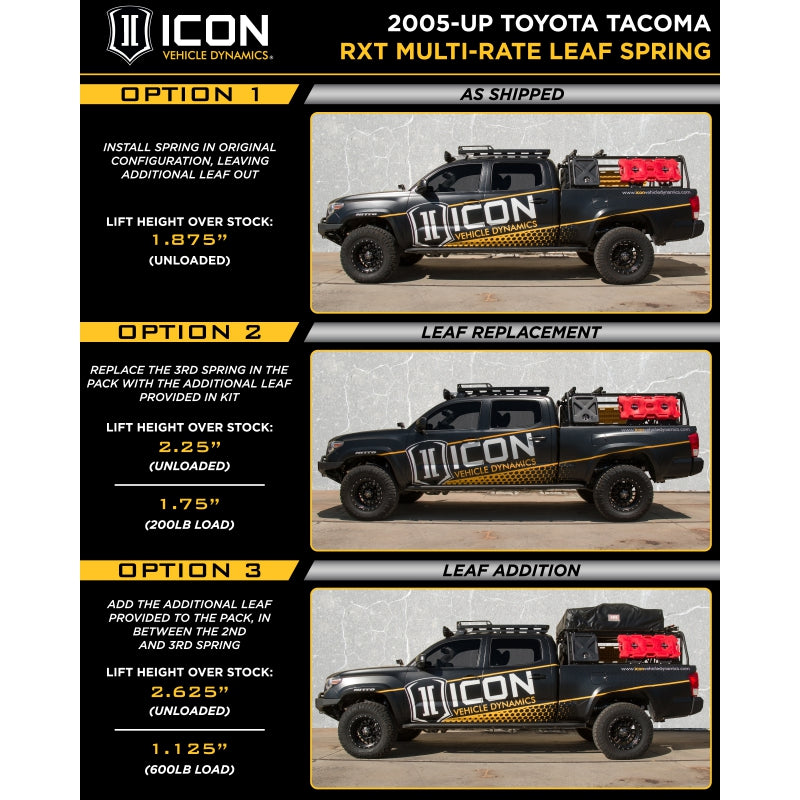

Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Direct bolt-in to OEM spring location makes for an easy install

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 52050 - TOYOTA REAR 8.0" U-BOLT KIT
Axle Modification Needed: No
Axle Orientation: Rear
Bushing Color: Black
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Black
Grade Type: Performance
Helper Spring: No
Leaf Quantity: 8
Material: Steel
Maximum Lift: 2.625
Mounting Hardware Included: Yes
Suspension Grade Type: Performance
Title: ICON 2005-2023 Toyota Tacoma, Multi Rate RXT Leaf Spring Pack w/Add In Leaf
U Bolts Included: No
