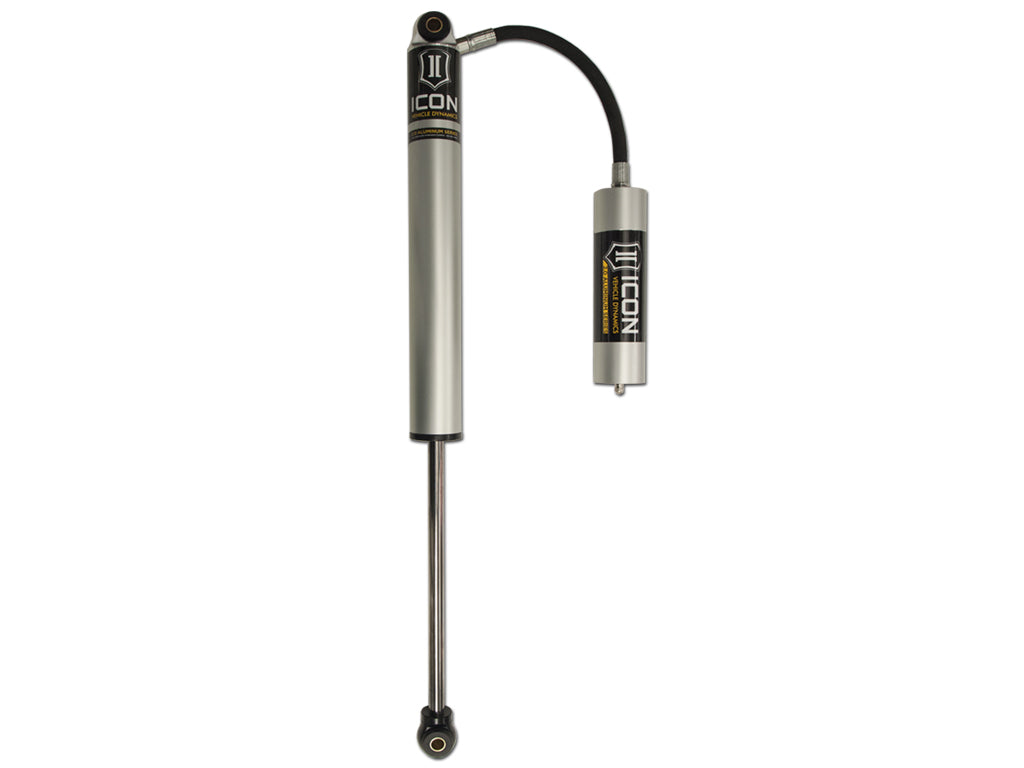

ICON Vehicle Dynamics 206514R - UNIVERSAL 13" TRAVEL 2.0 RR HDRV

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Features & Benefits
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
Application-specific reservoir mounting hardware
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Damping: No
Body Color: Gray
Body Diameter: 2
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Compressed Length: 17.98
Cylinder Color: Grey
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
Dust Shield Included: No
Extended Length: 31.8
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Lower Mount Type: EYELET
Material: Steel
Material: Aluminum
Mounting Hardware Included: No
Mounting Width: 1.5" x 1/2" Bolt (Upper&Lower)
Remote Reservoir: Yes
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Stroke: 13.82
Title: ICON Universal 2.0 Aluminum Series Rear Shock, Remote Reservoir, HD Valving, 13” Travel
Travel Length: 13.82
Upper Mount Type: EYELET
