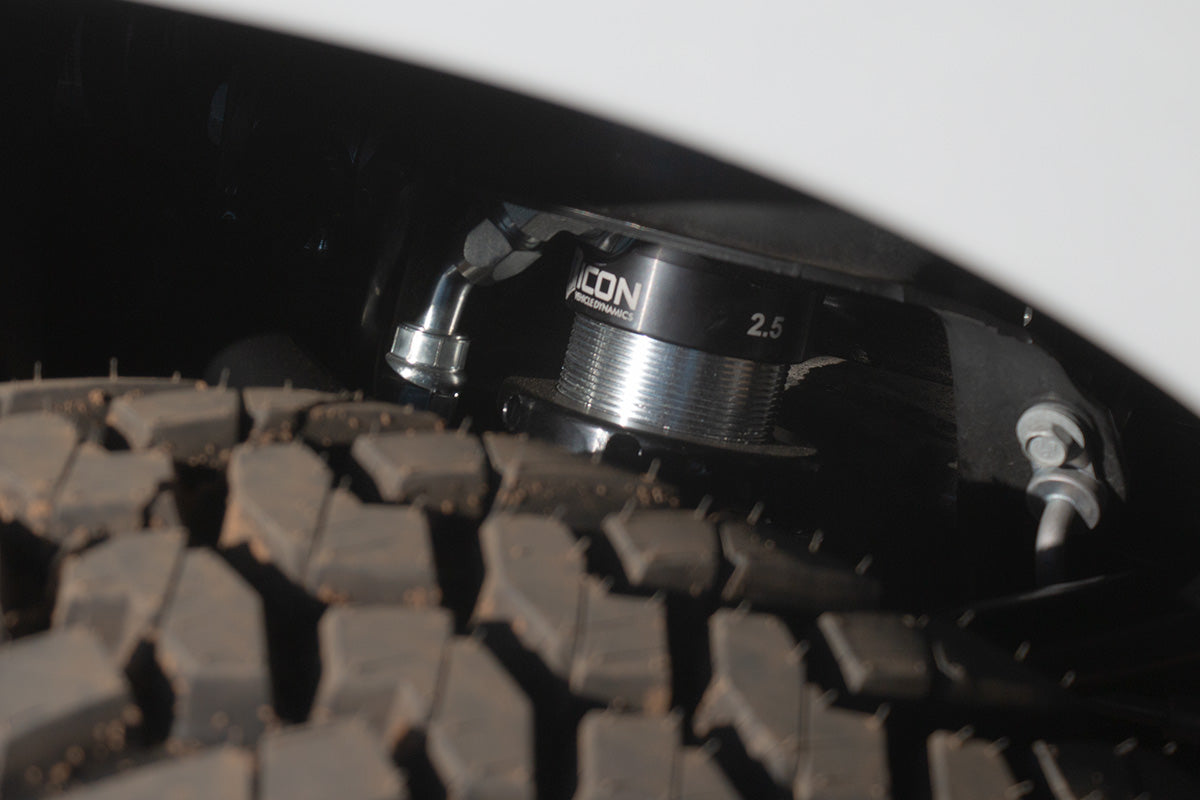

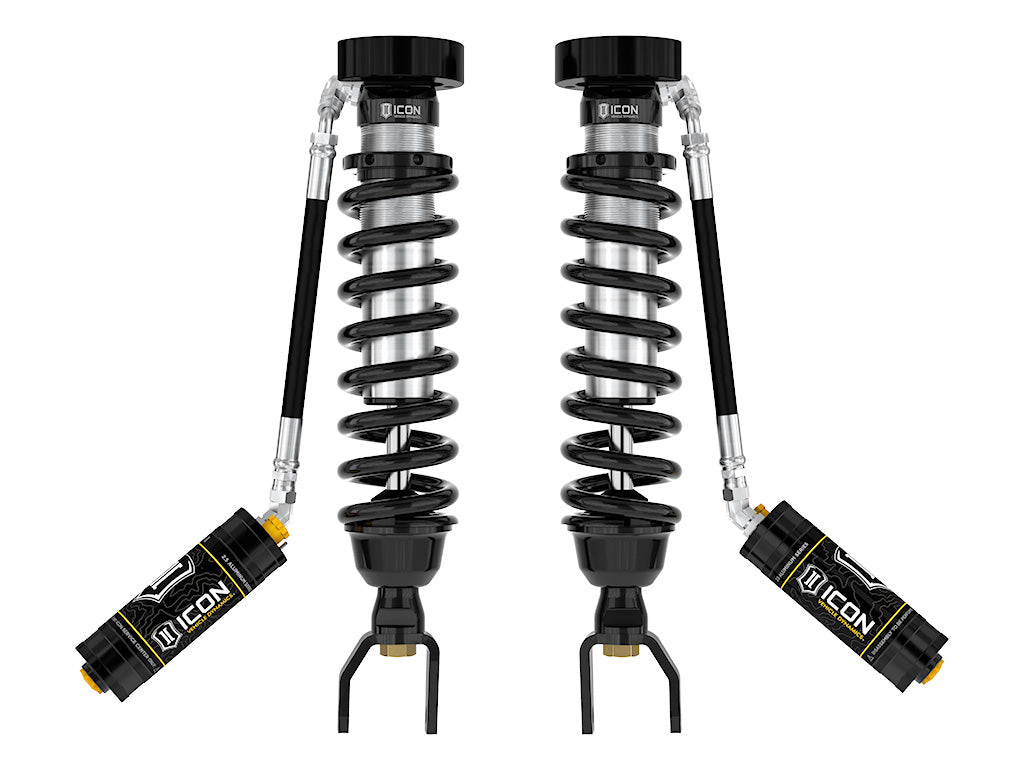

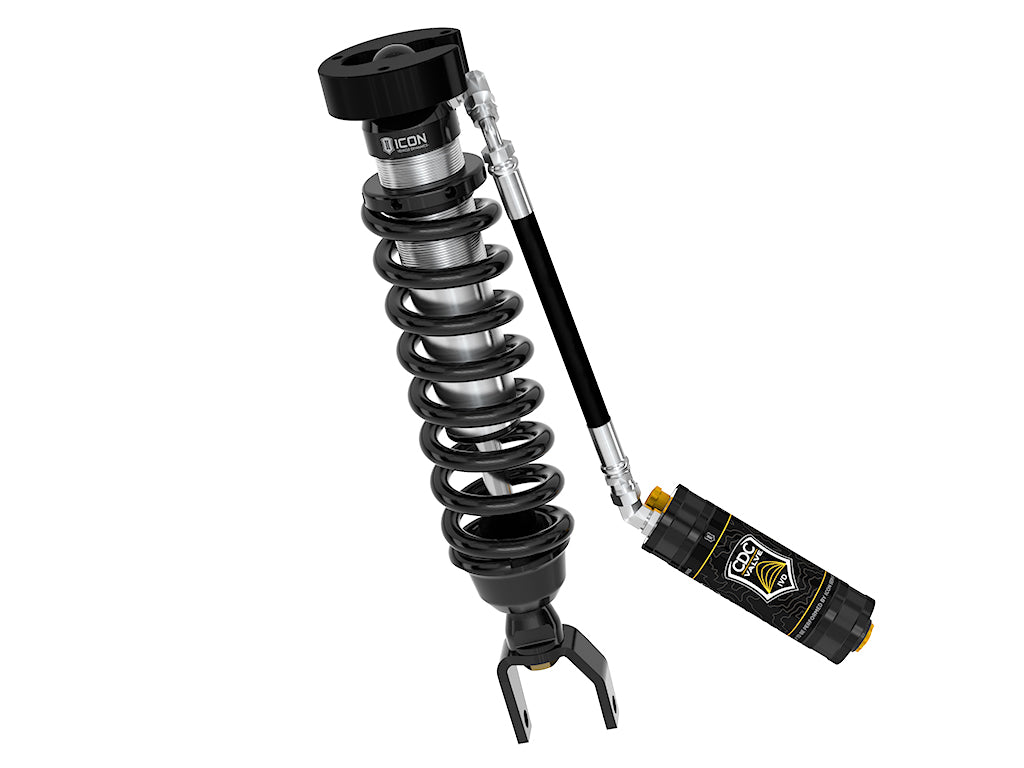

ICON Vehicle Dynamics 211015C - 19-23 RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Features & Benefits
Increased wheel travel and ride quality over stock
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
High strength alloy CNC machined lower mounting clevis
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on - no drilling, cutting or welding necessary for installation
Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
Vehicle specific tuned for superior shock damping and control
Adjustable from 2-3" of front lift height over stock
Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
ICON CDCV equipped for external tuneability of your shocks

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

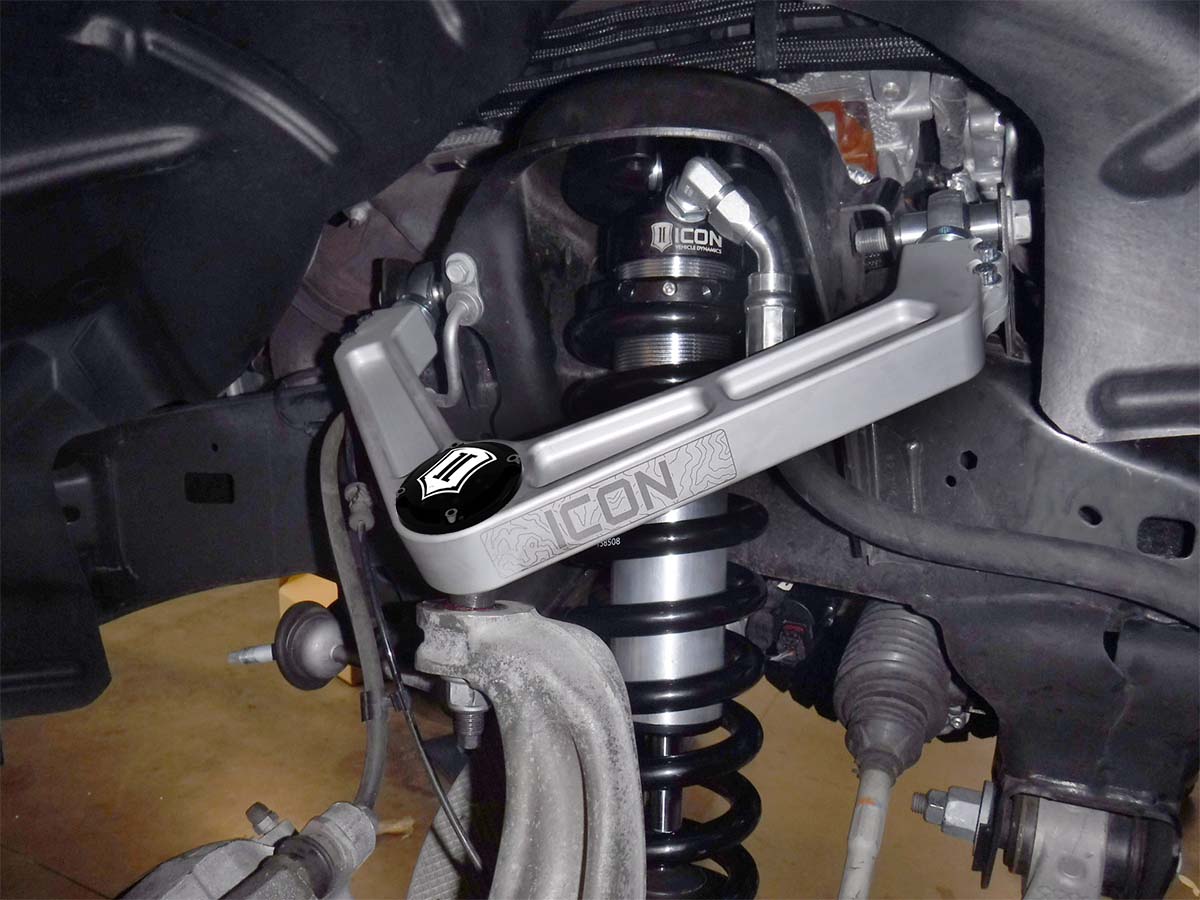

Add-On Part: 218560DJ - 19-23 RAM 1500 BILLET UCA DJ KIT
Add-On Part: 218550DJ - 09-23 RAM 1500 TUBULAR UCA DJ KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 217716CP - 19-23 RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 18.04
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.77
Front Spring Rate: 700
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Clevis
Material: Steel
Material: Aluminum
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Clevis Holes
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV
Travel Length: 5.73
Upper Mount Type: Mounting Plate
Valving Type: Digressive
