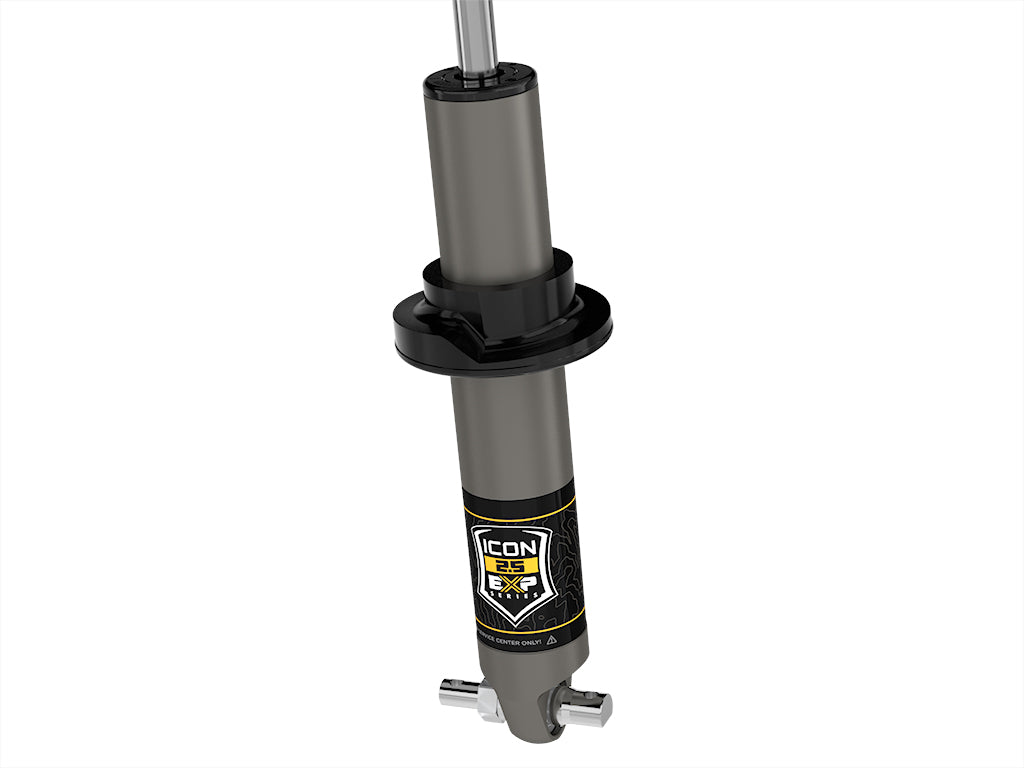

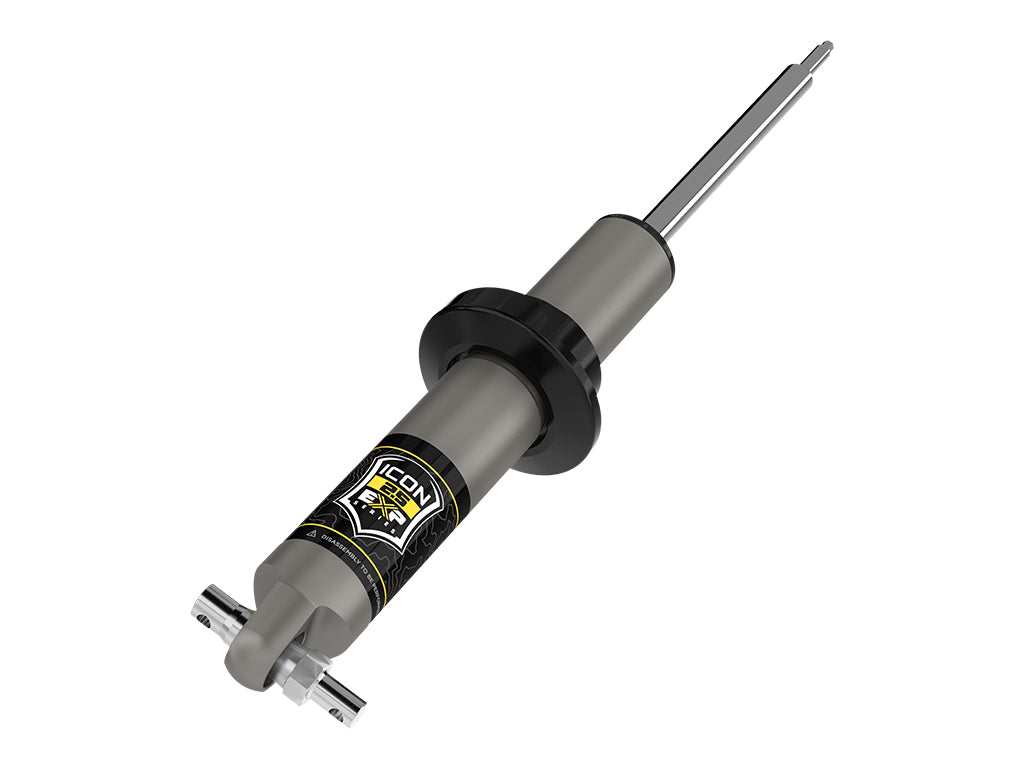

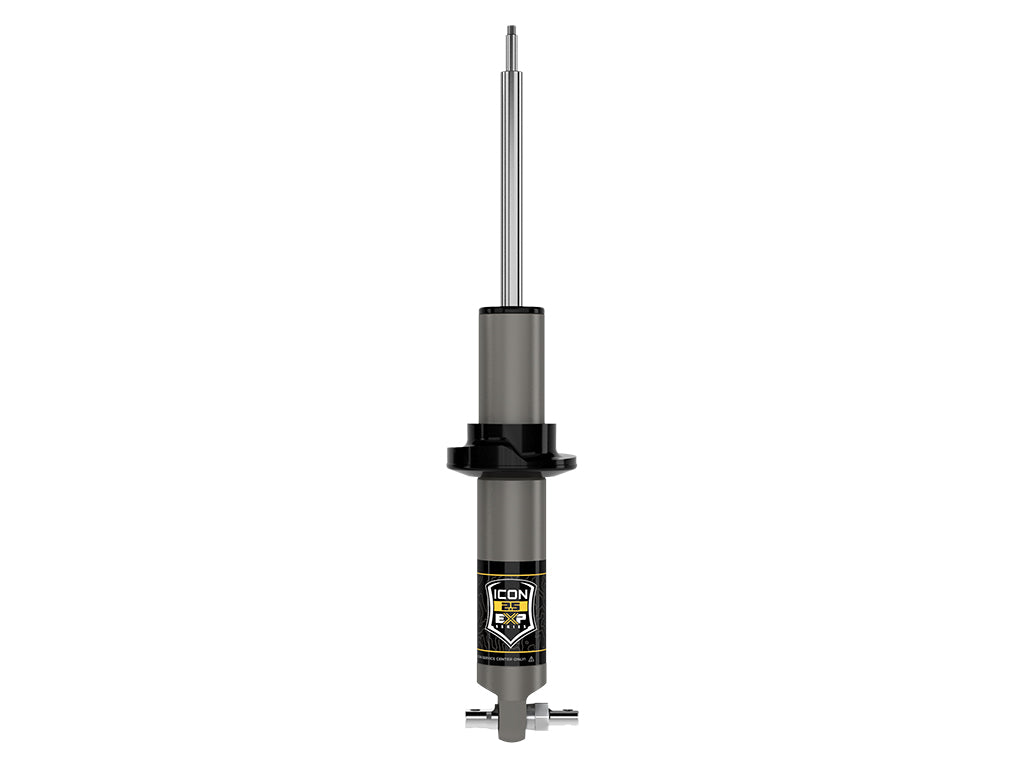

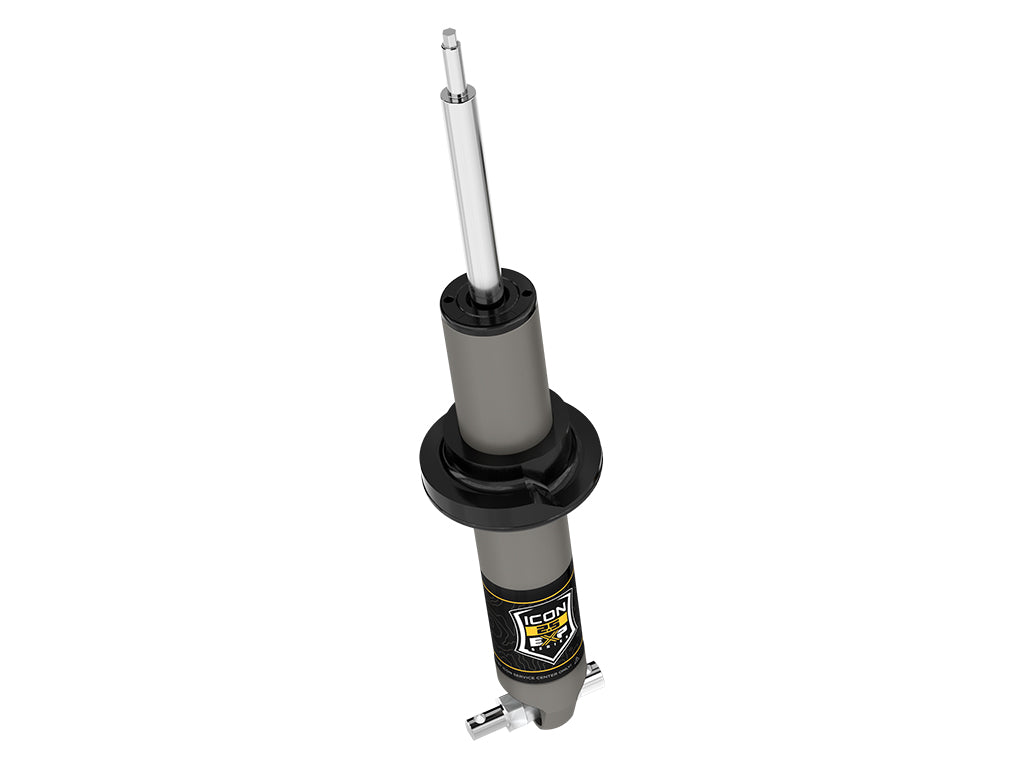

ICON Vehicle Dynamics 48601 - 21-23 BRONCO HOSS 1.0 PKG 2.5 FRONT EXP COILOVER

The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 1.375" to 3” of lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.

Features & Benefits
Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
Vehicle specific tuned for superior shock damping and control
2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 1.375-3” of front lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 45212 - 21-23 BRONCO XD TIE ROD KIT
Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
Add-On Part: 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT
Add-On Part: 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT
Add-On Part: 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: No
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: No
Coil Spring Included: No
Coil Spring Insulator(s) Included: No
Compressed Length: 16.93
Cylinder Color: Gray
Cylinder Finish: Hard Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2.5
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.5
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 1.375
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Flat on Bar Pin
Shock Absorber Rod End Measuring Point: Shoulder of Stem
Title: ICON 2021-2023 Ford Bronco, Hoss 1.0 Pkg, Front, 1.375-3” Lift, 2.5 EXP Series Coilover
Travel Length: 6.57
Upper Mount Type: Stem
Valving Type: Digressive
