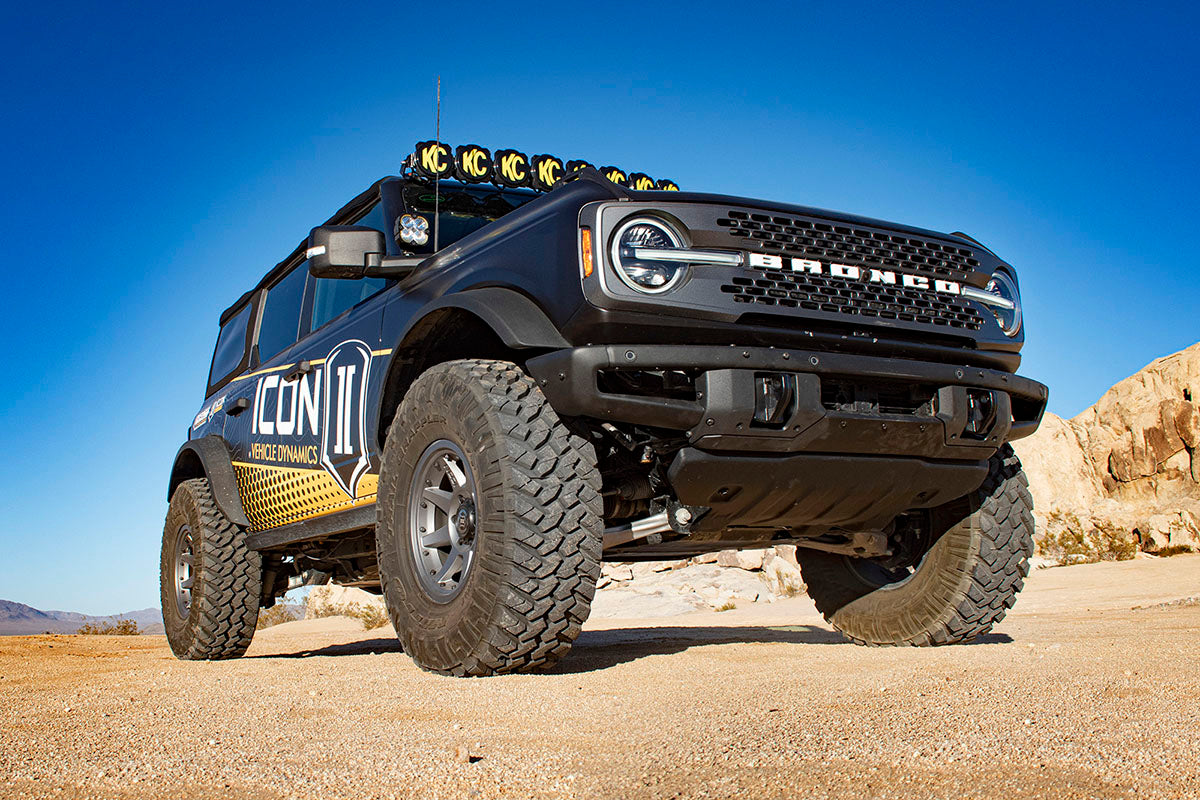

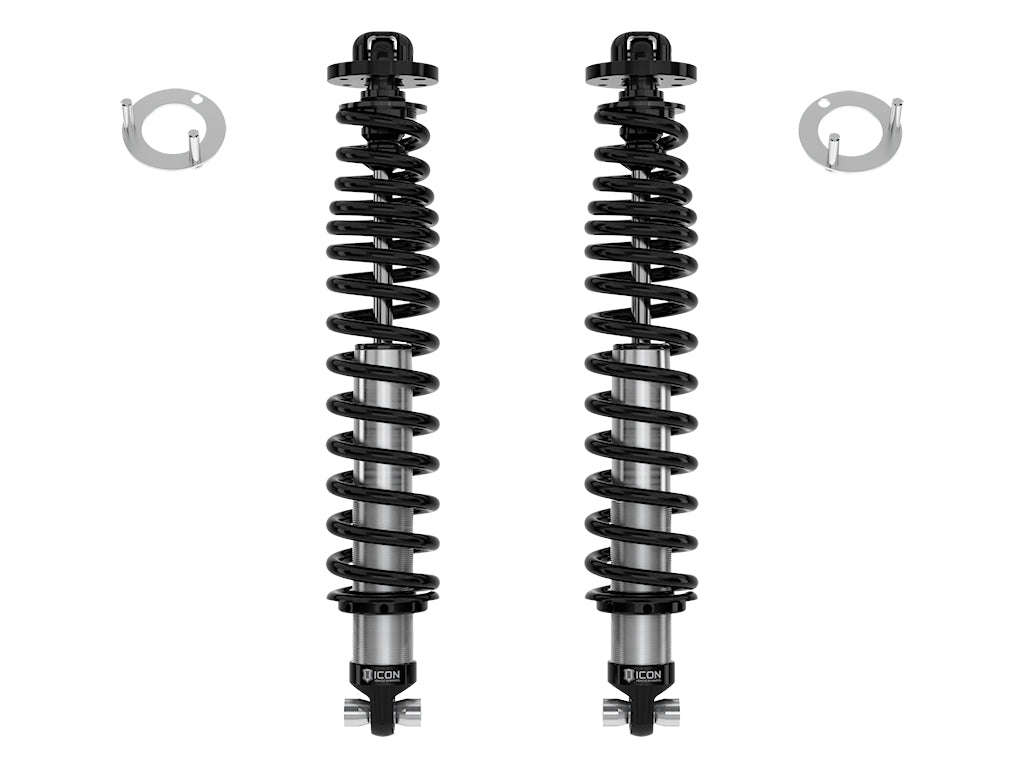

ICON Vehicle Dynamics 48613 - 21-23 BRONCO REAR 2.5 VS IR COILOVER KIT HEAVY RAT

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features & Benefits
Increased wheel travel (up to 14”) and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos

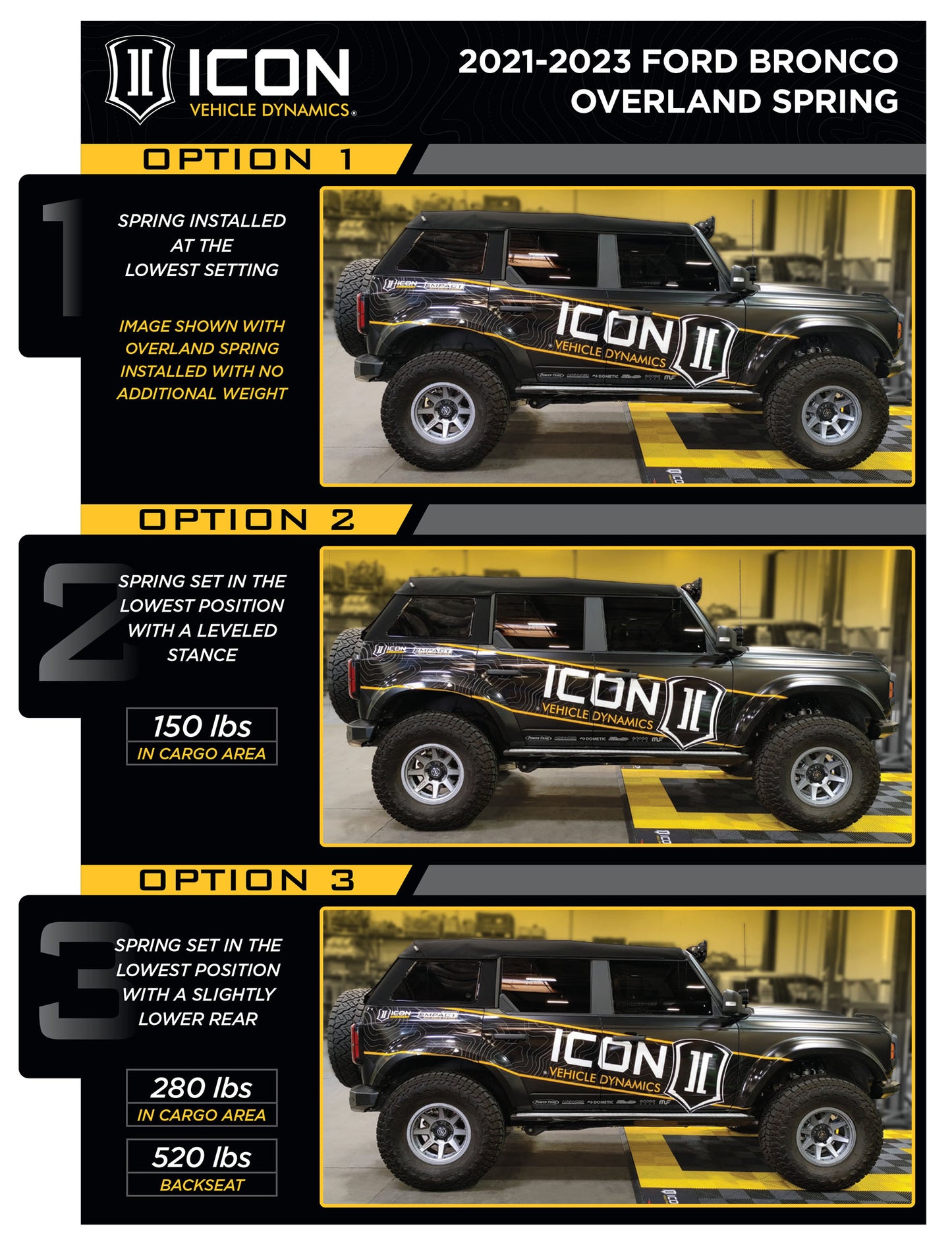

Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on - no drilling, cutting or welding necessary for installation

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
Adjustable Compression: No
Adjustable Height: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 19.24
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 29.31
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate: 220
Rear Spring Rate: 300
Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Top of Mounting Plate
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Progressive Dual Rate
Title: ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Internal Reservoir, Heavy Rate Spring
Travel Length: 10.07
Upper Mount Type: Mounting Plate
Valving Type: Digressive
