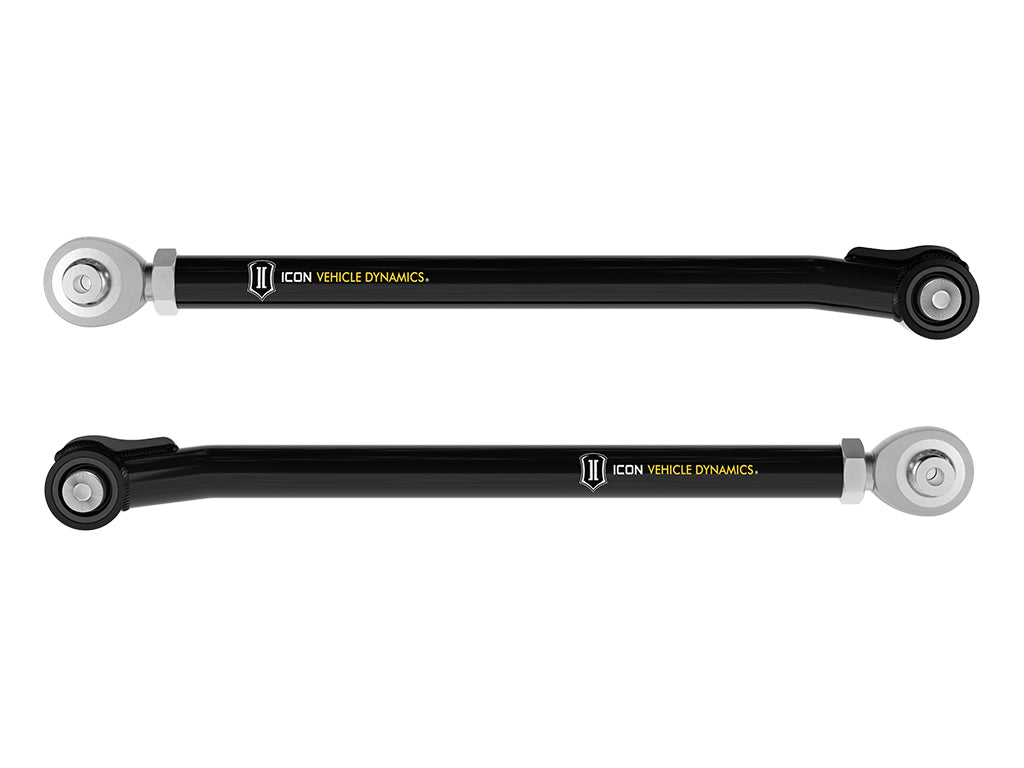

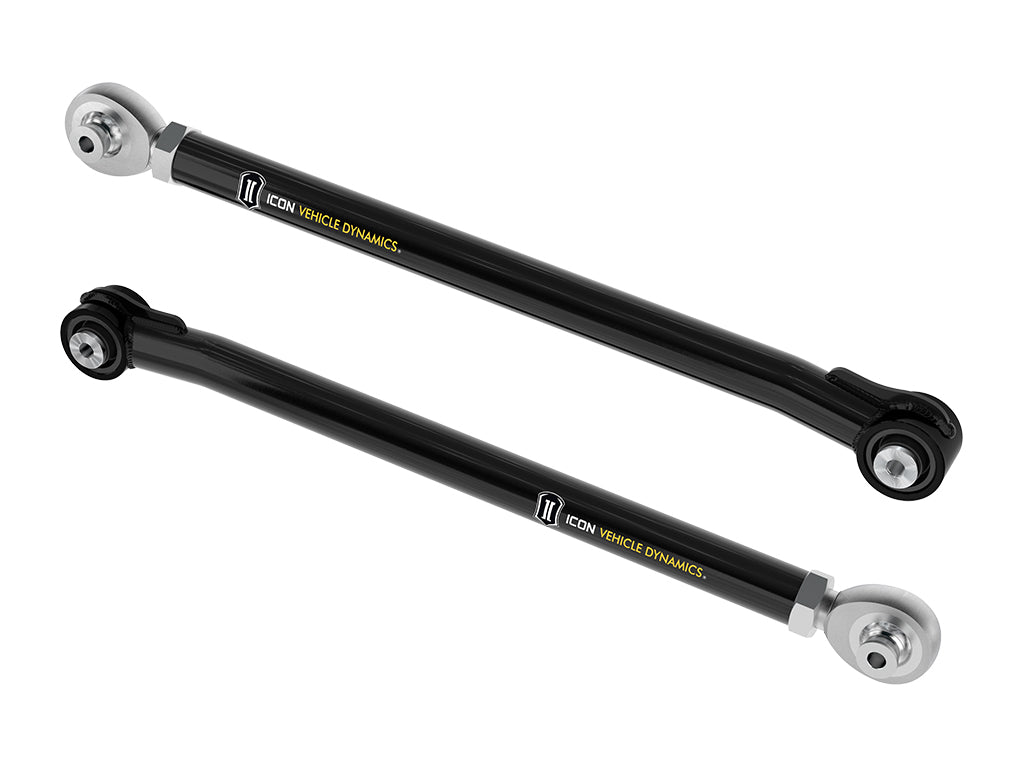

ICON Vehicle Dynamics 54002T - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR R

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Features & Benefits
Adjustable for various lift heights & driveline angles
Help free rear suspension bind compared to OE links
High clearance Lower Link design for reduced contact with obstacles
CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
Multi durometer bushings for noise free operation and maximum angularity
No grease required for life of bushings
Quality JM16T PTFE-lined FK Rod Ends
Fabricated components covered under ICON's Limited Lifetime Warranty

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 54102T - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KIT
Adjustable: Yes
Adjustable Control Arm: yes
Attachments Included: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Thread in
Ball Joint Stud Type: Threaded
Bushing Color: Silver
Bushing Color: Black
Bushing Material: Polyurethane
Bushing Material: Rod End Bearing
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Black
Construction: Tubular
Control Arm Color: Black
Control Arm Construction: Tubular
Control Arm Material: DOM Steel
End 1 Type: Rod End Bearing
End 2 Type: Bushing
Finish: Powdercoated
Grade Type: Performance
Grease Fitting Included: No
Material: Steel
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Pre-Assembled: Yes
Pre-Greased: No
Quantity: Pair
Reinforced: Yes
Set: Yes
Suspension Grade Type: Performance
Suspension Type: Spring
Suspension Type: Air
Title: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Tubular Lower Link Kit
