ICON Vehicle Dynamics 56502R - 96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR

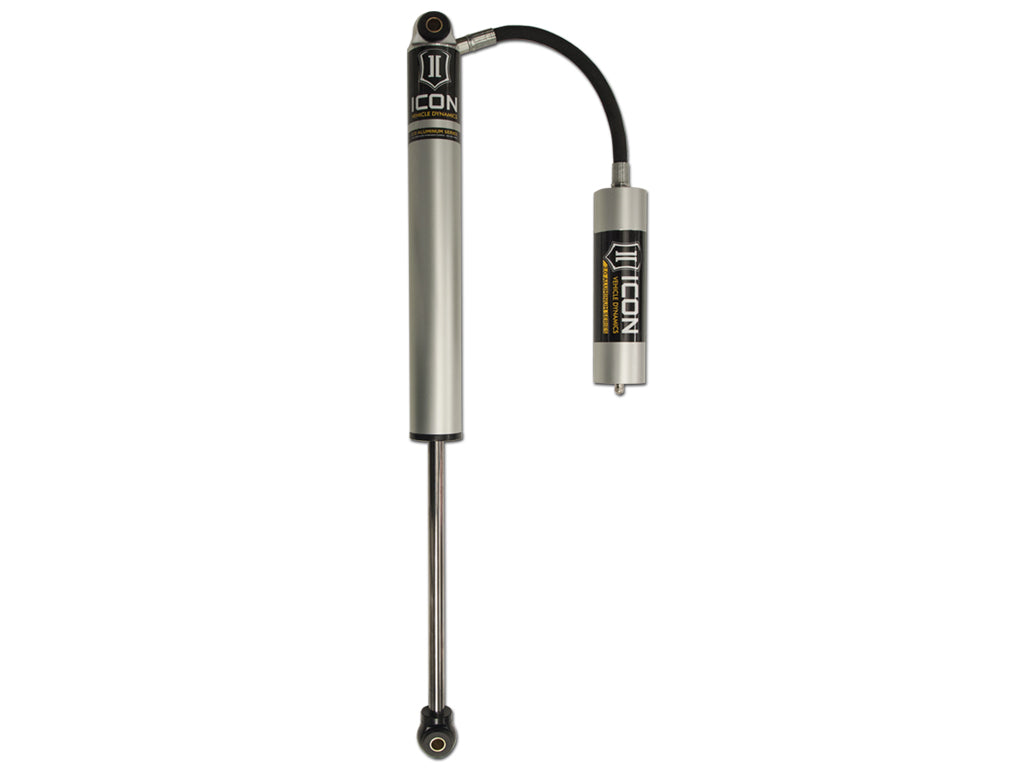

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features & Benefits
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
Application-specific reservoir mounting hardware
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Coil Spring Insulator(s) Included: No
Color: Silver
Color: Gray
Color: Black
Configuration: Performance
Cylinder Color: Silver
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
Dust Shield Included: No
External Reservoir: Yes
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Type: EYELET
Material: Steel
Material: Aluminum
Maximum Ride Height Raising Distance: 1.5
Mounting Hardware Included: Yes
Quantity: 1
Remote Reservoir: Yes
Reservoir Type: Remote
Rod Diameter: .625
Self-Leveling: No
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eylet
Suspension Type: Spring
Title: ICON 1996-2004 Toyota Tacoma, 0-1.5" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
Upper Mount Type: EYELET
Valving Type: Digressive
Valving Type: Linear
