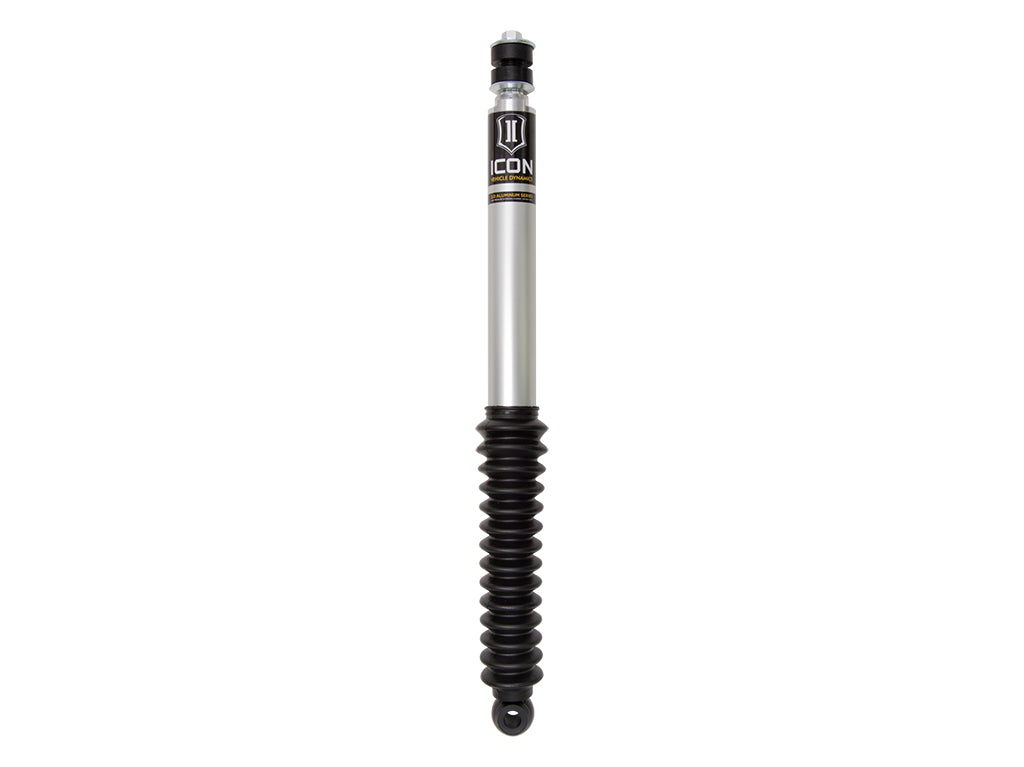

ICON Vehicle Dynamics 56516 - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.0 VS

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features & Benefits
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: Yes
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Bushing Material: Rubber
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring Insulator(s) Included: No
Color: Black
Color: Silver
Color: Gray
Configuration: Performance
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: Yes
Dust Shield: No
Dust Shield Included: Yes
Dust Shield Material: Rubber
External Reservoir: NO
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Ride Height Raising Distance: 3
Minimum Ride Height Raising Distance: 0
Mounting Hardware Included: No
Quantity: 1
Remote Reservoir: No
Reservoir Type: Internal
Rod Diameter: .625
Self-Leveling: No
Service Parts: 202002 - 2.0 IFP REBUILD KIT
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eyelet
Suspension Type: Air
Suspension Type: Spring
Title: ICON 2022-2025 Toyota Tundra, 0-1.5" Lift/2023-2025 Sequoia, 0-4" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Internal Reservoir
Upper Mount Type: Stem
Valving Type: Linear
Valving Type: Digressive
