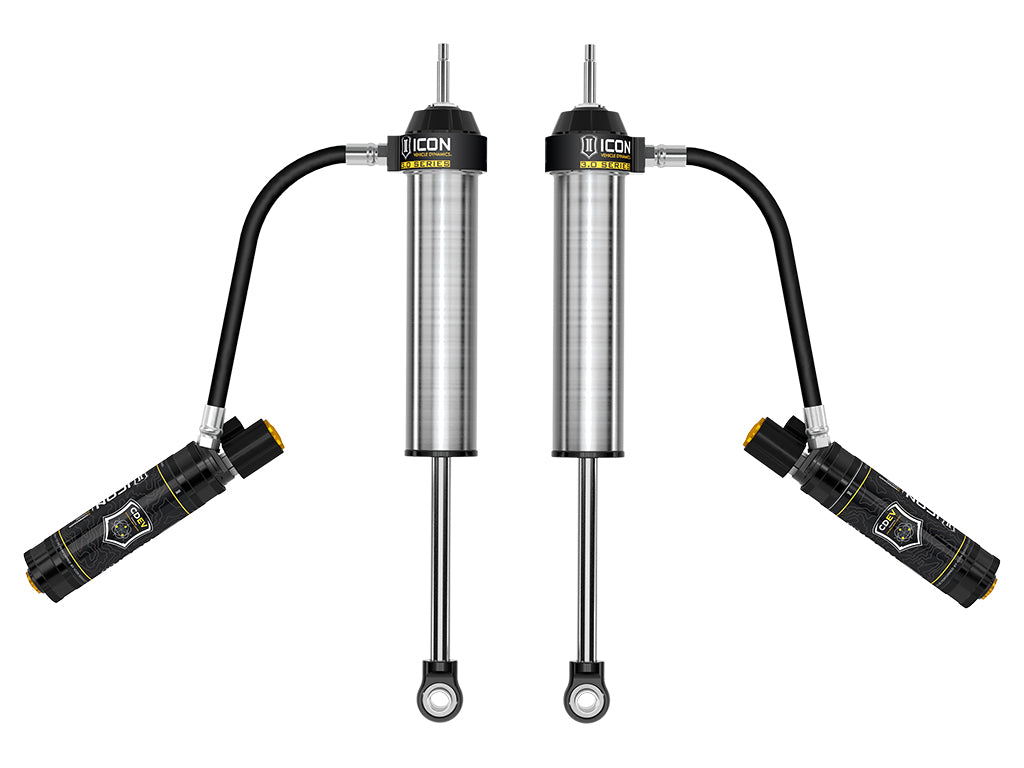

ICON Vehicle Dynamics 57845EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0

ICON's 3.0 Series Rear Shocks with CDEV for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or up to 4" of rear lift on Sequoia.
3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

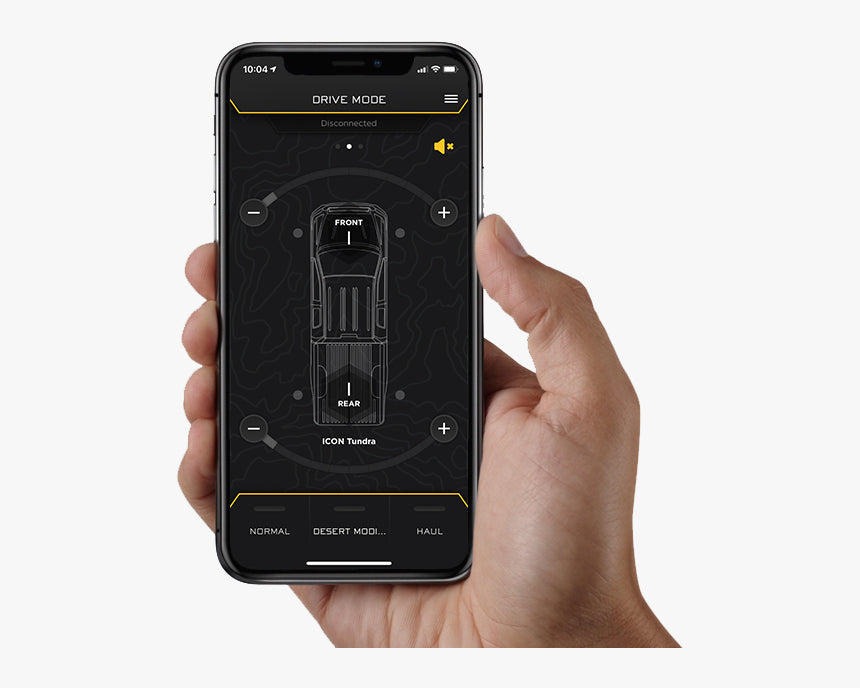

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Features & Benefits
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
20% increase in rear suspension travel compared to stock
Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
Vehicle specific design and tuning for superior shock damping and control
3.0” Body diameter for increased oil volume and larger piston area
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
7/8” diameter induction hardened, chrome plated shock shafts
Corrosion resistant CAD plated steel shock bodies
Fully Rebuildable and Re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 58770E - 22-25 TUNDRA/23-25 SEQUOIA 2.5 VS RR CDEV COILOVER KIT
Add-On Part: 53508 - 22-25 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT
Add-On Part: 58775E - 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
Adjustable: Yes
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Boot Included: NO
Bore Diameter: 2.75
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Diameter: 3
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
External Reservoir: Yes
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Reservoir Type: Remote
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Rod End Measuring Point: Center of Eyelet
Title: ICON 2022-2025 Toyota Tundra 0-1.5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
Tube Outside Diameter: 3
Upper Mount Type: Stem
Valving Type: Linear/Digressive
