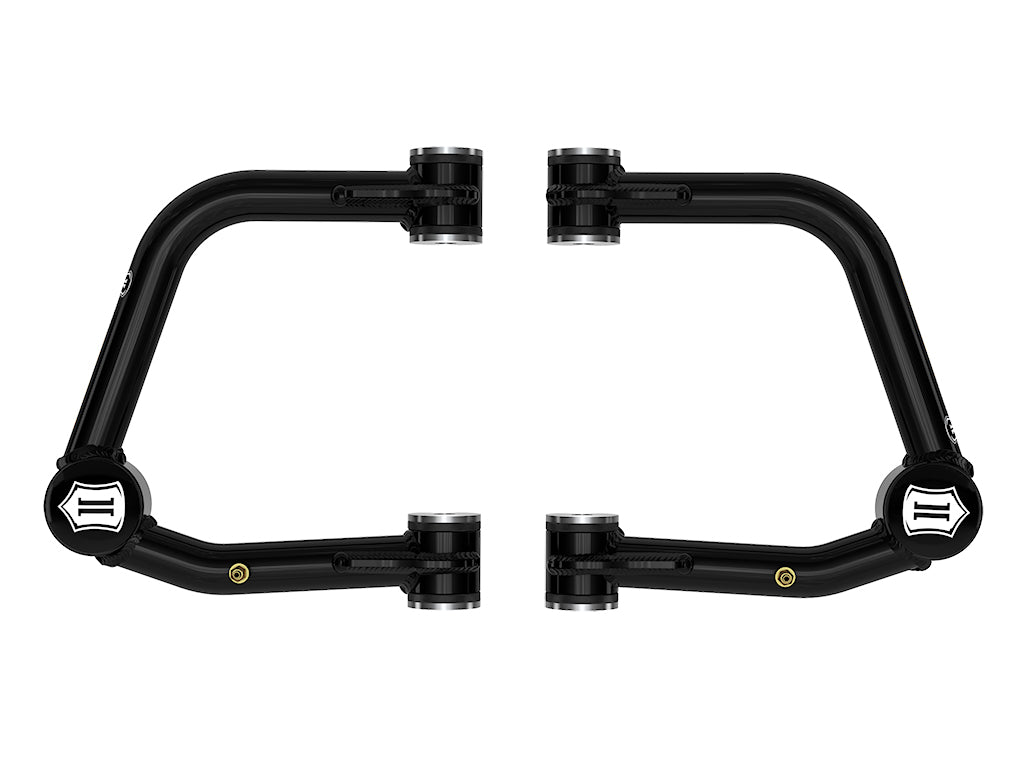

ICON Vehicle Dynamics 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KI

These tubular steel upper control arms free up your 2022-2025 Toyota Tundra's or 2023-2025 Toyota Sequoia's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

Features & Benefits
Built in added caster for better handling on lifted vehicles
Delta Joint PRO allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
Serviceable dual stage pivot bushings
CNC machined housings for bushings and Delta Joint PRO
1026 DOM tube construction with black powder coat finish
Includes billet dust caps for Delta Joint PRO

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Adjustable: No
Adjustable Control Arm: No
Attachments Included: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Bushing Color: Black
Bushing Material: Polyurethane
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Black
Construction: Tubular
Control Arm Color: Black
Control Arm Construction: Tubular
Control Arm Material: DOM Steel
End 1 Type: Bushing
End 2 Type: BALL JOINT
Finish: Powdercoat
Grade Type: Performance
Grease Fitting Included: yes
Material: DOM Steel
Mounting Bracket Included: No
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Pre-Assembled: Yes
Pre-Greased: No
Pre-Greased: Yes
Quantity: Pair
Recommended Aftermarket Tires: 35" x 12.50"
Recommended Aftermarket Wheels: 17x8.5" with 5.75” Backspace / 25mm Offset
Reinforced: Yes
Service Parts: 614530 - 58452DJ / 58461DJ REPLACEMENT BUSHING AND SLEEVE KIT
Set: Yes
Suspension Grade Type: Performance
Suspension Type: Spring
Title: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Front, Tubular Upper Control Arms, w/ Delta Joint Pro
