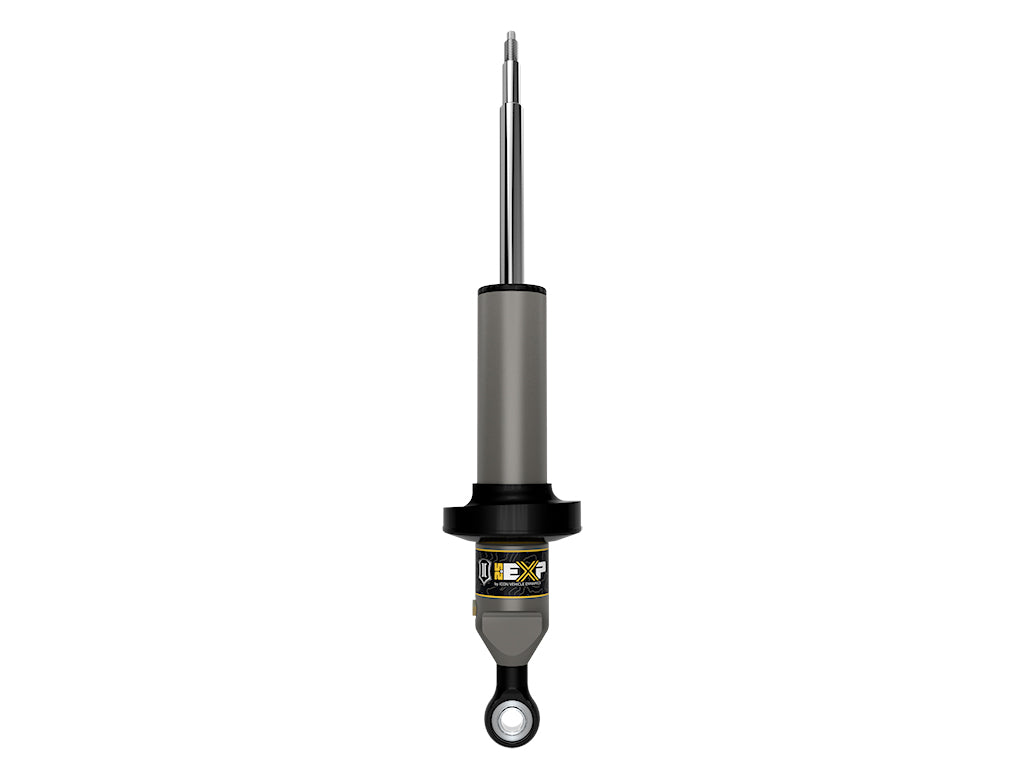

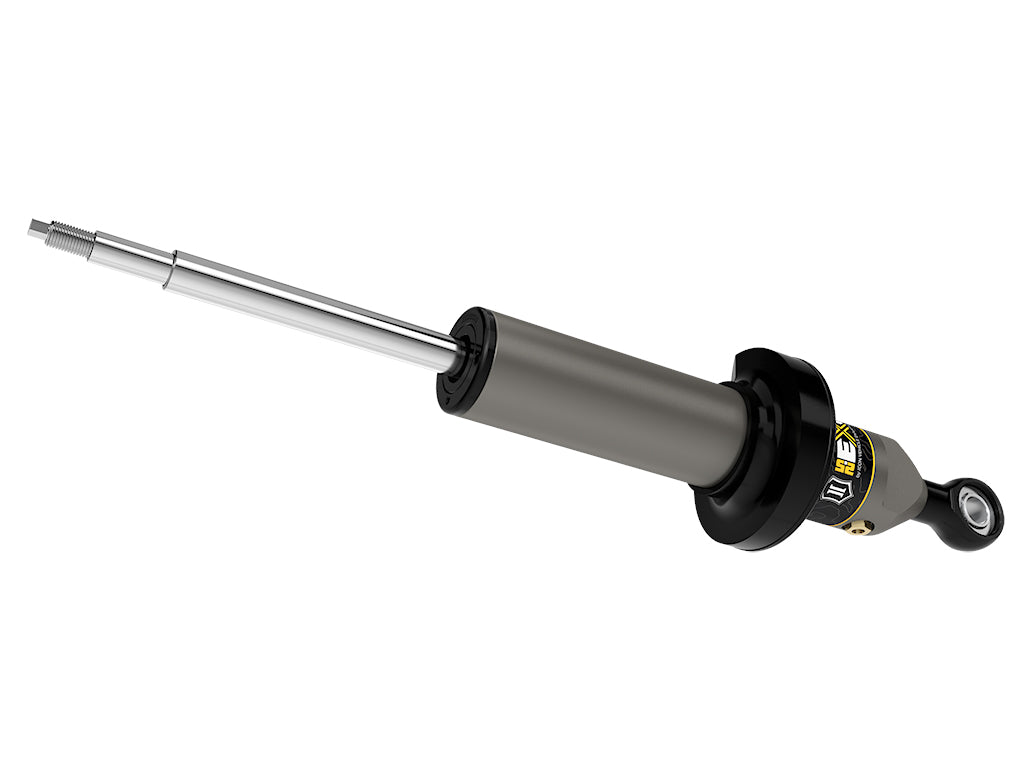

ICON Vehicle Dynamics 58671 - 22-25 TUNDRA/23-25 SEQUOIA FRONT 2.5 EXP COILOVER

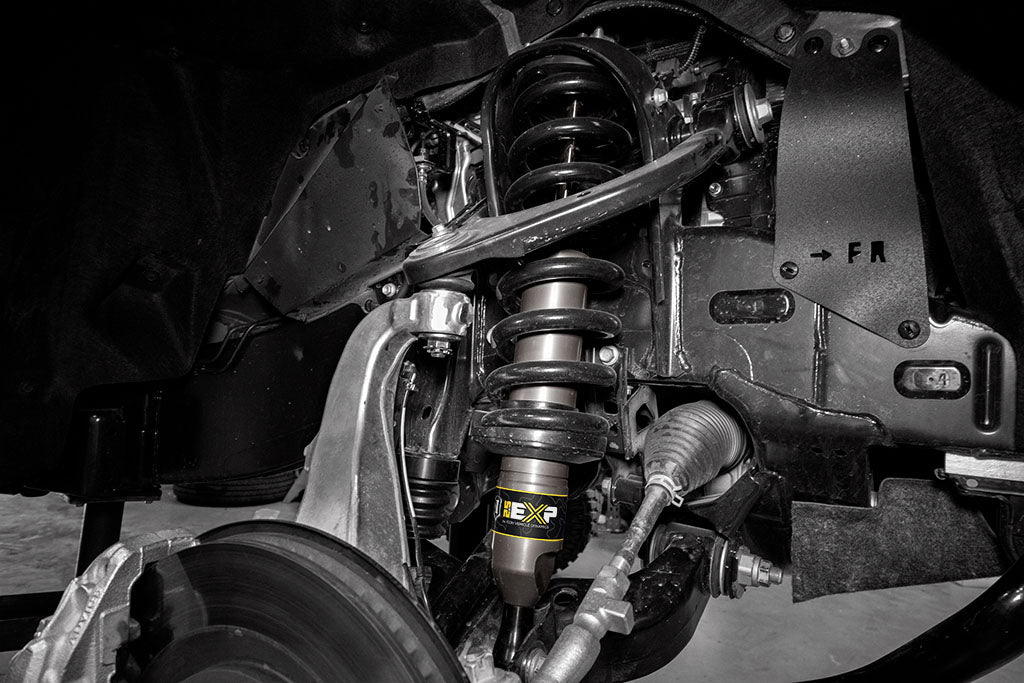

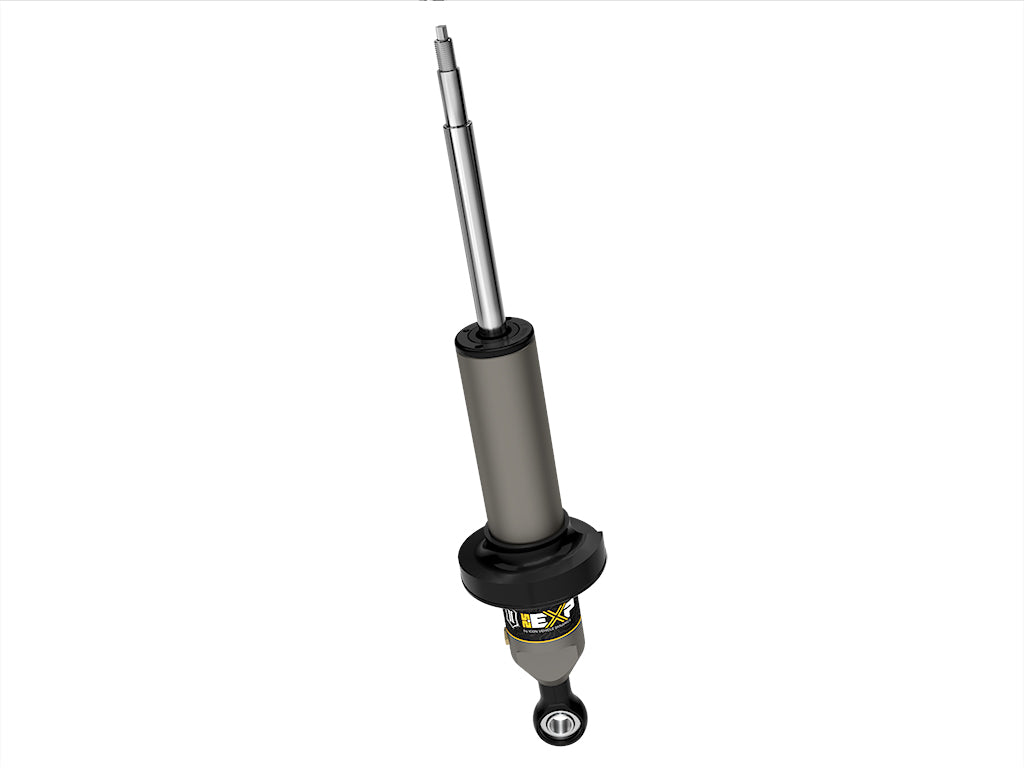

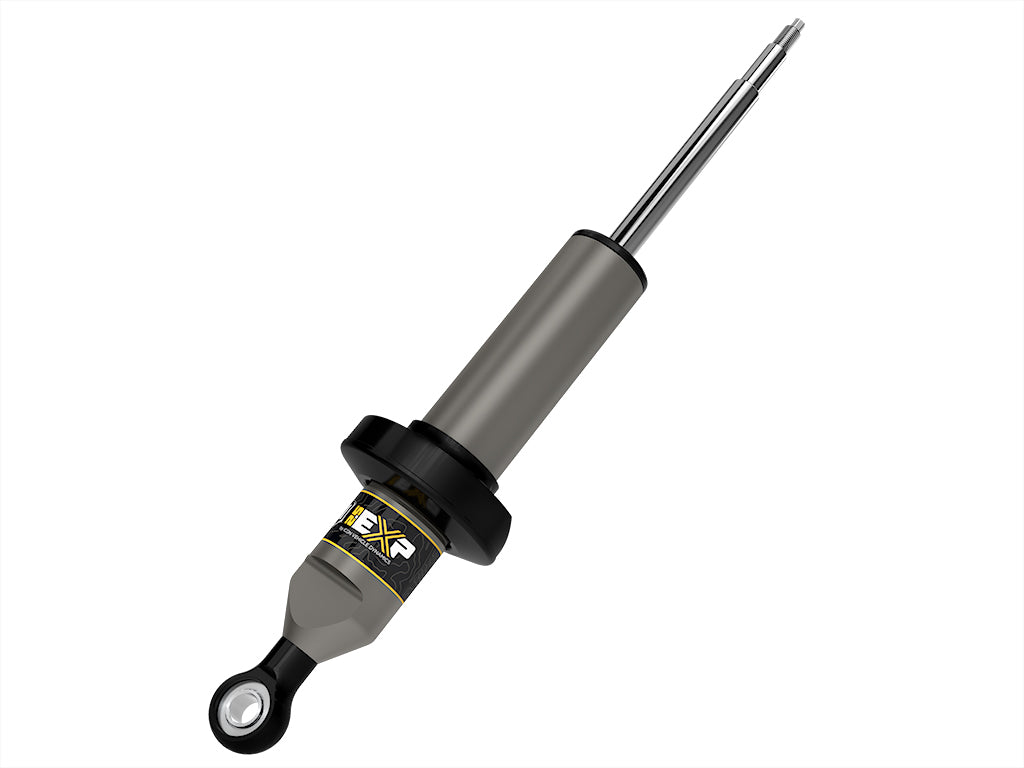

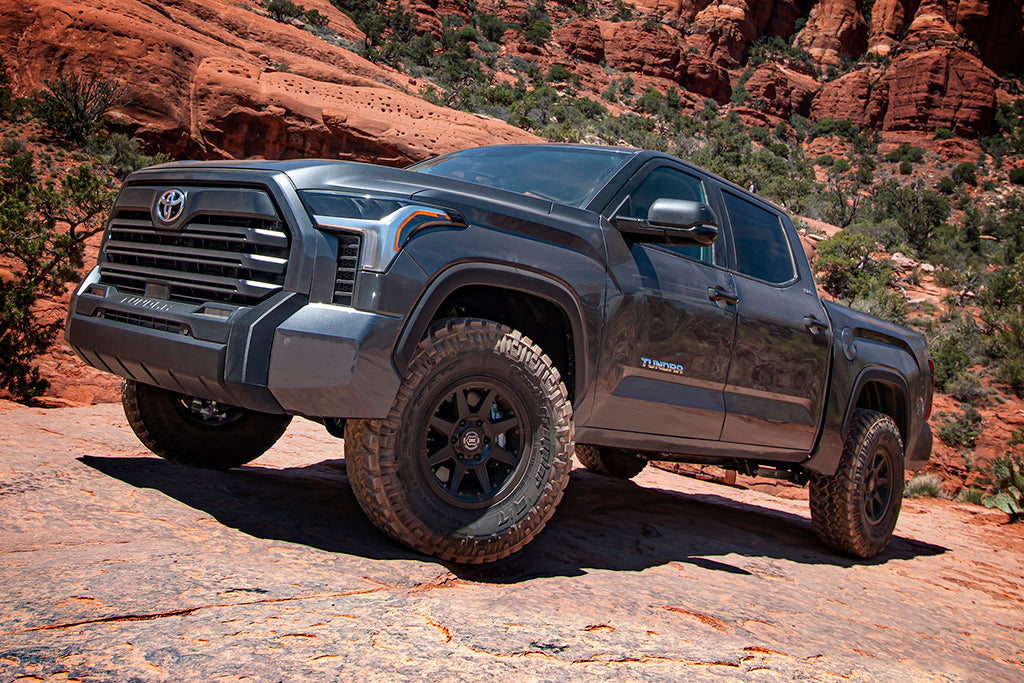

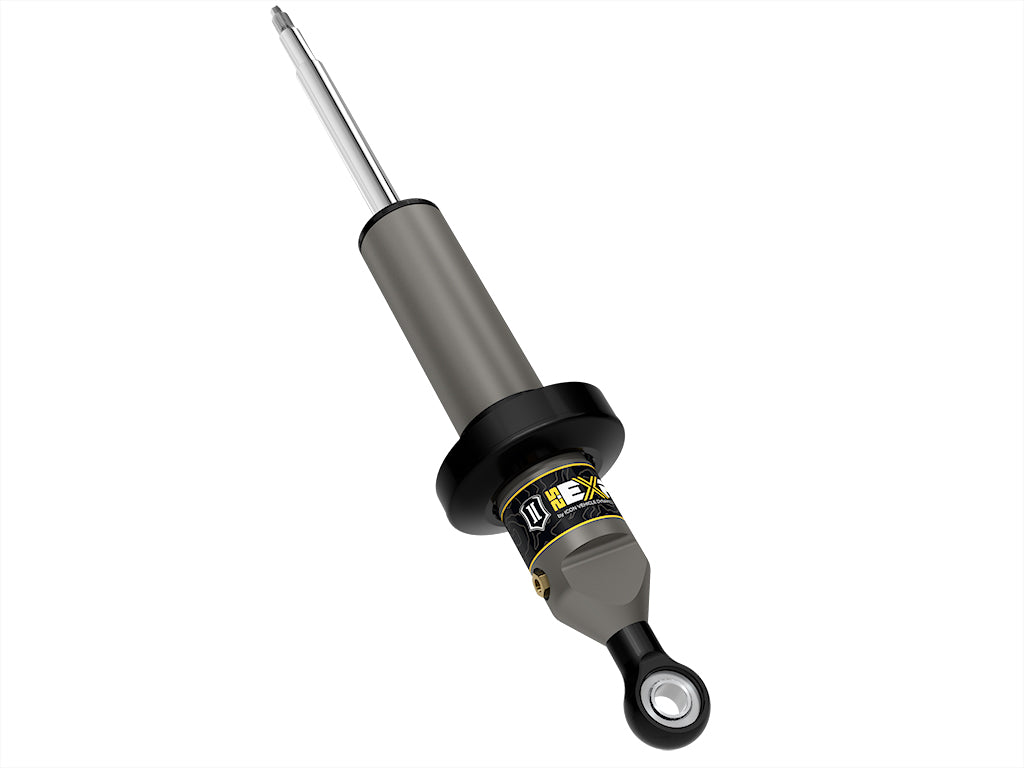

The 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features & Benefits
Vehicle specific design for 2022-2025 Toyota Tundra and 2023-2025 Sequoia
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 55154 - 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Height: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: No
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: No
Coil Spring Included: No
Coil Spring Insulator(s) Included: No
Compressed Length: 15.42
Cylinder Color: Gray
Cylinder Finish: Hard Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2.5
Damping Type: Oil
Dust Shield Included: No
Extended Length: 21.21
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Shoulder of Stem
Title: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Front, 2.5 EXP Series Coilover
Travel Length: 5.80
Upper Mount Type: Stem
Valving Type: Digressive
