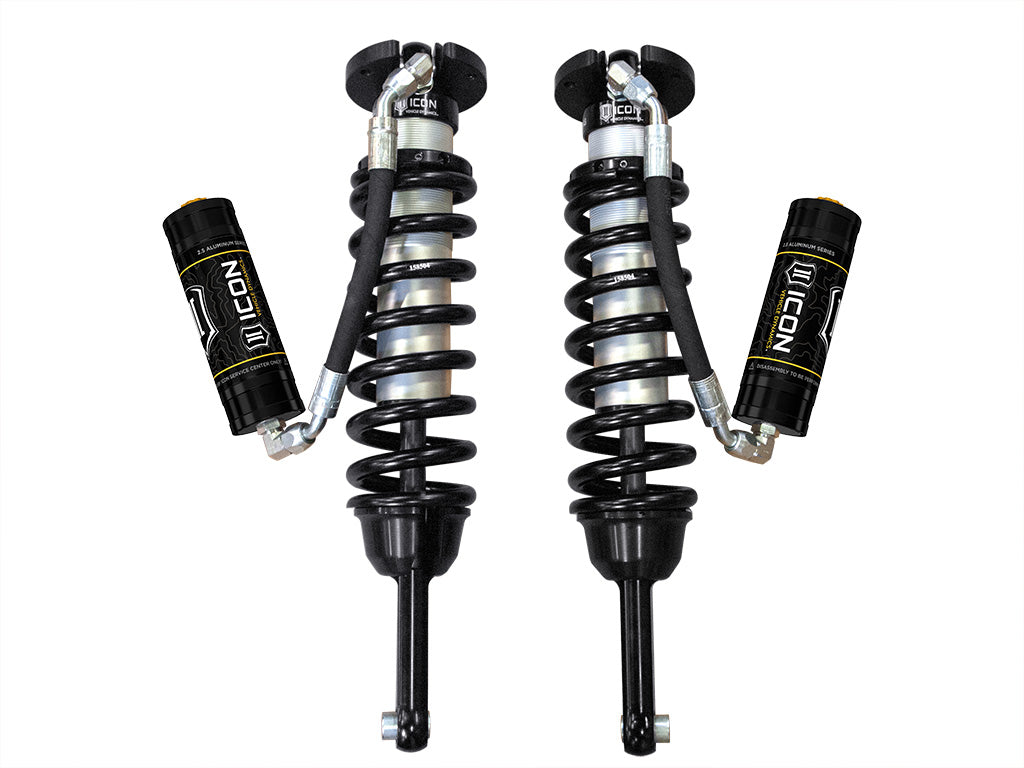

ICON Vehicle Dynamics 58735 - 05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Features & Benefits
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
Vehicle specific tuned for superior shock damping and control
Extended Travel length requires installation of aftermarket front upper control arms
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
CAD-plated threaded body
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer
External Reservoirs Ensures Maximum Cooling
ICON engineered coil springs

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 17.42
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.57
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: Recommended Aftermarket Tires: 33" x 11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit
Travel Length: 5.16
Upper Mount Type: Mounting Plate
Valving Type: Digressive
