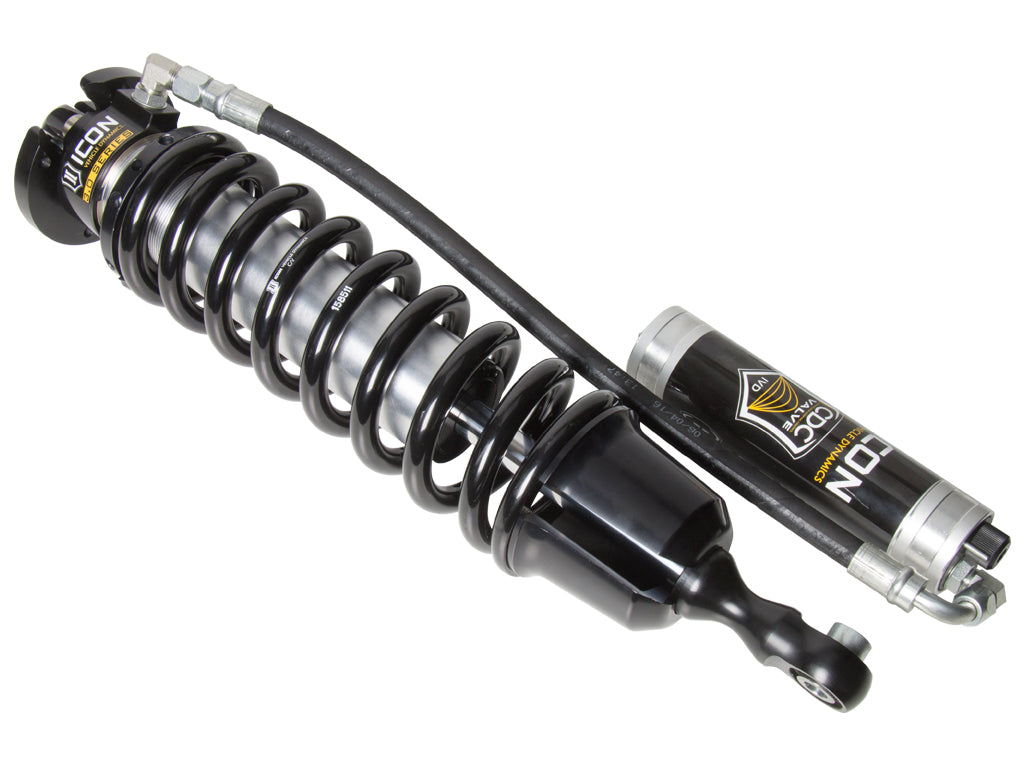

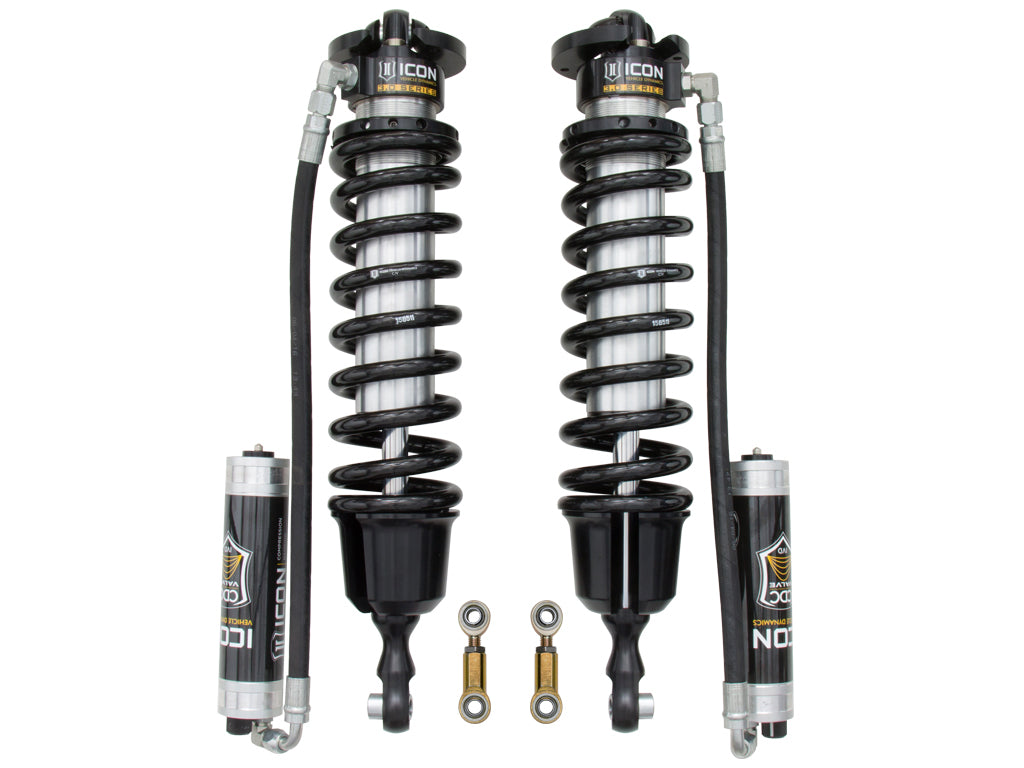

ICON Vehicle Dynamics 58755 - 07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER

While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.

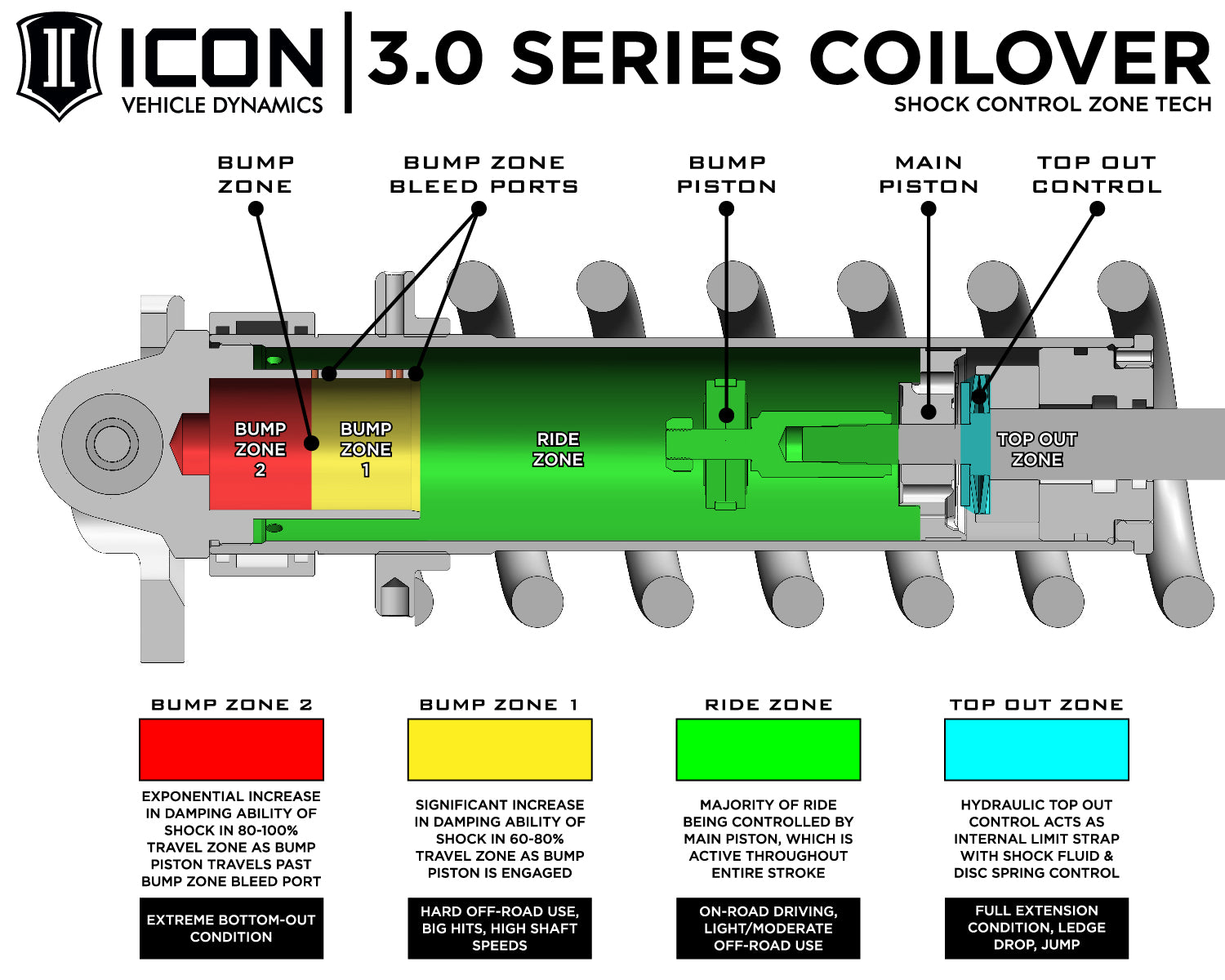

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as ICON engineered coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.

Features & Benefits
Significant increase in damping ability for excellent performance in extreme off-road conditions
Adjustable coilovers provide 1.63-3.5” of front lift height over stock
Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
High quality ICON-engineered coil springs offer increased travel and performance
PTFE lined COM12 spherical bearings ensure maximum strength and durability
Heavy duty 1” CNC machined shock shafts
Multi stage CAD plated shock body with hard anodized piston and top cap

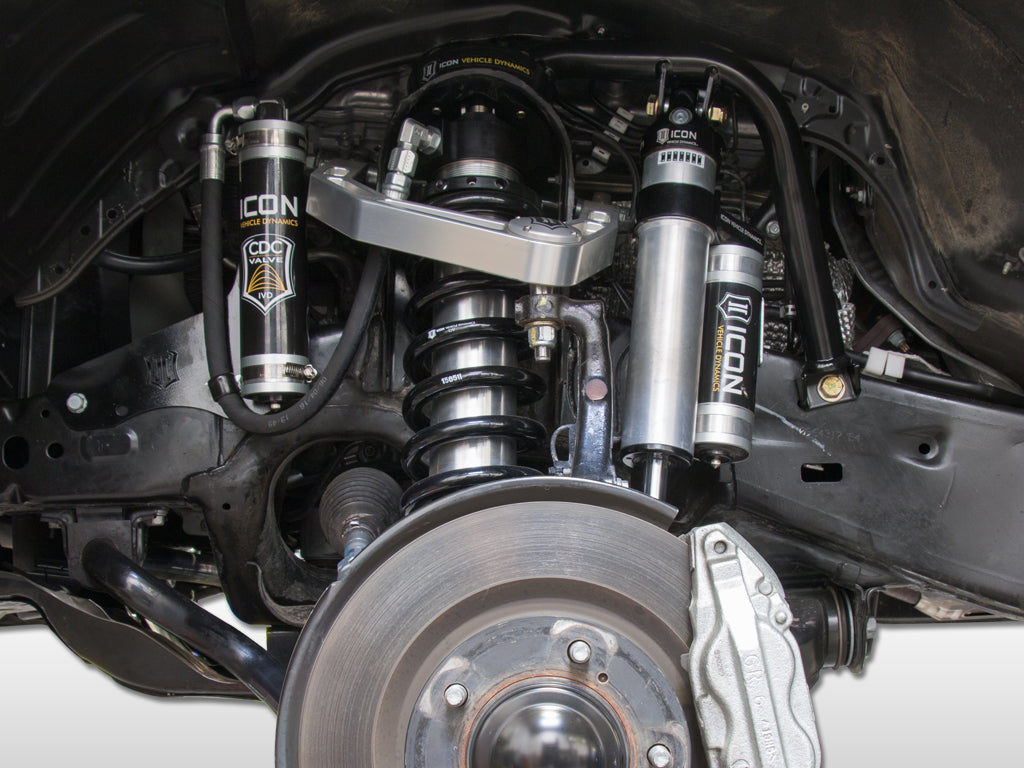

Direct bolt-in to OEM shock location makes for an easy install
Fully serviceable
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 51046 - 07-21 TUNDRA/08-21 LC200/08-22 SEQUOIA BUMP STOP SPACER KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 3
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 18.63
Cylinder Color: Gray
Cylinder Finish: Ceramic Coated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 25.4
Front Spring Rate: 600
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.63
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Shaft Diameter: 1
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Spring Color: Black
Spring Material: Steel
Spring Rate: 600
Spring Rate Type: Linear
Title: ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDCV
Travel Length: 6.77
Upper Mount Type: Mounting Plate
Valving Type: Compression: Linear
Valving Type: Rebound: Digressive
