ICON Vehicle Dynamics 58770E - 22-25 TUNDRA/23-25 SEQUOIA 2.5 VS RR CDEV COILOVE

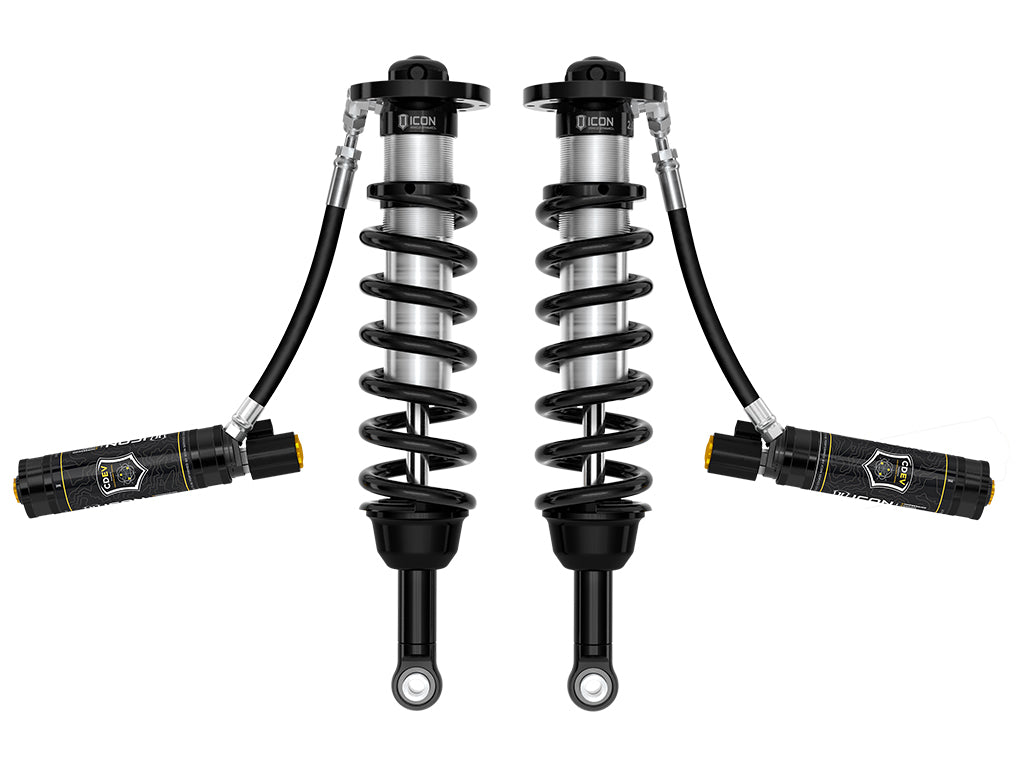

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

Features & Benefits

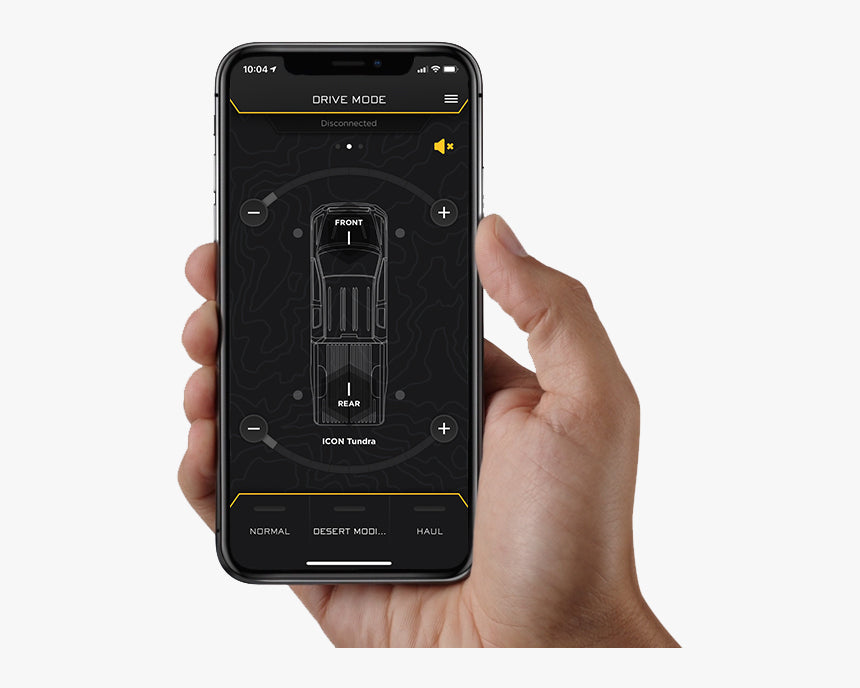

ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 57840EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.5 VS CDEV RR PAIR
Add-On Part: 53508 - 22-25 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 55154 - 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 57845EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Boot Included: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 16.73
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.08
Front Spring Rate: 700
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eyelet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2022-2025 Toyota Tundra 1.25-3.5" Lift/2023-2025 Sequoia 3-4.5" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Pair
Travel Length: 5.36
Upper Mount Type: Mounting Plate
Valving Type: Digressive
