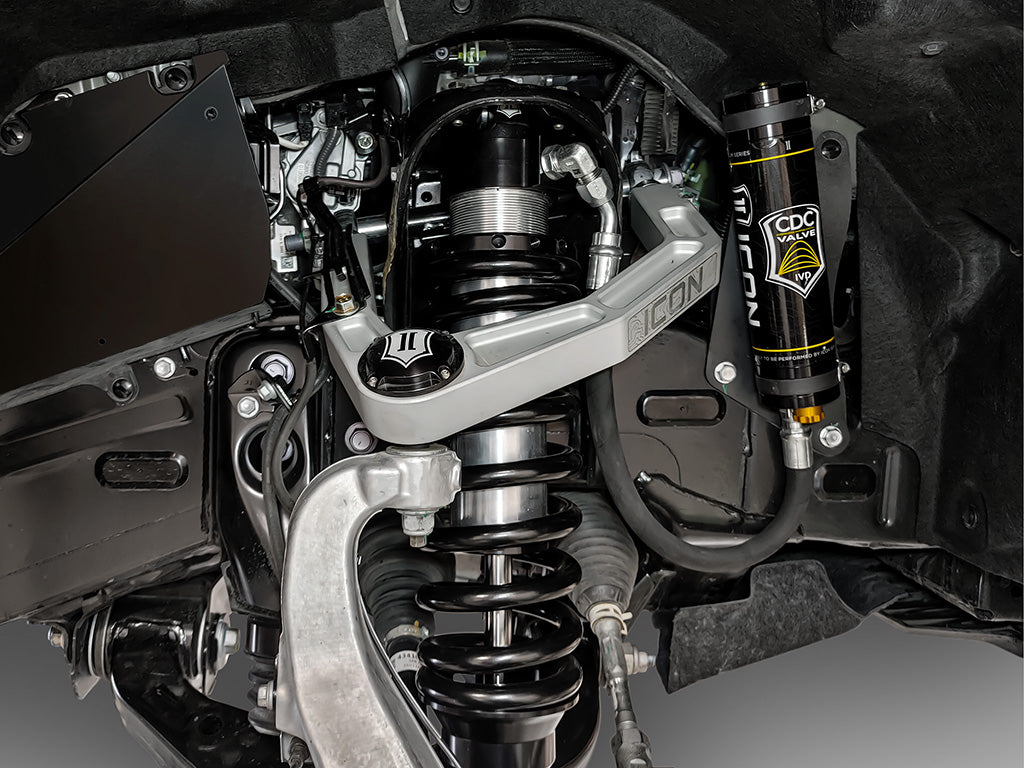

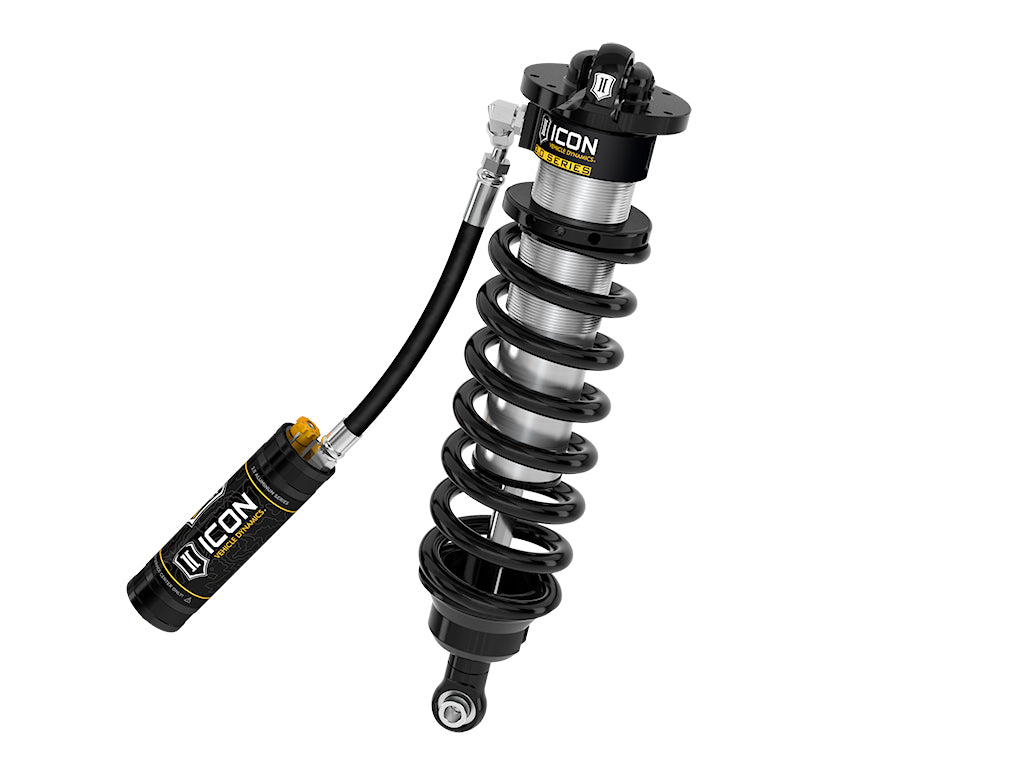

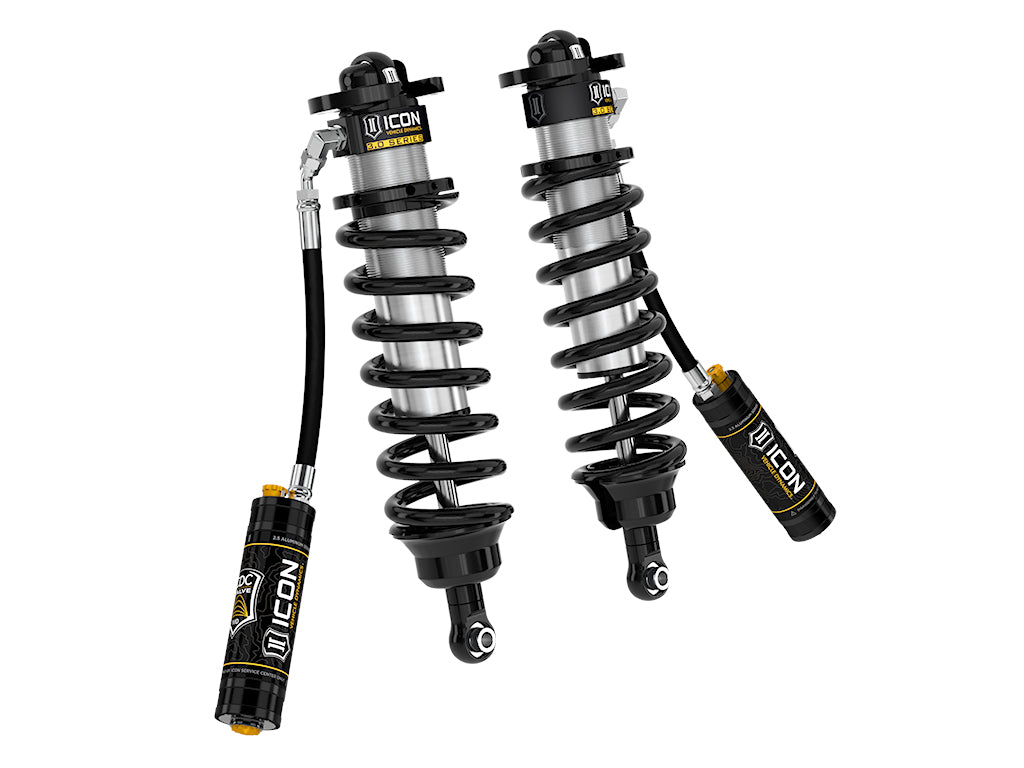

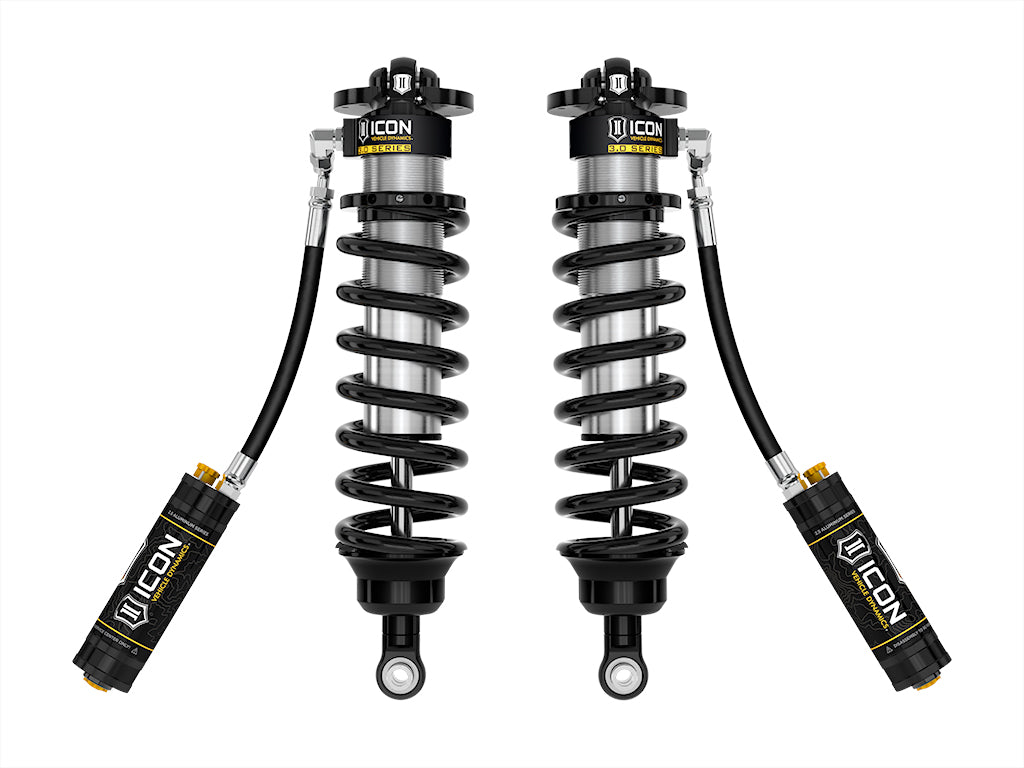

ICON Vehicle Dynamics 58775C - 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDCV COILOVE

ICON's 3.0 Series Coilovers with CDCV for 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

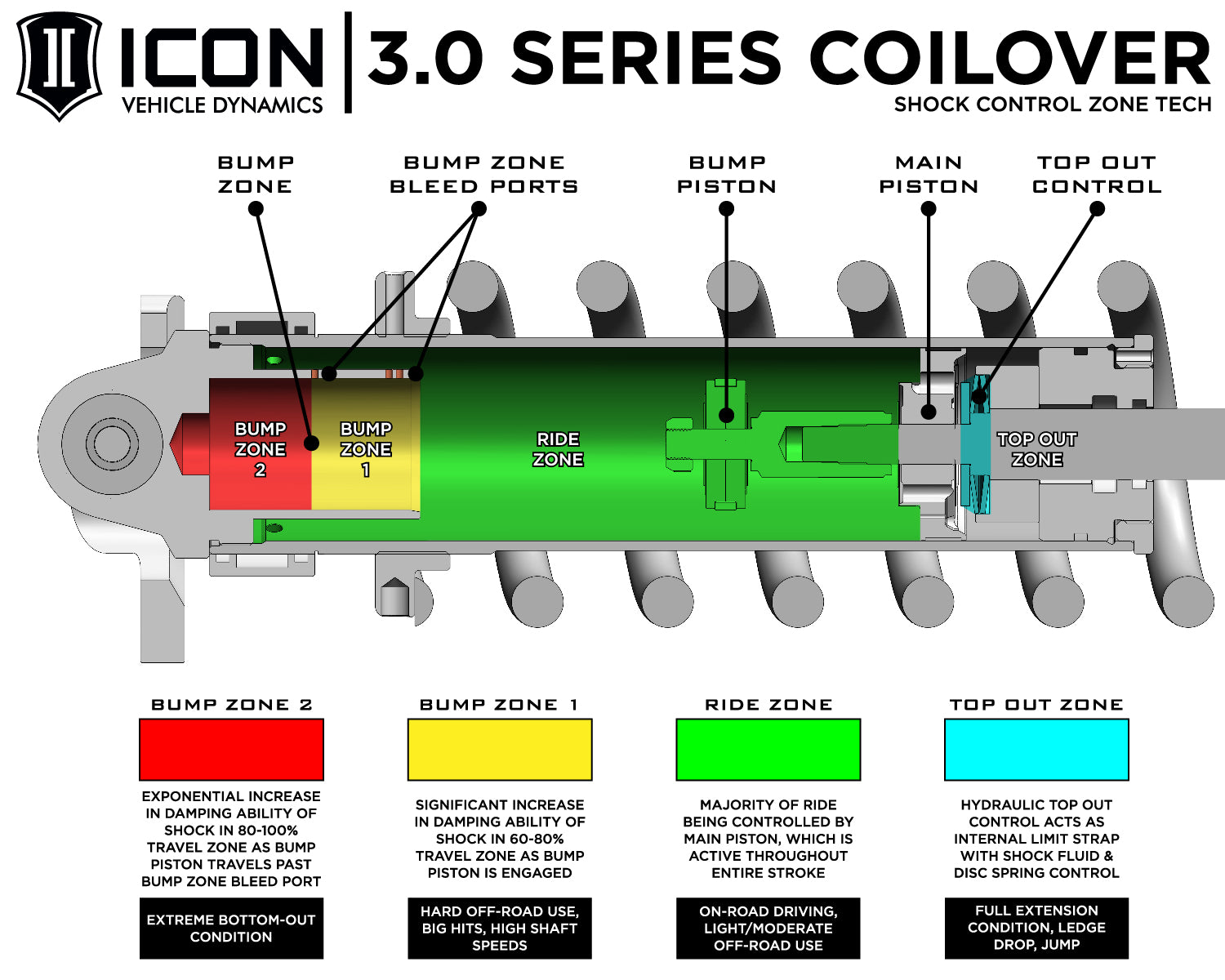

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 3.0 Series rear shocks with CDCV, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.

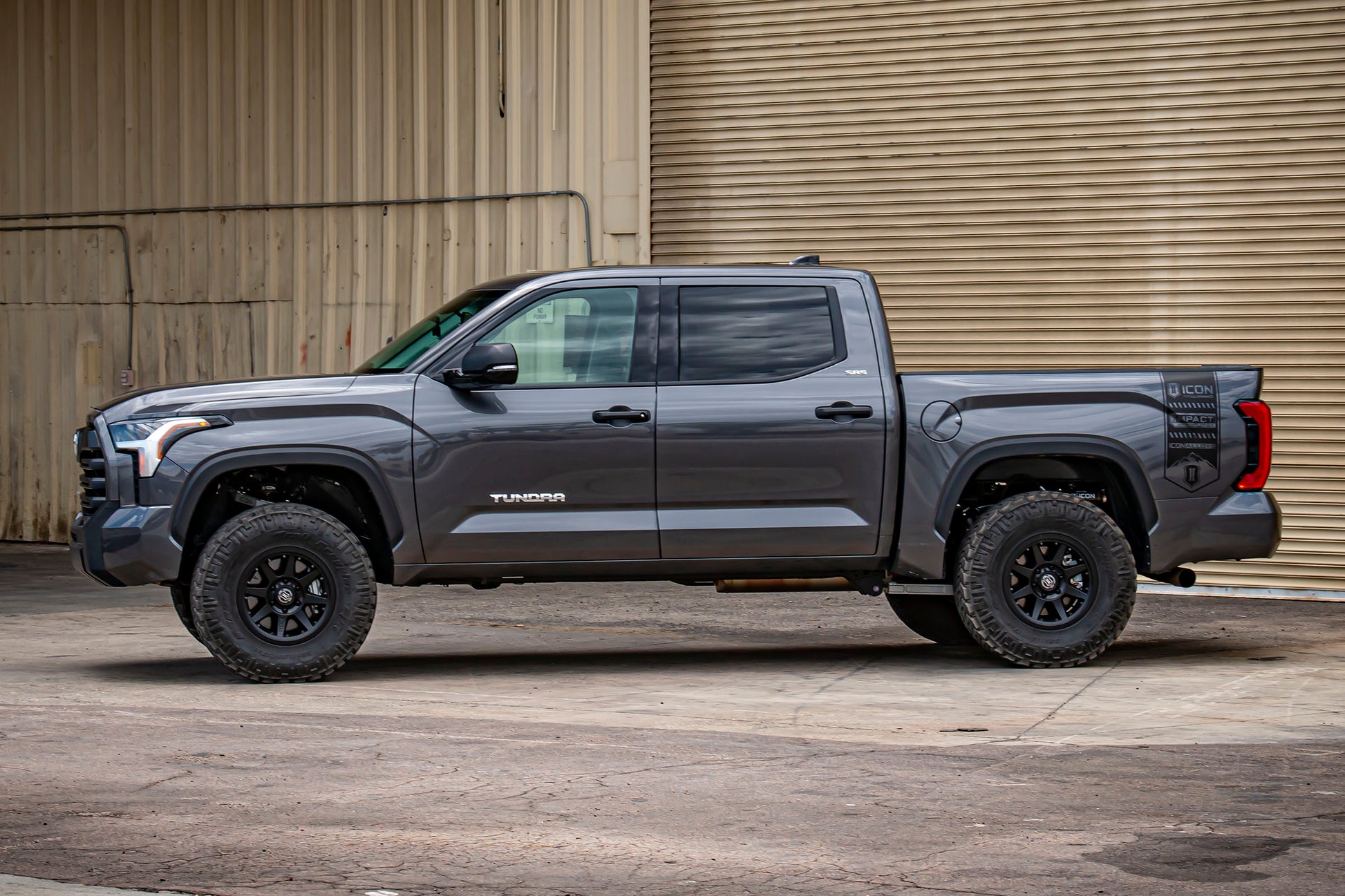

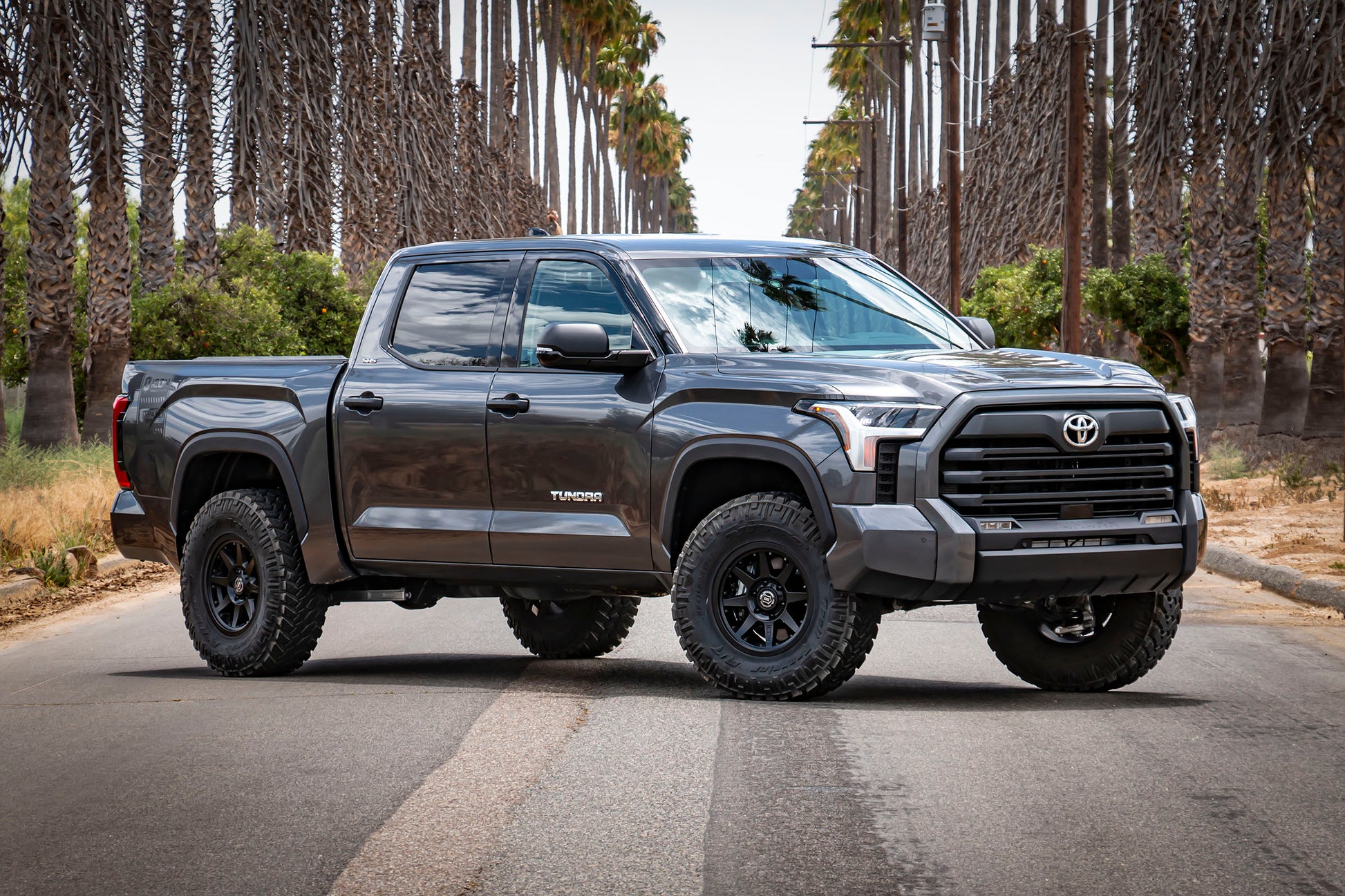

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Features & Benefits
40% increase in front wheel travel over stock
Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
Vehicle specific design and tuning for superior shock damping and control
3.0” Body diameter for increased oil volume and larger piston area
ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
7/8” diameter induction hardened, chrome plated shock shafts
Fully Rebuildable and Re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 55154 - 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 3
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 16.38
Cylinder Color: Gray
Cylinder Finish: Ceramic Coated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.04
Front Spring Rate: 600
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3.25
Maximum Ride Height Raising Distance: 3.25
Minimum Lift: 1.25
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eyelet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDCV, Pair
Travel Length: 5.67
Upper Mount Type: Mounting Plate
Valving Type: Digressive
Valving Type: Linear
