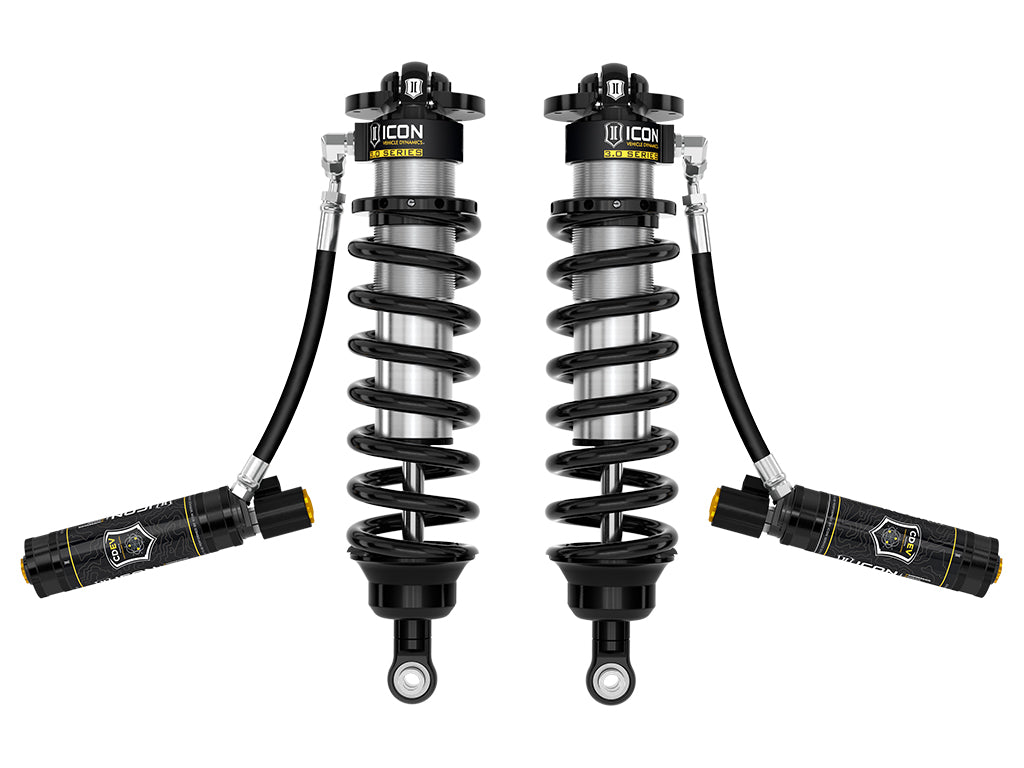

ICON Vehicle Dynamics 58775E - 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVE

ICON's 3.0 Series Coilovers with CDEV for 2022-2025 Toyota Tundra and 2023-2025 ToyotaSequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

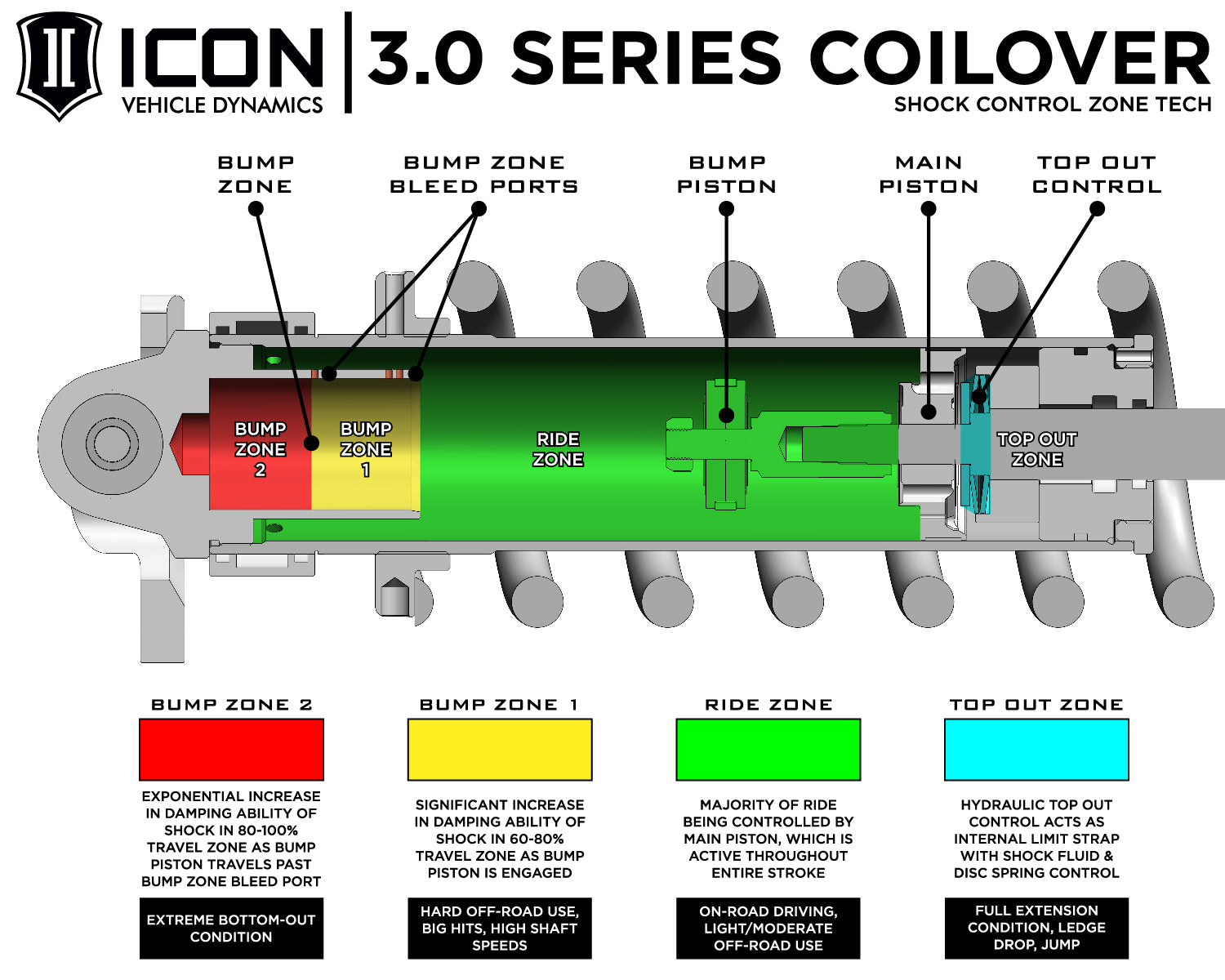

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

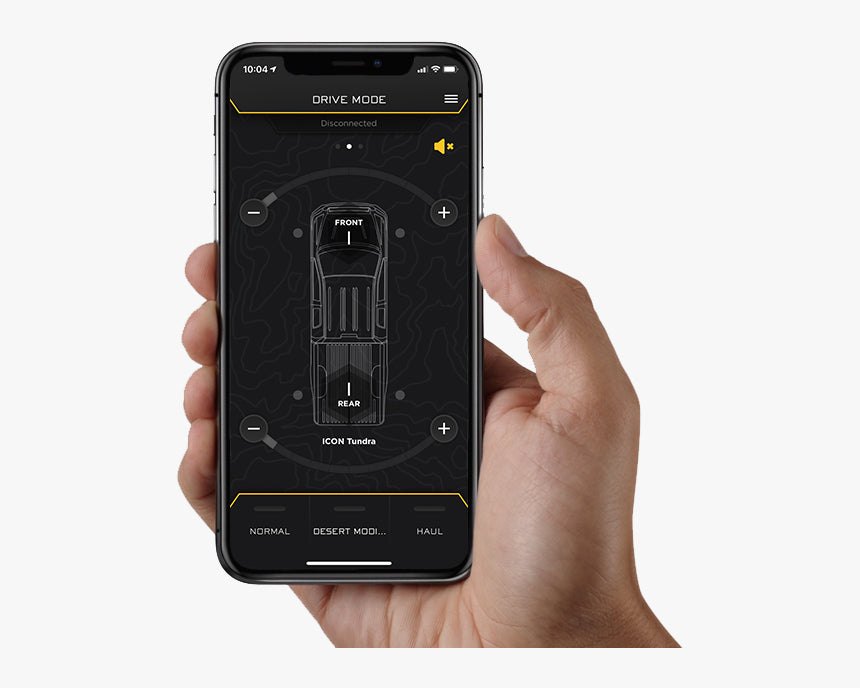

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

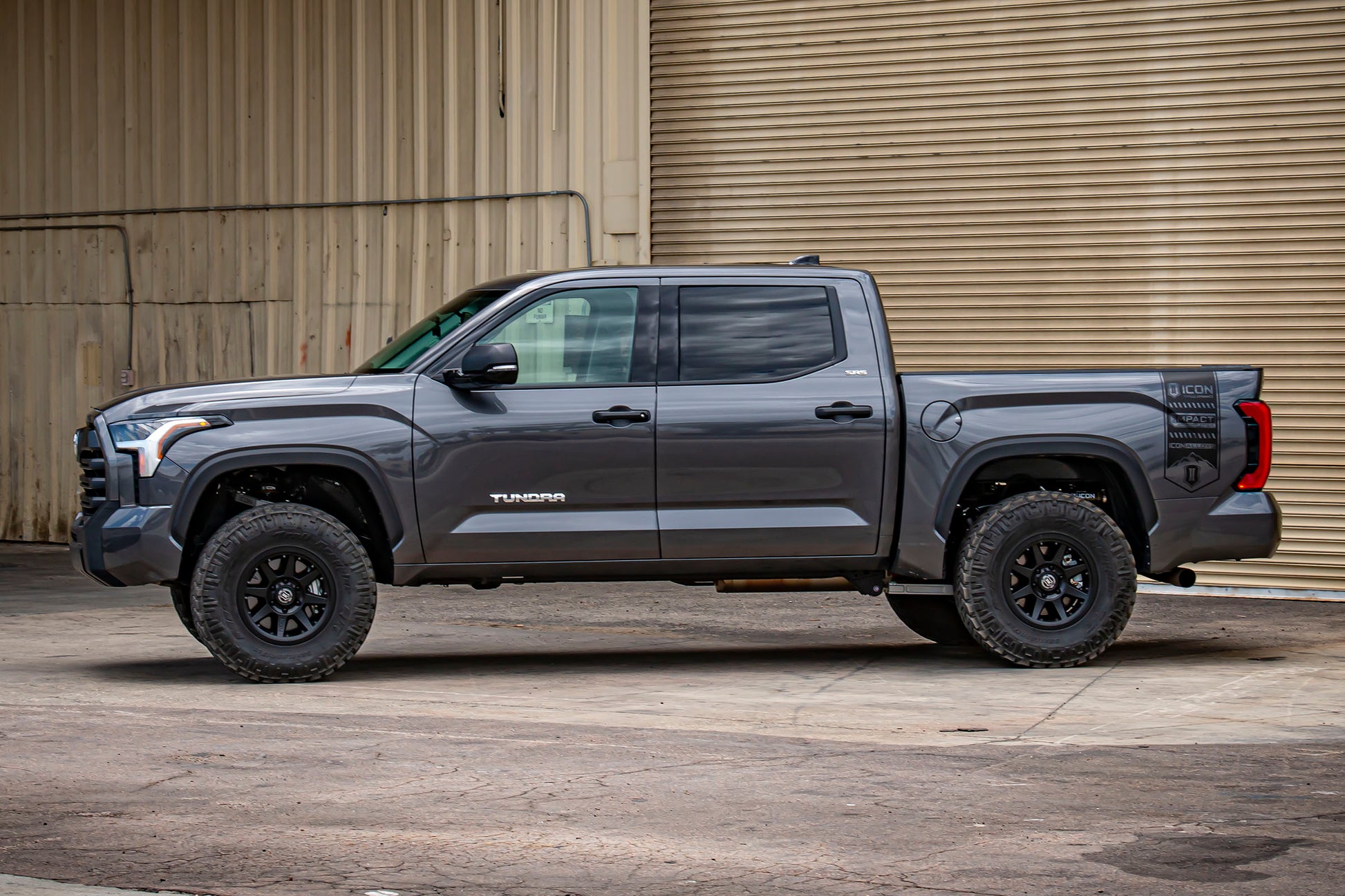

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Features & Benefits
40% increase in front wheel travel over stock
Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
Vehicle specific design and tuning for superior shock damping and control
3.0” Body diameter for increased oil volume and larger piston area
ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
7/8” diameter induction hardened, chrome plated shock shafts
Fully Rebuildable and Re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 57845EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
Add-On Part: 53508 - 22-25 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT
Add-On Part: 57840EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.5 VS CDEV RR PAIR
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 3
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 16.38
Cylinder Color: Gray
Cylinder Finish: Ceramic Coated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.04
Front Spring Rate: 600
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3.25
Maximum Ride Height Raising Distance: 3.25
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eyelet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
Travel Length: 5.67
Upper Mount Type: Mounting Plate
Valving Type: Linear
Valving Type: Digressive
