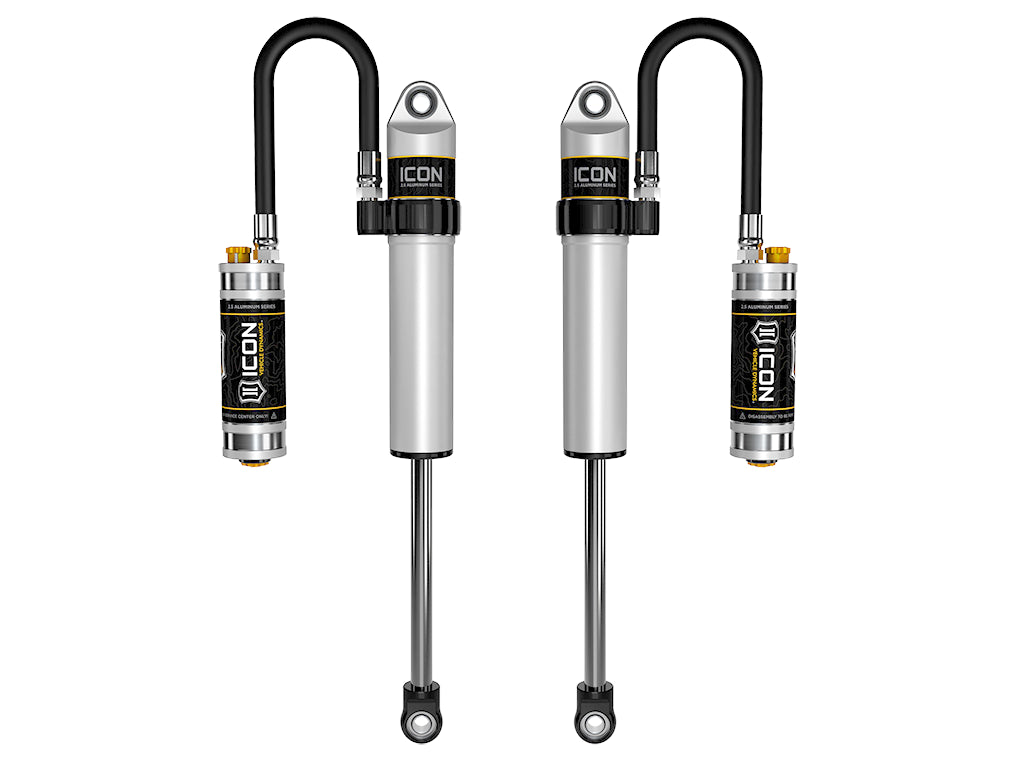

ICON Vehicle Dynamics 59706CP - TOYOTA S2 SECONDARY 2.5 RR CDCV PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features & Benefits
Nitrogen charged monotube design with remote reservoir
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
6061 aircraft grade aluminum CNC machined components
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
PTFE lined spherical bearings and application specific mounting hardware
100% Rebuildable
100% Revalveable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable: Yes
Adjustable Damping: Yes
Boot Included: NO
Bore Diameter: 2.25
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Adjustment Type: Manual
Damping Type: Oil
External Reservoir: Yes
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: EYELET
Mounting Hardware Included: Yes
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Title: ICON 2005-2023 Toyota Tacoma/2003-2024 Toyota 4Runner//2007-2014 Toyota FJ Cruiser/2003-2009 Lexus GX470, Front 2.5 VS Remote Reservoir w/ CDCV, S2 Secondary Shocks, Pair
Tube Outside Diameter: 2.5
Upper Mount Type: EYELET
