ICON Vehicle Dynamics 59730E-CB - 05-23 TACOMA/10-24 4RUNNER 2.5 VS RR CDEV COIL

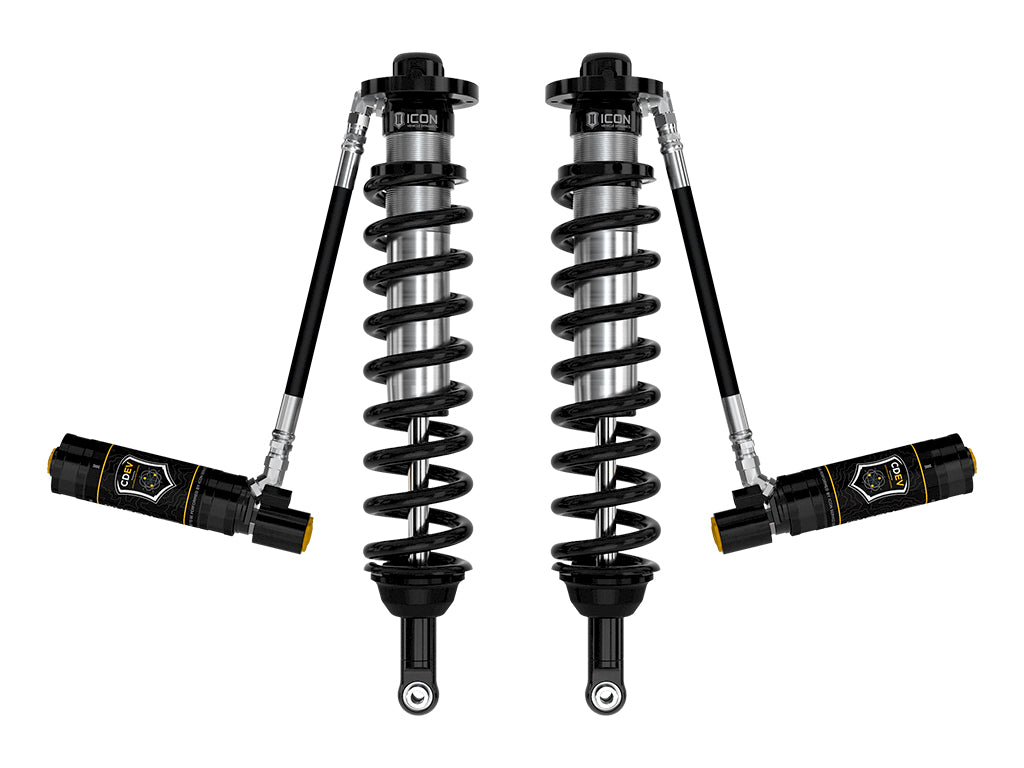

The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma or 2010-2024 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle.

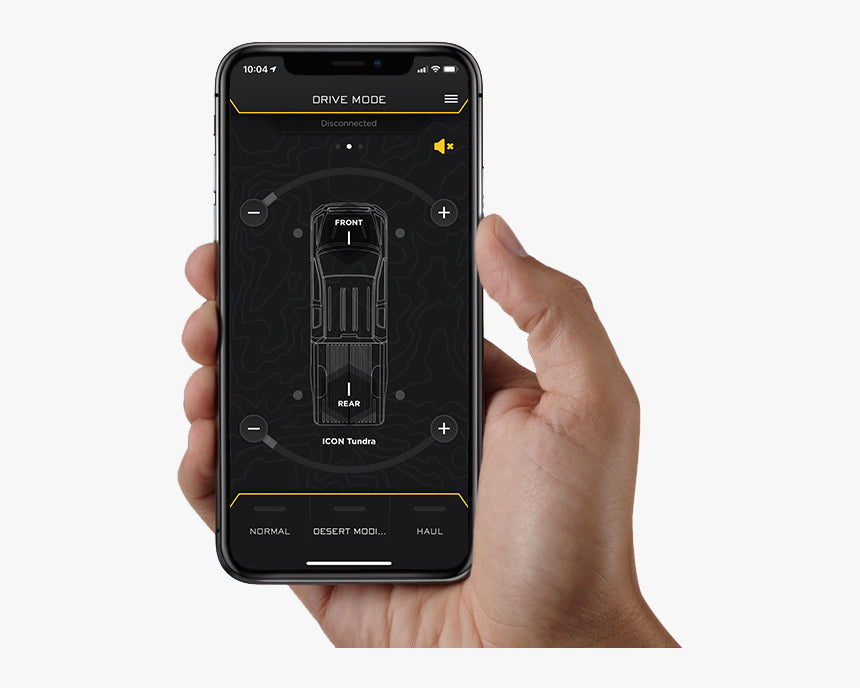

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Features & Benefits
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Vehicle specific tuned for superior shock damping and control
Custom length for pairing with many common long travel front suspension kits
Adjustable ride height for customization of vehicle stance
ICON engineered Eibach Springs
External reservoirs to attain cooler operating temperatures during extended off-road use
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 17.20
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield Included: No
Extended Length: 24.65
Front Spring Rate: 600
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 0
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 257304 - 7/8 SHAFT 14.75 OAL, 10.50 TRAVEL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, 2.5 VS Remote Reservoir w/ CDEV, Long Travel Coilover Kit
Travel Length: 7.46
Upper Mount Type: Mounting Plate
Valving Type: Digressive
