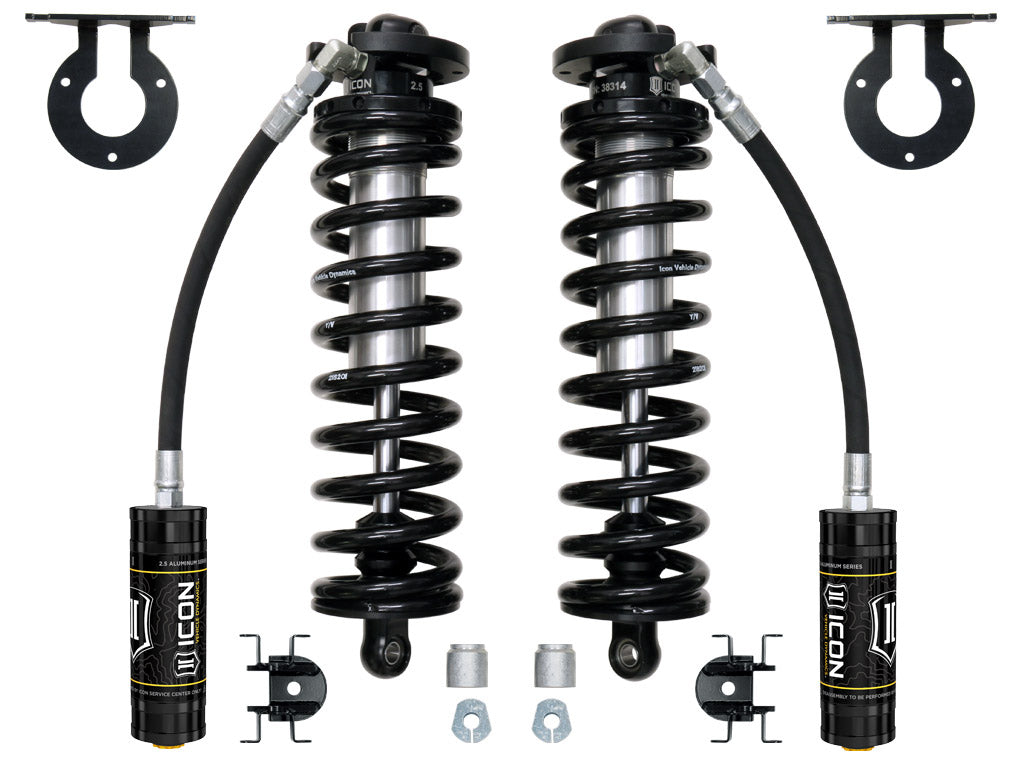

ICON Vehicle Dynamics 61720 - 05-23 F250/F350 4WD 2.5-3" 2.5 VS RR BOLT IN CO CO

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Features & Benefits
Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 64038 - 17-25 FSD ADJ TRACK BAR KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
Add-On Part: 64035 - 05-16 FSD ADJ TRACK BAR W/FK ROD END
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Alignment Cams Included: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 12.75
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 19.71
Front Spring Rate: 400
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 2.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3” Lift, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir, w/ Caster Cams
Travel Length: 6.96
Upper Mount Type: Mounting Plate
Valving Type: Digressive
