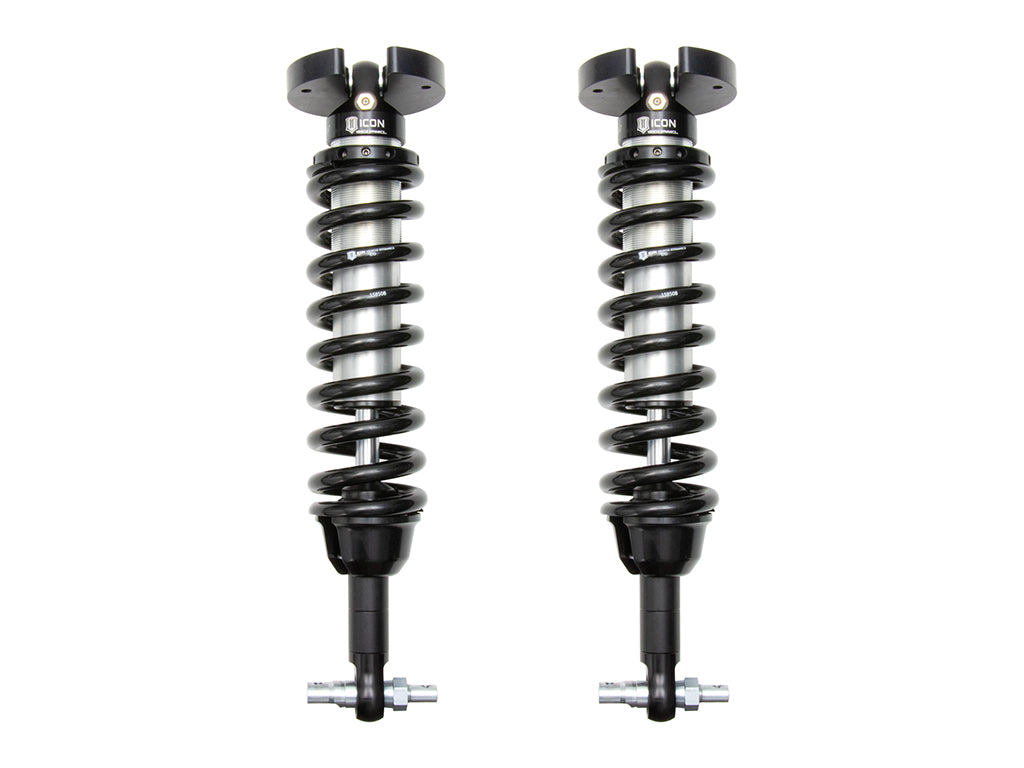

ICON Vehicle Dynamics 71605 - 19-24 GM 1500 FRONT 2.5 VS IR COILOVER KIT

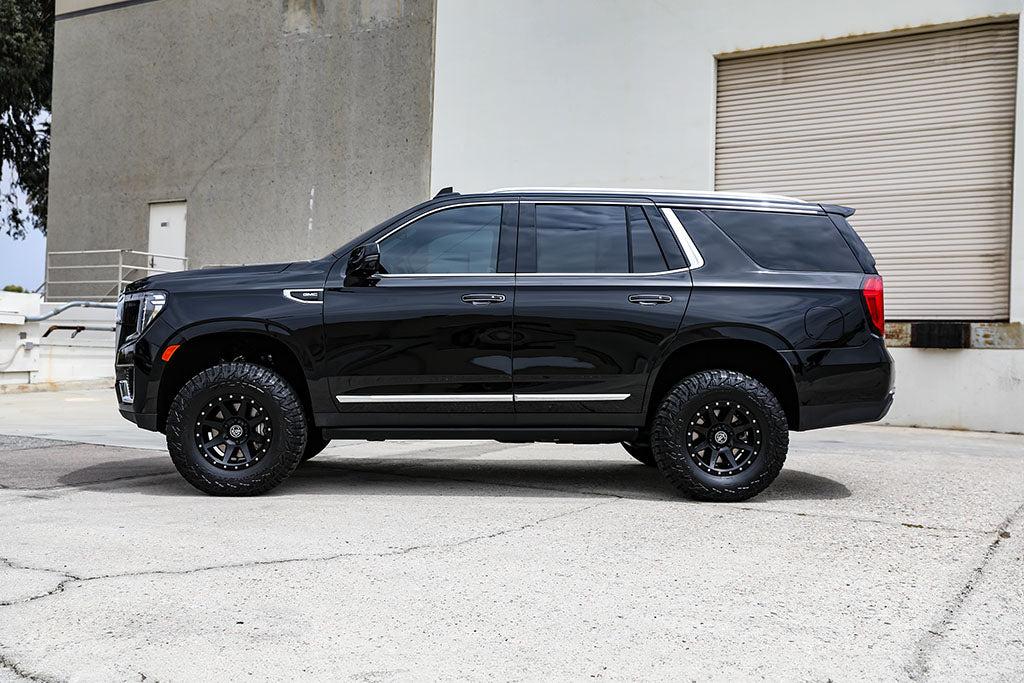

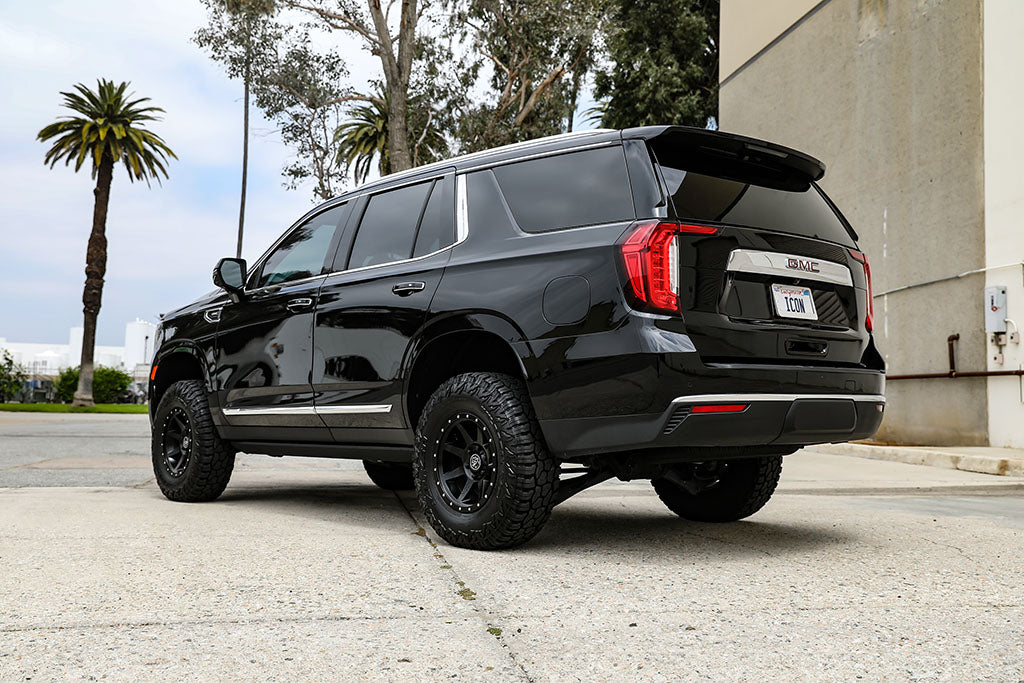

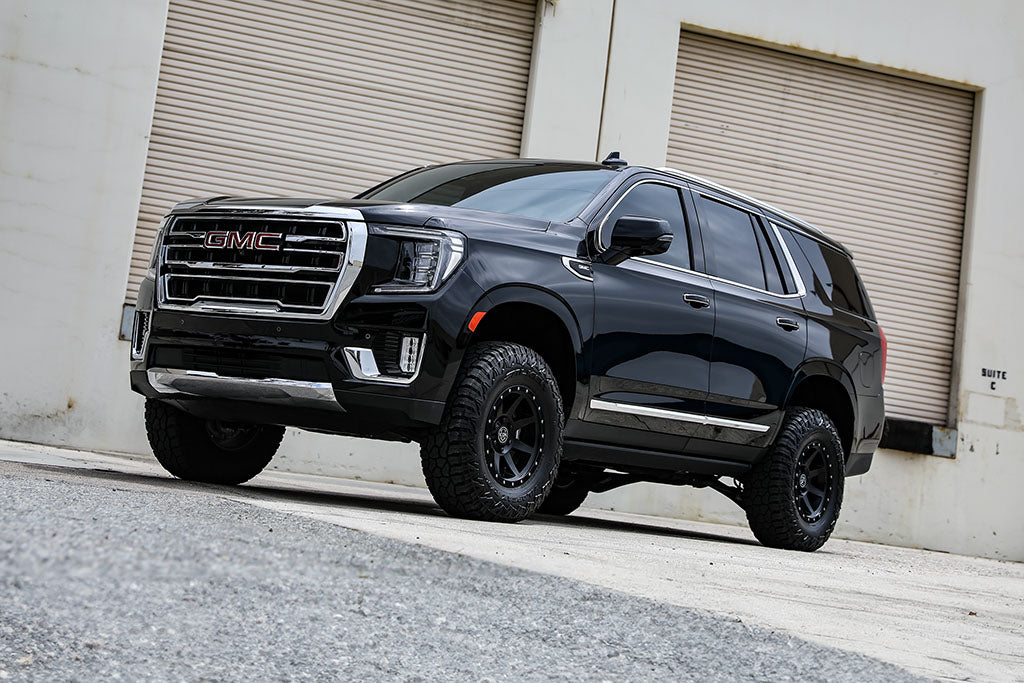

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2024 Chevrolet Silverado 1500/GMC Sierra 1500 trucks and 2021-2023 Chevrolet Tahoe & Suburban/GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel (a 20% increase over stock) while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability on pickup trucks or 2.5-3.25” of lift height adjustability on SUVs, allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup truck or SUV.

Features & Benefits
Increased front wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable coilovers yield 1.5-3.5” or 2.5-3.25" of front lift height over stock, depending on vehicle
Internal nitrogen reservoir ensures consistent performance under hard use
ICON engineered coil springs
Corrosion resistant CAD plated 2.5” diameter shock bodies
7/8" diameter hardened chrome plated shafts
6061 Aircraft grade aluminum CNC machined components
PTFE lined spherical bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin and application specific mounting hardware
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR
Add-On Part: 71022 - 21-23 GM RIDE HEIGHT SIMULATOR
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 17.97
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.23
Front Spring Rate: 700
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2019-2024 GM 1500/2021-2023 GM SUV, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
Travel Length: 5.27
Upper Mount Type: Mounting Plate
Valving Type: Digressive
