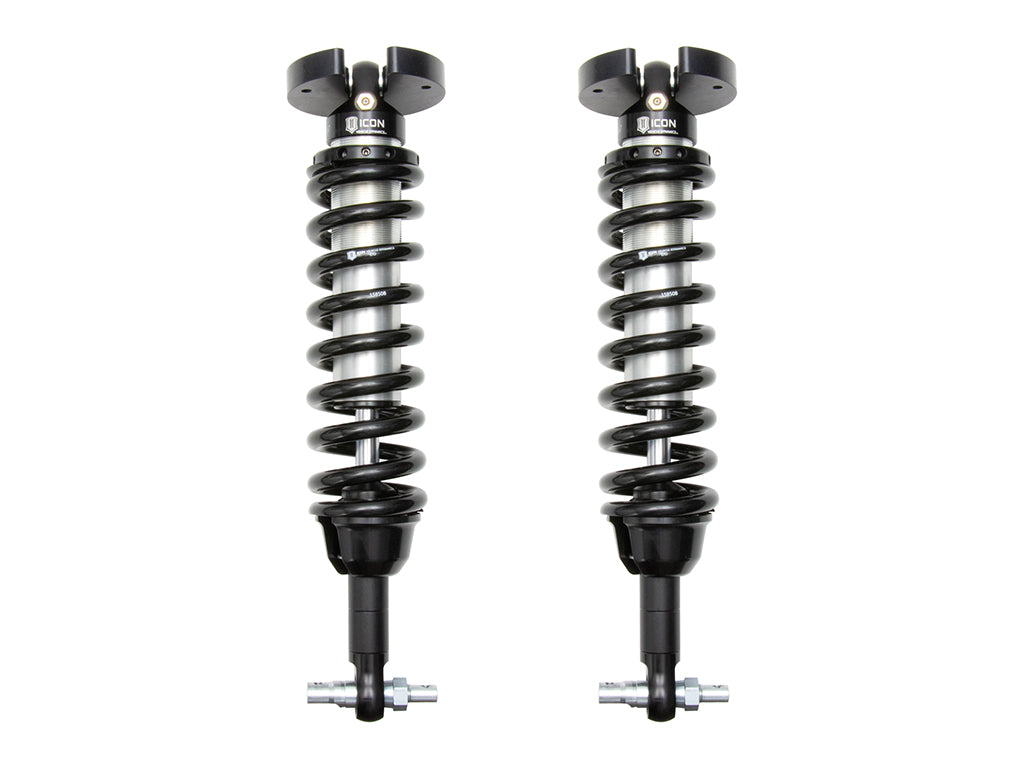

ICON Vehicle Dynamics 71606 - 19-23 GM 1500 EXT TRAVEL 2.5 VS IR COILOVER KIT

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Features & Benefits
Adjustable coilovers yield 1.5-3.5” of front lift height over stock
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" shaft
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 17.97
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.83
Front Spring Rate: 700
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Tires: (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 19-23 GM 1500, 1.5-3.5” Lift, Front, 2.5 VS Extended Travel Coilover Kit
Travel Length: 5.87
Upper Mount Type: Mounting Plate
Valving Type: Digressive
