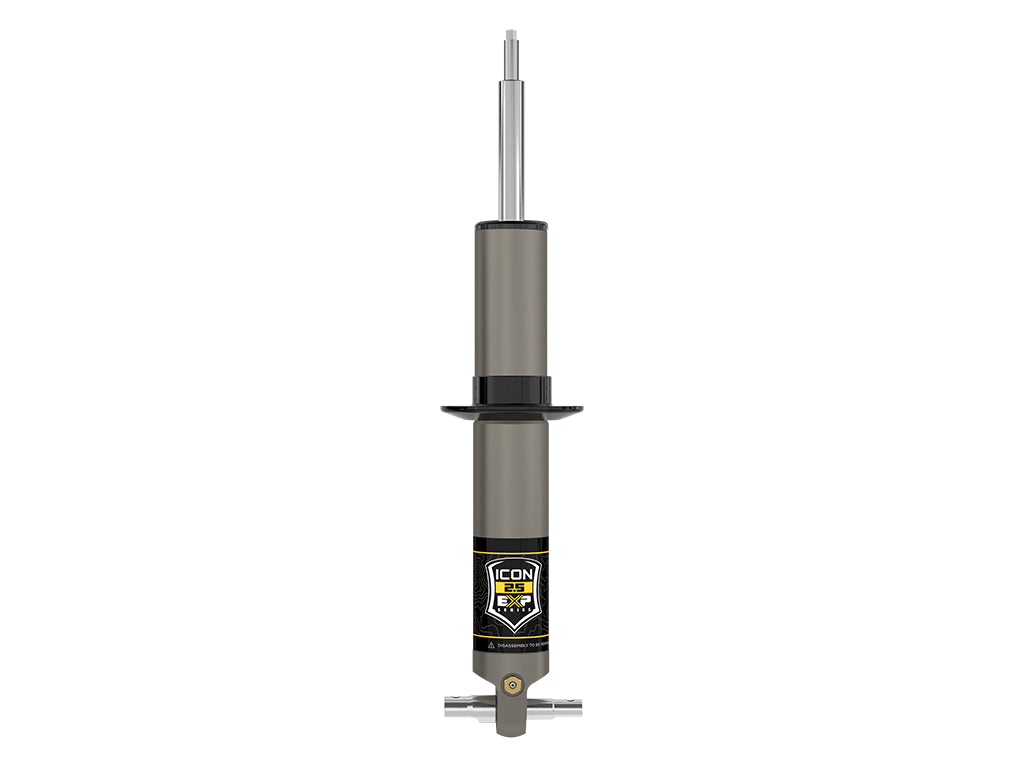

ICON Vehicle Dynamics 71607 - 19-23 GM 1500 FRONT 2.5 EXP COILOVER

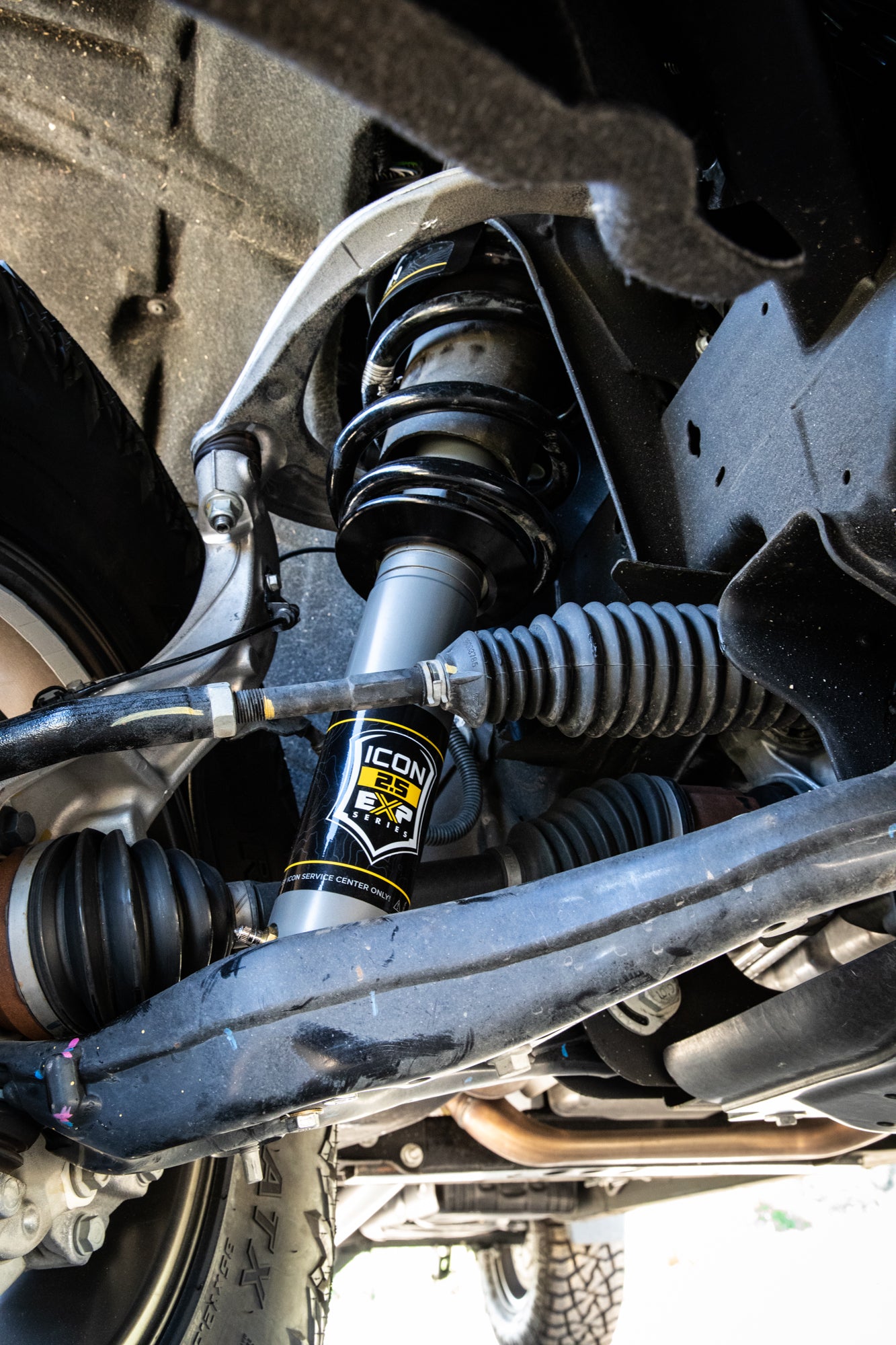

EXP Series for the 2019-2023 GM 1500 is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation.
The 6061-billet aluminum coil spring seat is CNC machined to fit the truck’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375” to 3.75" of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features & Benefits
Vehicle specific design for the 2019-2023 GM 1500 trucks
Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
Utilizes factory coils
2.5 Aluminum Series Shock with Internal Reservoir
CNC machined 6061 aluminum components with a black anodize finish
PTFE lined bearings for extended longevity and minimal deflection
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: No
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring Included: No
Coil Spring Insulator(s) Included: No
Compressed Length: 16.75
Cylinder Color: Gray
Cylinder Finish: Hard Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2.5
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.11
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3.75
Maximum Ride Height Raising Distance: 3.75
Minimum Lift: 2.375
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Flat on Bar Pin
Shock Absorber Rod End Measuring Point: Shoulder of Stem
Title: ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover
Travel Length: 5.37
Upper Mount Type: Mounting Plate
Valving Type: Digressive
