ICON Vehicle Dynamics 78620DJ - 19-24 GM 1500 TUBULAR UCA DJ KIT

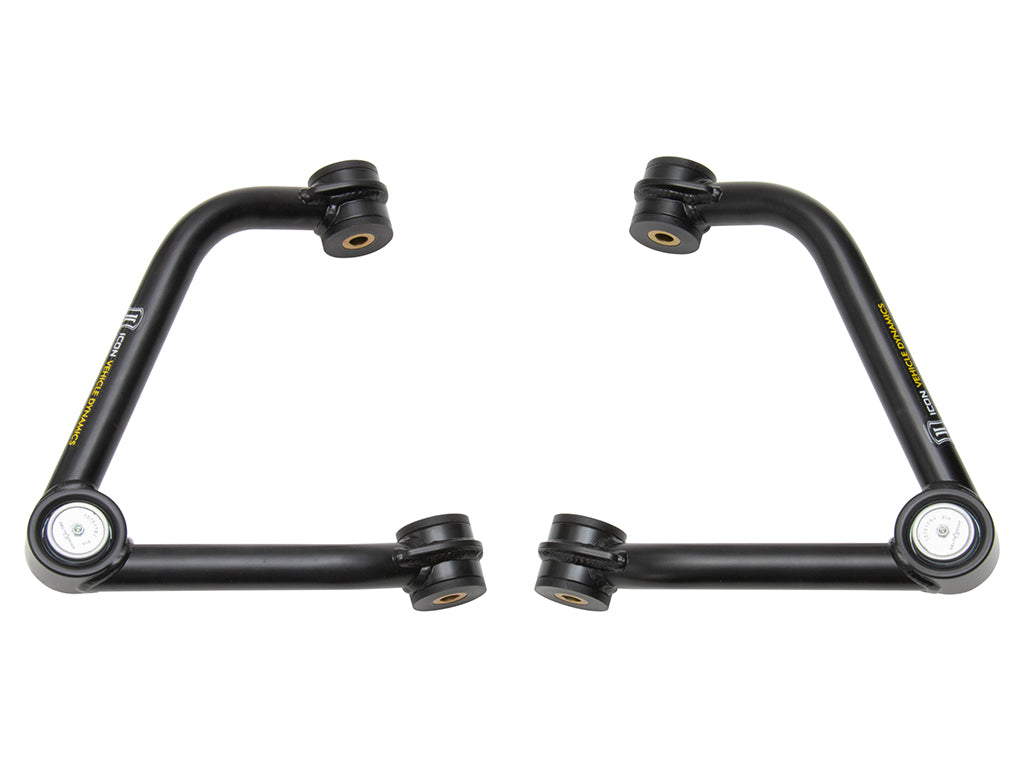

Take the performance of your 2019-2024 GM Silverado/Sierra 1500 pickup or 2021-2023 GM SUV to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 Series coilovers, translating into superior performance and ride quality for your vehicle. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features & Benefits

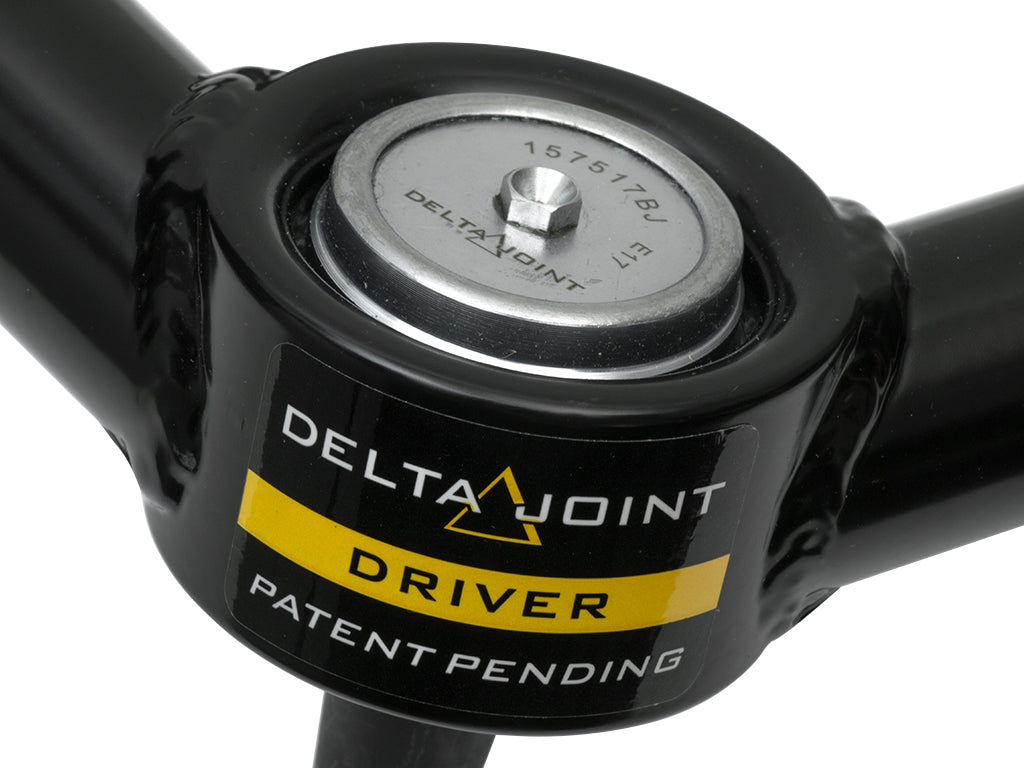

ICON Delta Joint
1026 DOM Steel Construction
CNC Bent Tubing

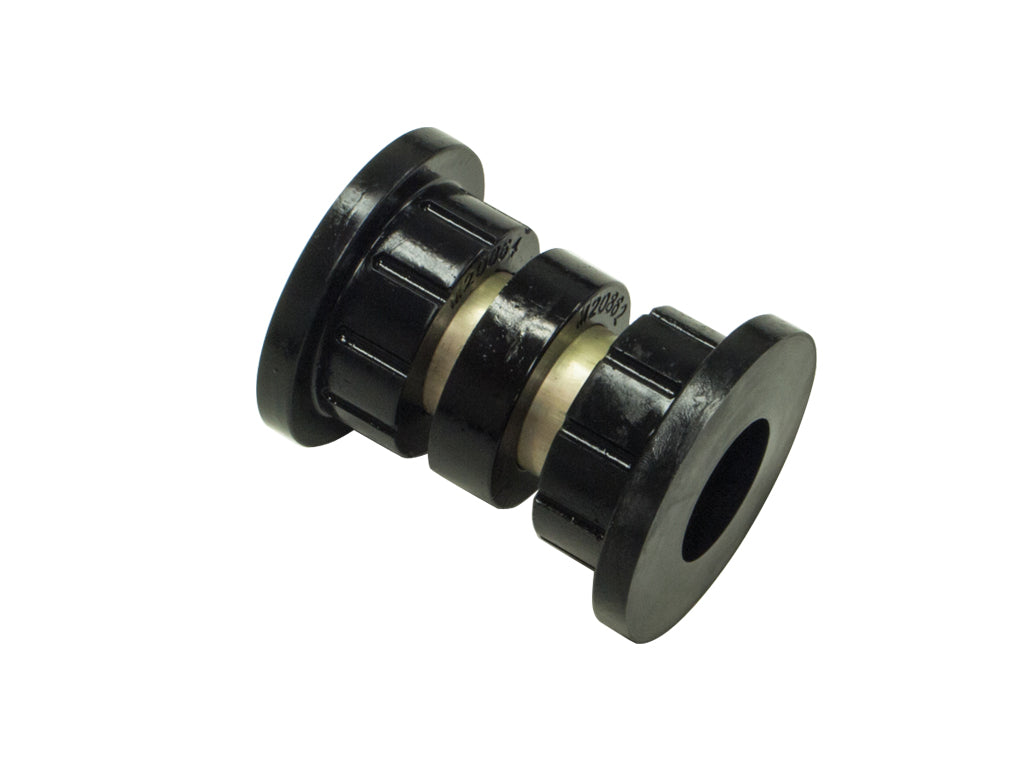

Serviceable Dual Stage Bushings
CNC Machined Bushing Housings and Sleeves
Built-In Caster Correction
Black Semi-Gloss Powder Coat Finish

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Adjustable: No
Adjustable Control Arm: No
Ball Joint Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Bushing Color: Black
Bushing Material: Polyurethane
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Black
Construction: Tubular
Control Arm Color: Black
Control Arm Construction: Tubular
Control Arm Material: DOM Steel
End 1 Type: Bushing
End 2 Type: BALL JOINT
Finish: Powdercoated
Grade Type: Performance

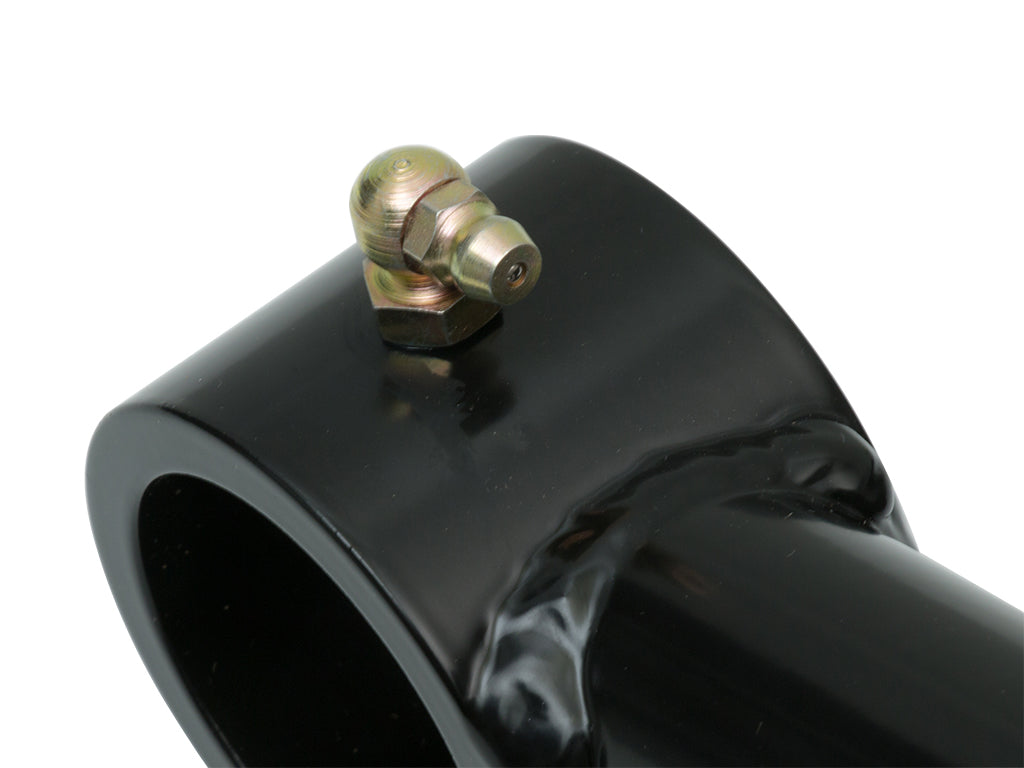

Grease Fitting Included: yes
Material: DOM Steel
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Pre-Greased: No
Quantity: Pair
Reinforced: Yes
Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
Service Parts: 614523 - 78620DJ REPLACEMENT BUSHING AND SLEEVE KIT
Suspension Grade Type: Performance
Suspension Type: Air
Suspension Type: Spring
Title: ICON 2019-2024 GM 1500 Pickup/2021-2023 GM SUV, Tubular Upper Control Arm Kit w/ Delta Joint
