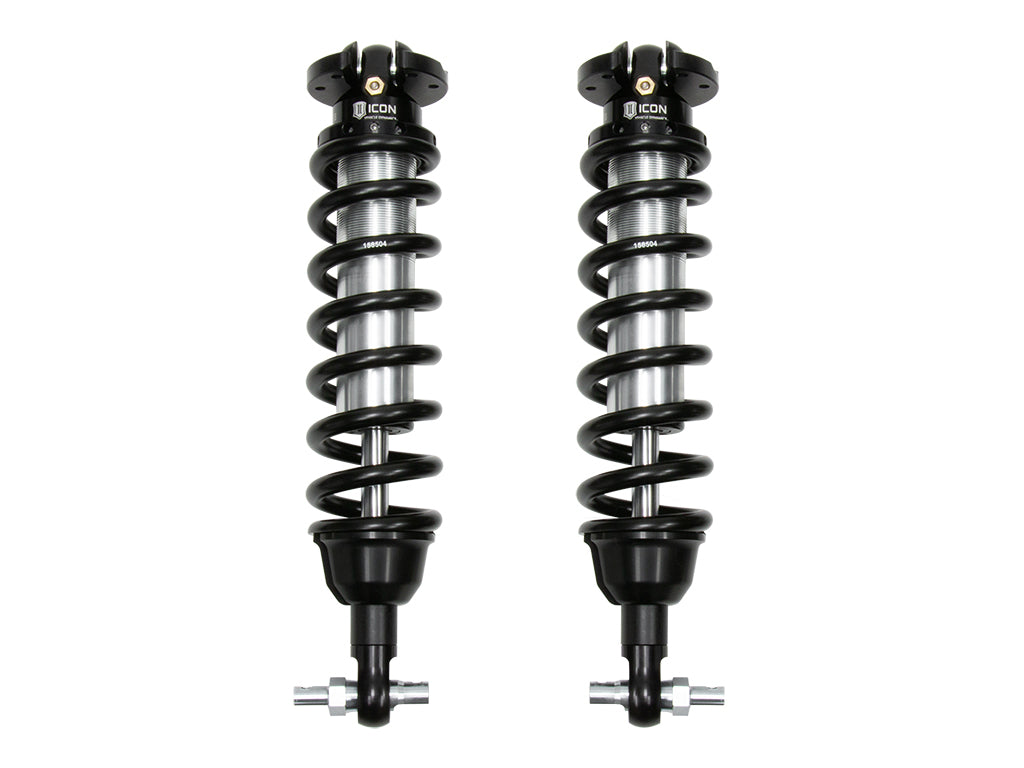

ICON Vehicle Dynamics 91255 - 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.

Features & Benefits
Adjustable coilovers yield 0-3.5” of front lift height
Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

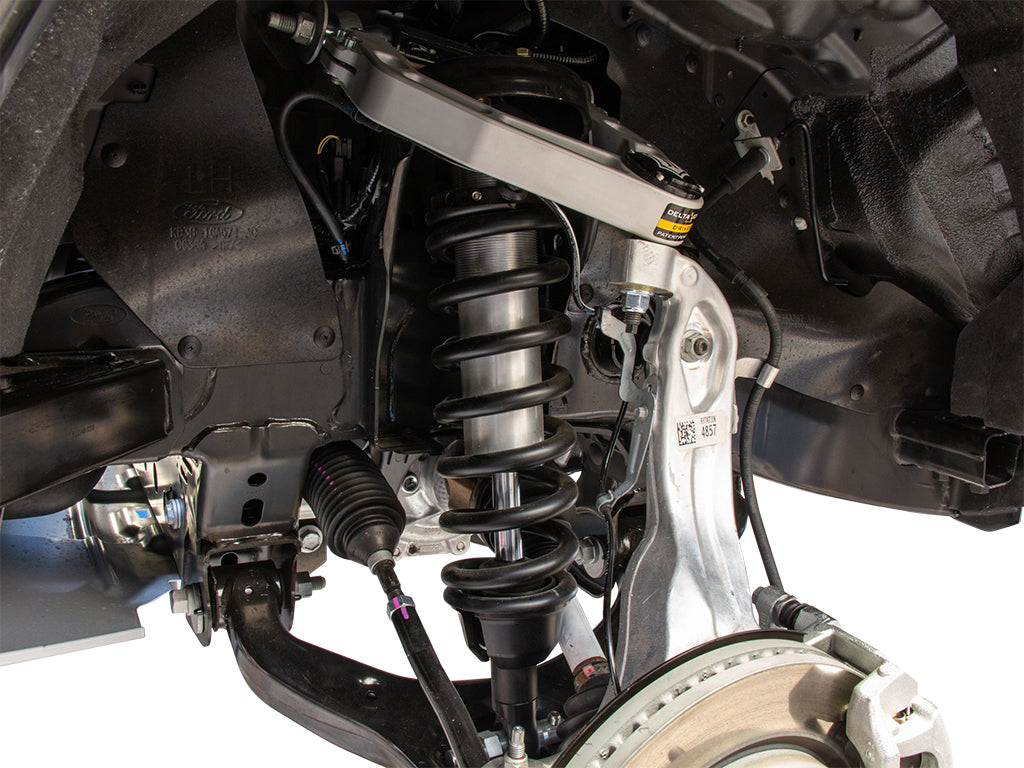

Bolt-in design makes for an easy install into OEM shock location

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 15.82
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 21.38
Front Spring Rate: 650
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 5.75" Backspace / 25mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2019-2023 Ford Ranger, 0-3.5” Lift, Extended Travel 2.5 VS Coilover Kit
Travel Length: 5.57
Upper Mount Type: Mounting Plate
Valving Type: Digressive
