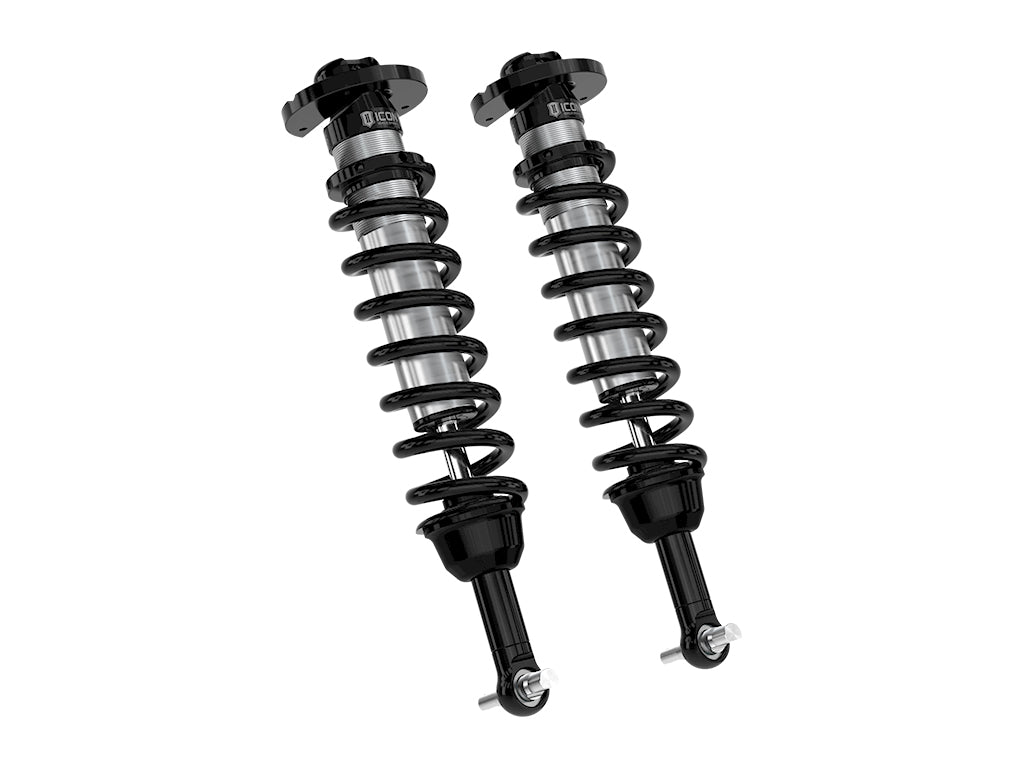

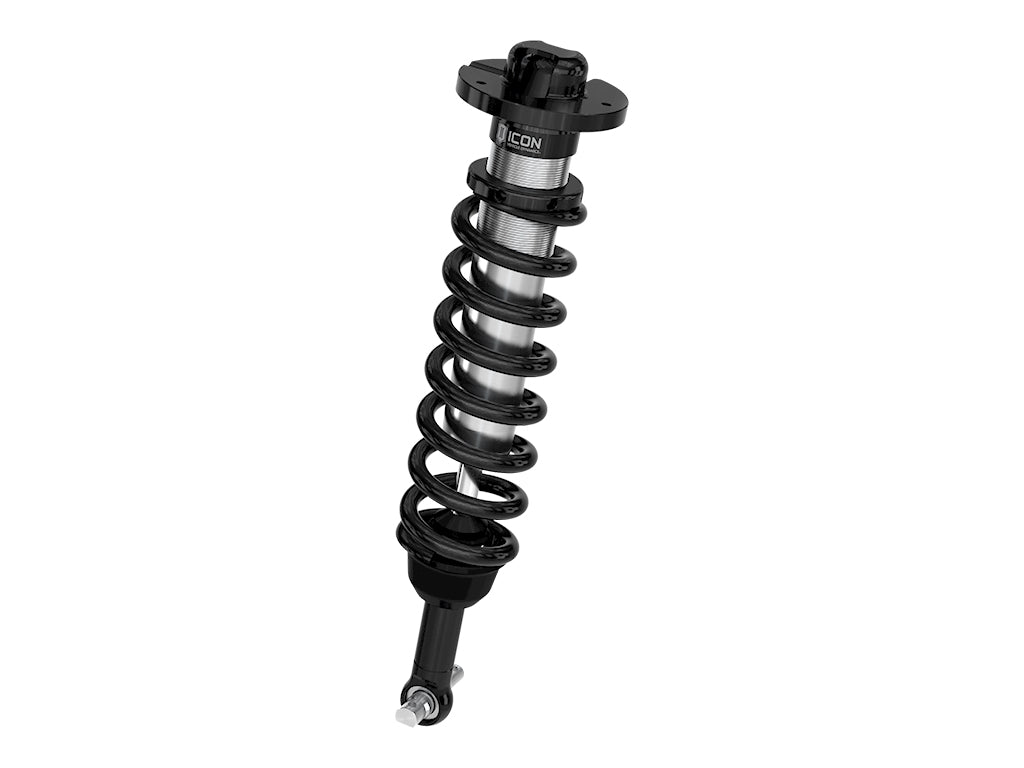

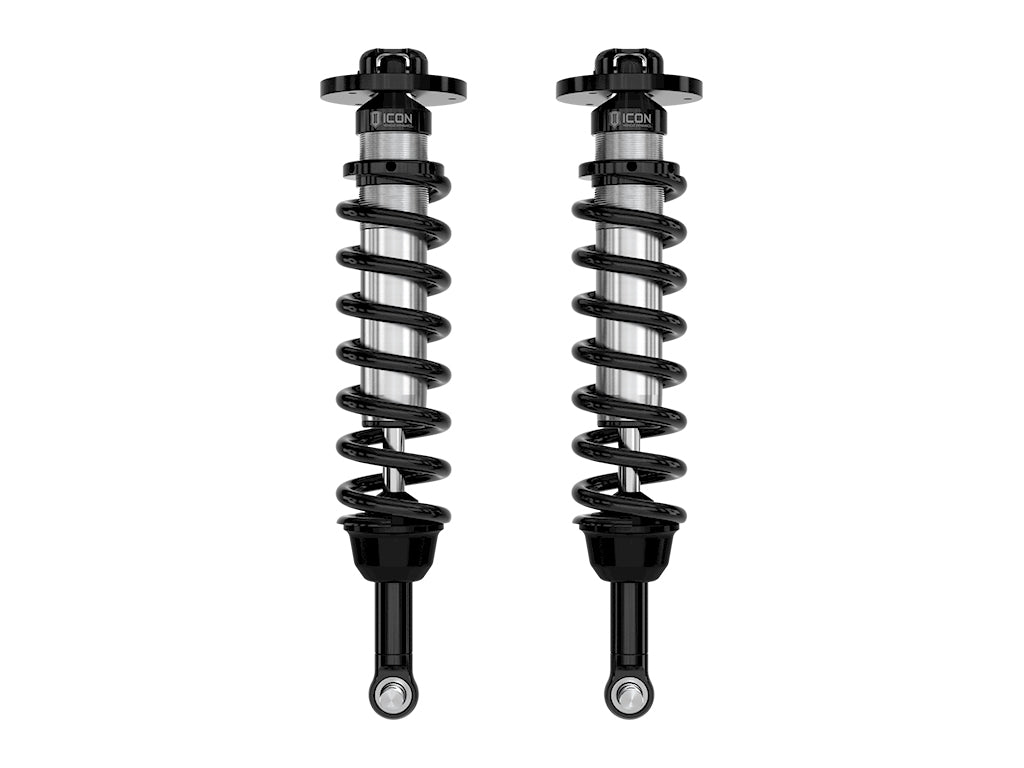

ICON Vehicle Dynamics 91724 - 21-24 F150 4WD 3" LIFT 2.5 VS IR COILOVER KIT

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Features & Benefits
Increased wheel travel and ride quality over stock
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
Adjustable for 2.75-3.5" of lift height over stock
Internal nitrogen reservoir ensures consistent performance under hard use
ICON engineered coil Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
100% Bolt-on - no drilling, cutting, or welding necessary for installation

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 98523DJ - 21-24 F150 BILLET UCA DJ PRO KIT
Add-On Part: 98522DJ - 21-24 F150 TUBULAR UCA DJ PRO KIT
Add-On Part: 96518 - 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
Add-On Part: 97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 18.67
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.88
Front Spring Rate: 550
Gas Charged: yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 2.75
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Front, V.S. 2.5 Series Coilovers, Internal Reservoir, Pair
Travel Length: 5.22
Upper Mount Type: Mounting Plate
Valving Type: Digressive
