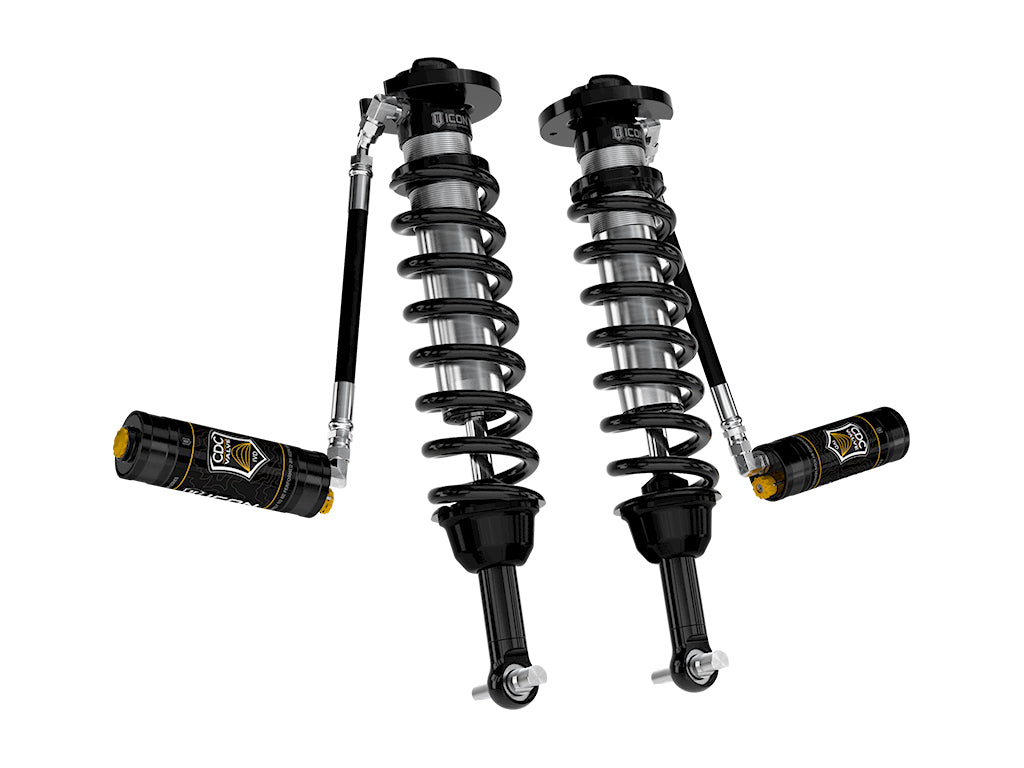

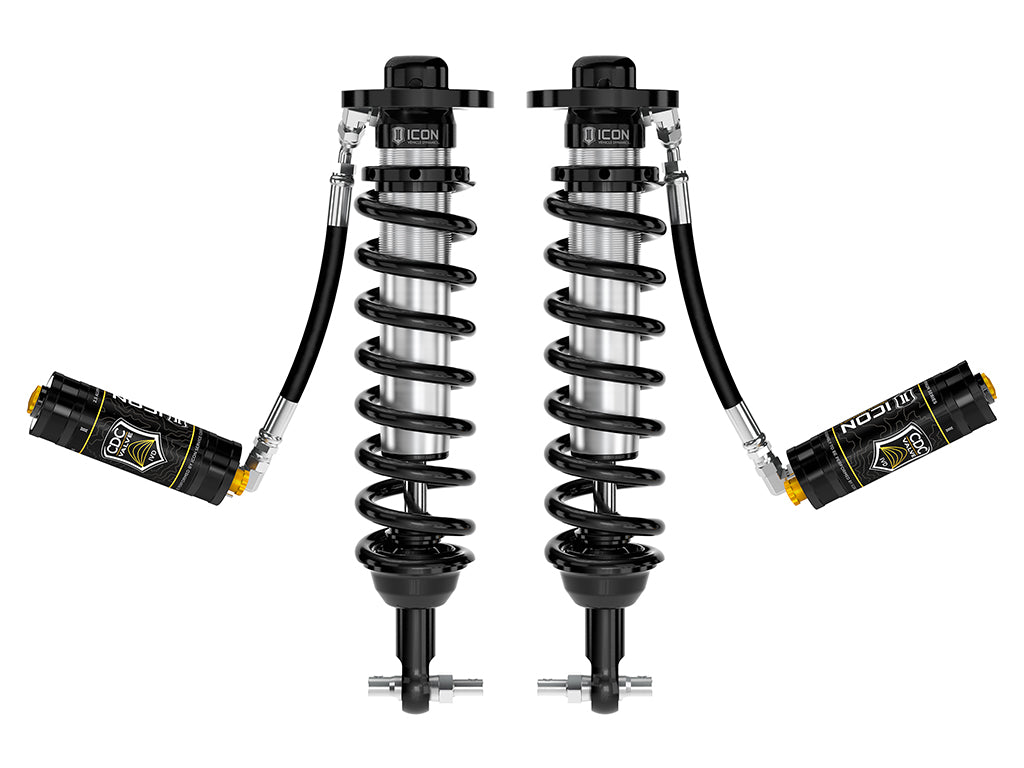

ICON Vehicle Dynamics 91824C - 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDCV COILOVER

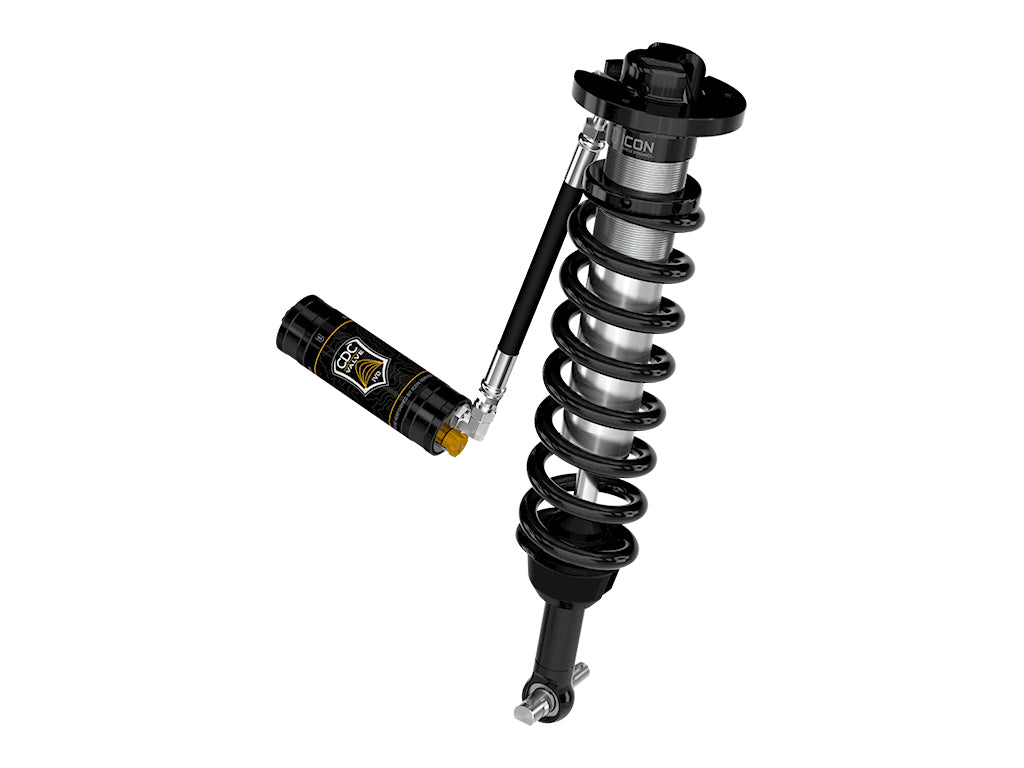

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

Features & Benefits
Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" shaft
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
100% Bolt-on - no drilling, cutting, or welding necessary for installation

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 98523DJ - 21-24 F150 BILLET UCA DJ PRO KIT
Add-On Part: 98522DJ - 21-24 F150 TUBULAR UCA DJ PRO KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 97721CP - 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 18.67
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 24.03
Front Spring Rate: 550
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 4.5
Maximum Ride Height Raising Distance: 4.5
Minimum Lift: 3.5
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2021-2024 Ford F-150 4WD/Tremor, 3.5-4.5"/2.5-3" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDCV, Pair
Travel Length: 5.37
Upper Mount Type: Mounting Plate
Valving Type: Digressive
