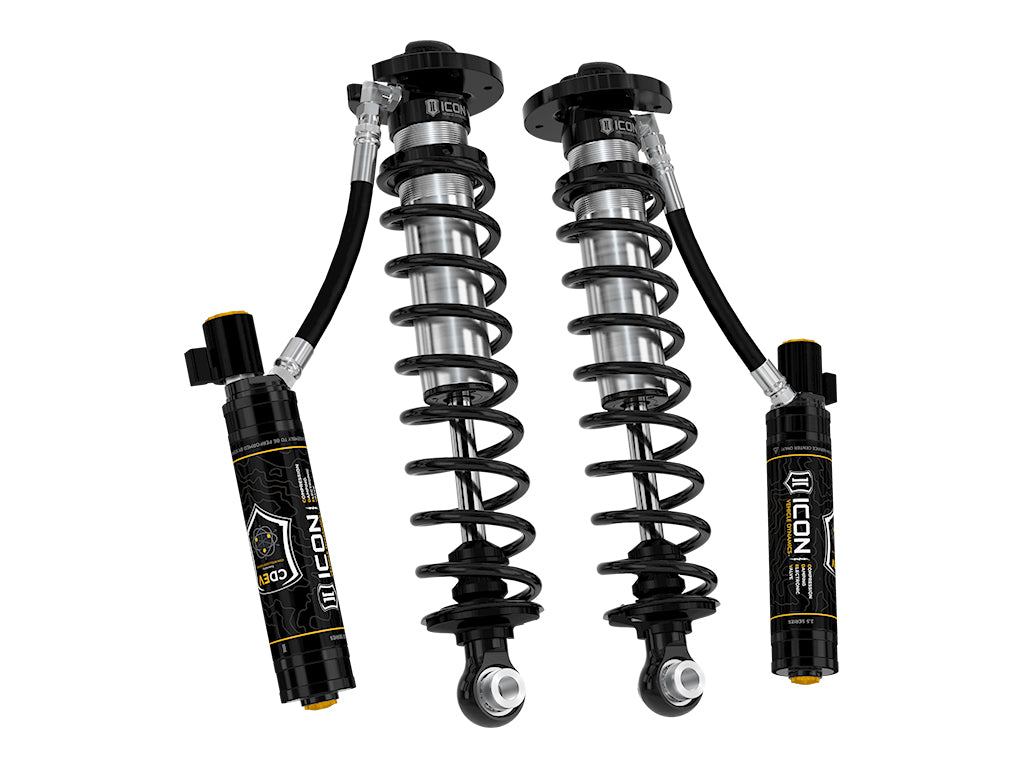

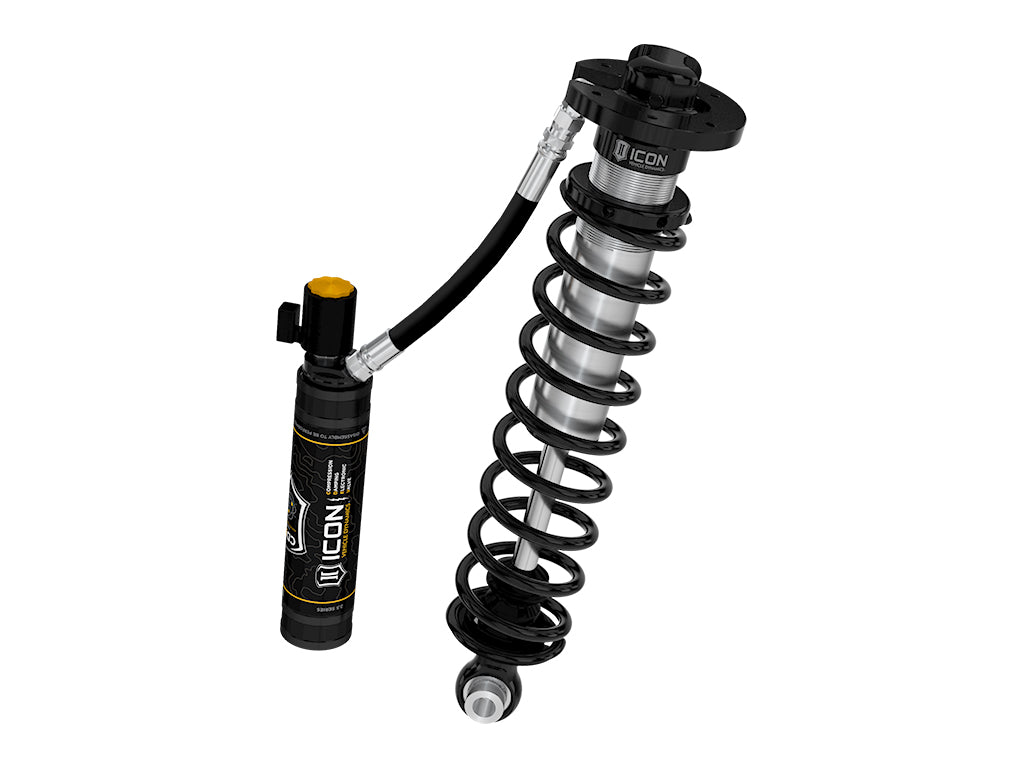

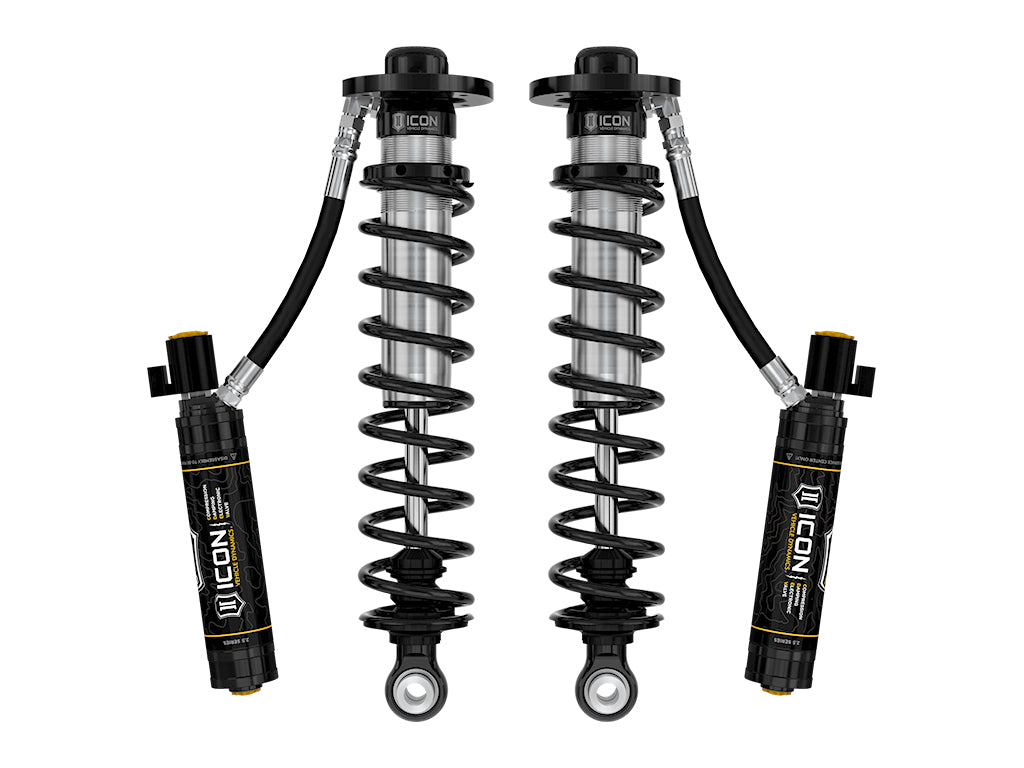

ICON Vehicle Dynamics 91836E - 22-23 FORD F150 LIGHTNING LOWERED REAR 2.5 VS RR

Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable rear lowered height range of 0-4" under stock. With ICON's vehicle specific shock length, valving, and the larger 2.5" shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.
Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.
Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.

Features & Benefits
Height-adjustable coilovers offer 0-4" of lowered height adjustment
Vehicle specific tuned front shocks for superior shock damping and vehicle control
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Remote reservoir to maintain cooler operating temperatures and house CDE Valves
Increased compression travel compared to stock
ICON engineered coil springs with optimized spring rates for improved ride quality
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
FK Rod End bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on - no cutting or welding necessary for installation

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Compressed Length: 14.39
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.26
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Drop: 2
Maximum Ride Height Lowering Distance: 4
Minimum Drop: 0
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate: 225
Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 20x9" with 6” Backspace / 25mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eyelet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Title: ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear
Upper Mount Type: Mounting Plate
Valving Type: Digressive
