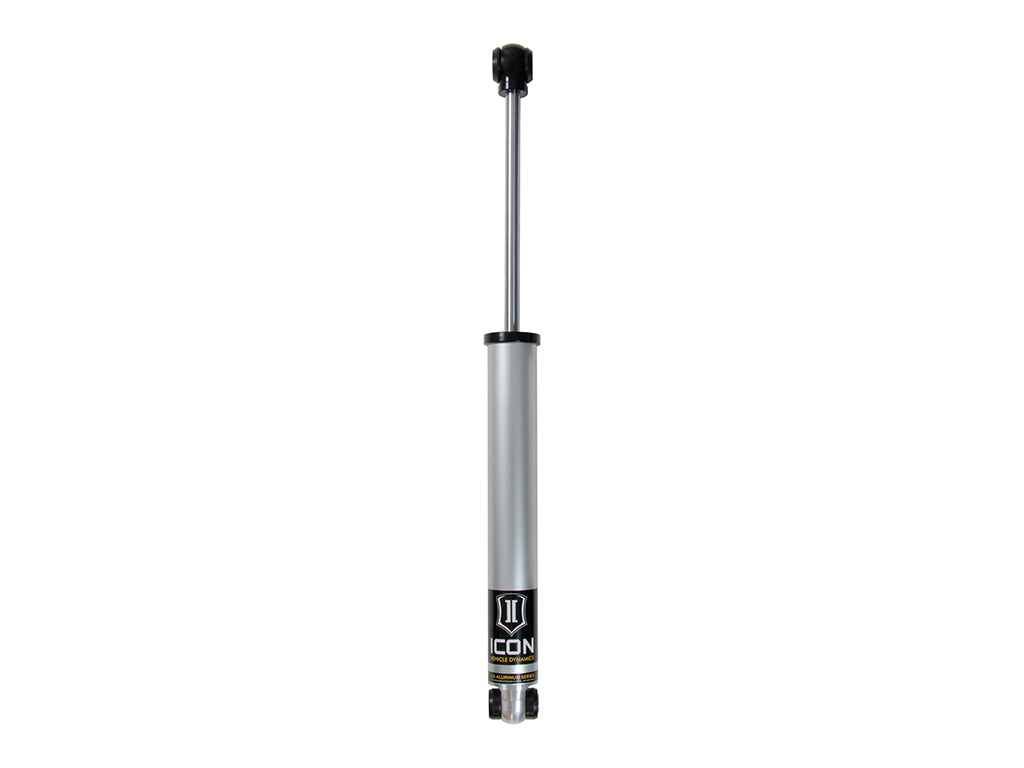

ICON Vehicle Dynamics 96519 - 19-23 RANGER 0-1.5" REAR 2.0 VS NR

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features & Benefits
Premium Grade 5WT Shock Oil for consistent suspension damping along a wide temperature range
Nitrogen Charged Monotube Design with Internal Reservoir
One Piece Linear/Digressive Piston Design with Vehicle Specific Valving for Unsurpassed Performance and Ride Quality On and Off-road
5/8" Chrome Plated, Hardened Steel Shaft resists corrosion and pits
6061 Aluminum Rod End, Top Cap and internals insure Strength and Durability
Polyurethane Bushings and zinc plated sleeves for OE factory type Fitment
6063 Anodized Aluminum body for Superb Heat Dissipation, Excellent Corrosion Resistance, and High TechAppearance
Buna Top Out Bumper for noise free operation
100% Rebuildable
100% Revalveable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: No
Coil Spring Insulator(s) Included: No
Color: Black
Color: Silver
Configuration: Performance
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: No
Dust Shield: No
Dust Shield Included: No
External Reservoir: No
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Ride Height Raising Distance: 1.5
Mounting Hardware Included: No
Quantity: 1
Remote Reservoir: NO
Rod Diameter: .625
Self-Leveling: No
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eylet
Suspension Type: Spring
Title: ICON 2019-2023 Ford Ranger, 0-1.5” Lift, Rear 2.0 VS Shock
Upper Mount Type: Eyelet
Valving Type: Digressive
Valving Type: Linear
