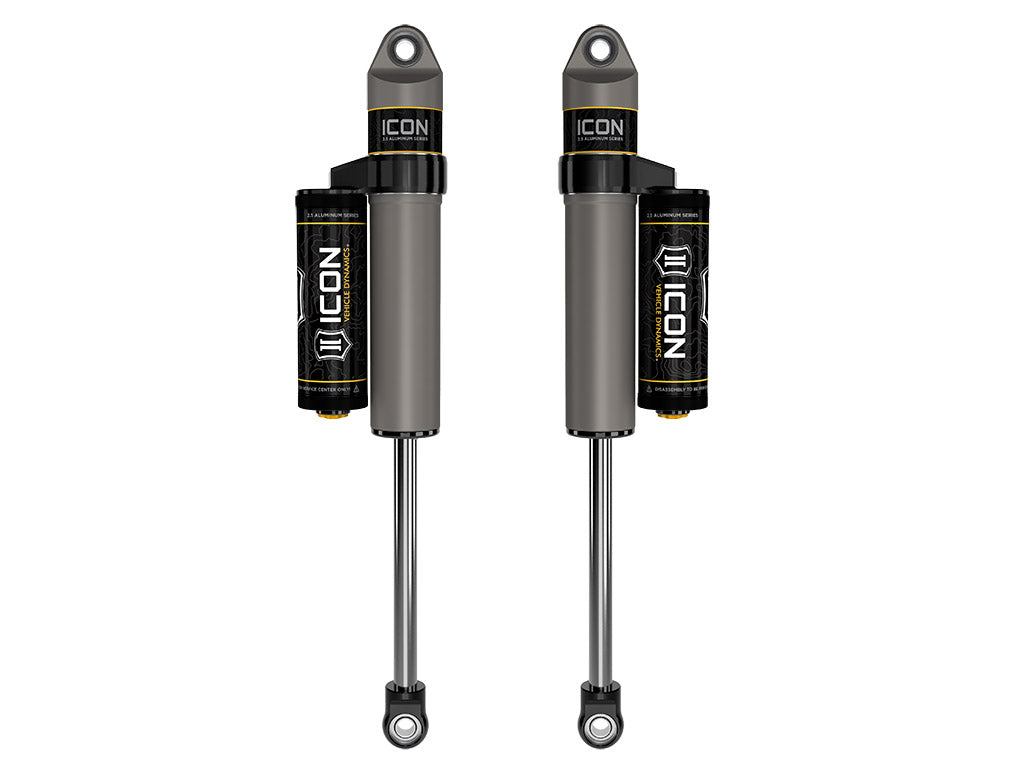

ICON Vehicle Dynamics 97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PA

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features & Benefits
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
100% Rebuildable
100% Revalveable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable: NO
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Boot Included: NO
Bore Diameter: 2.25
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
External Reservoir: Yes
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: EYELET
Mounting Hardware Included: Yes
Reservoir Type: Piggyback
Service Parts: 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Title: ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
Tube Outside Diameter: 2.5
Upper Mount Type: EYELET
Valving Type: Digressive
