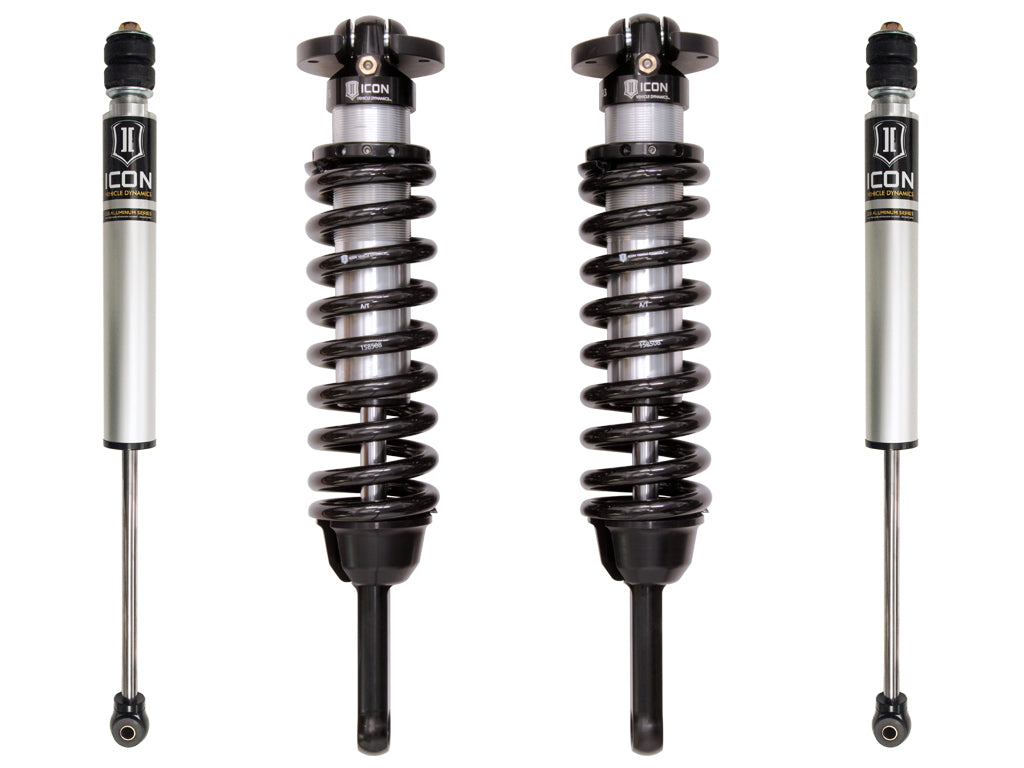

ICON Vehicle Dynamics K53001 - 05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 1 SUSPENS

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features & Benefits
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
ICON engineered coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear shocks with 5/8" shaft
Bolt-on system means no cutting or welding necessary for install

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Coils Quantity Front: 2
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3.5
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Title: ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 1 Suspension System
