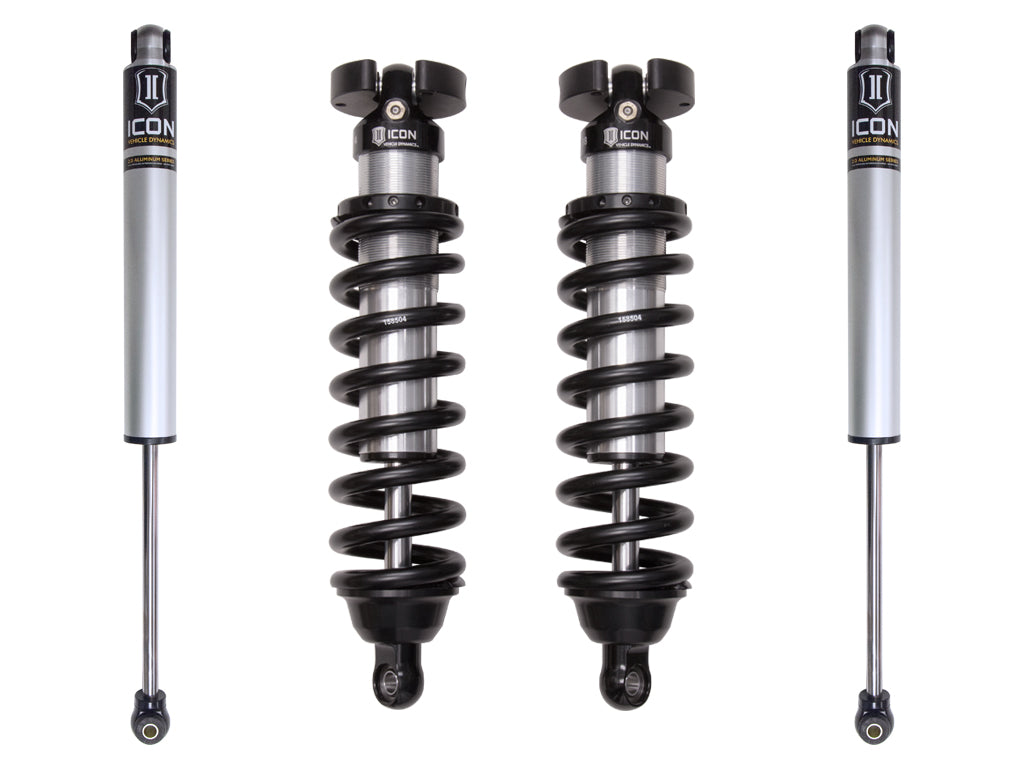

ICON Vehicle Dynamics K53011 - 95.5-04 TACOMA 0-3" STAGE 1 SUSPENSION SYSTEM

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics '96-'04 Toyota Tacoma 4WD/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features & Benefits
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
FK rod end bearings for extended longevity and minimal deflection
2.0 aluminum body rear Emulsion shock with 5/8" polished chrome plated steel shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT
Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coils Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3
Minimum Lift Front: 0
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Reservoir Style: Emulsion
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Title: 95.5-04 TACOMA 0-3" STAGE 1 SUSPENSION SYSTEM
