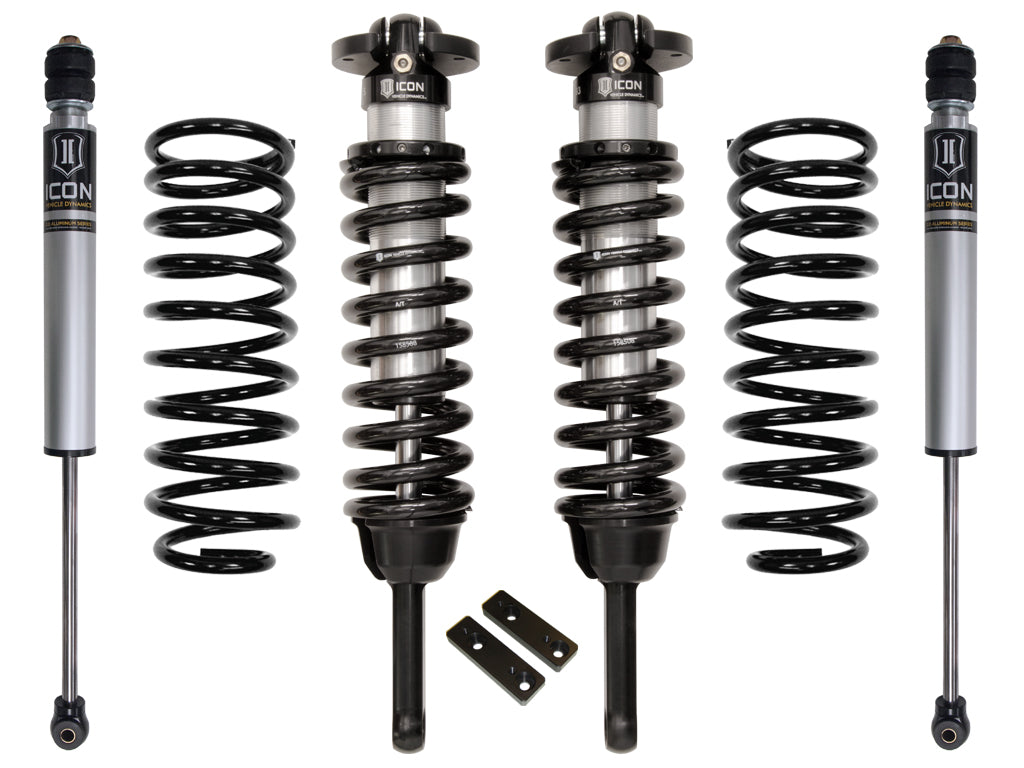

ICON Vehicle Dynamics K53061 - 10-24 4RNR/10-14 FJ 0-3.5" STAGE 1 SUSPENSION SYS

This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.

Features & Benefits
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear IFP shock with 5/8" shaft
Bolt-on system means no cutting or welding necessary for install

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
Add-On Part: 54200 - 07-14 FJ/03-24 4RNR/03-23 GX REAR ADJ TRACK BAR KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3.5
Maximum Lift Front: 3.5
Maximum Lift Rear: 2
Minimum Lift Front: 0
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Linear
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Title: ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift, Stage 1 Suspension System
