ICON Vehicle Dynamics K53192 - 22-25 TUNDRA 0-3" STAGE 2 SUSPENSION SYSTEM BILLE

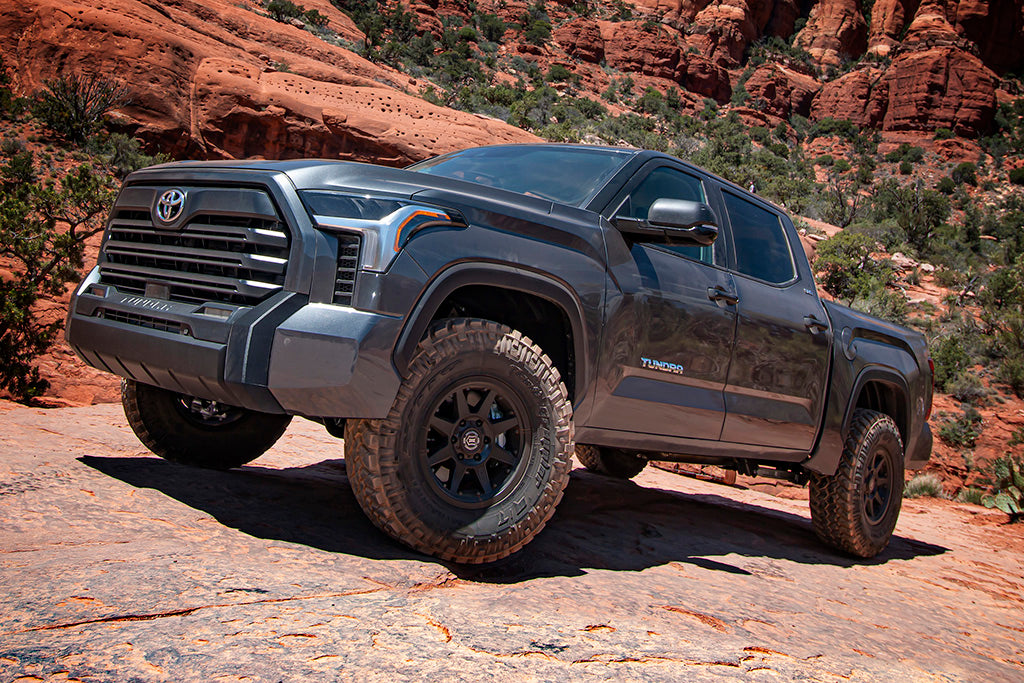

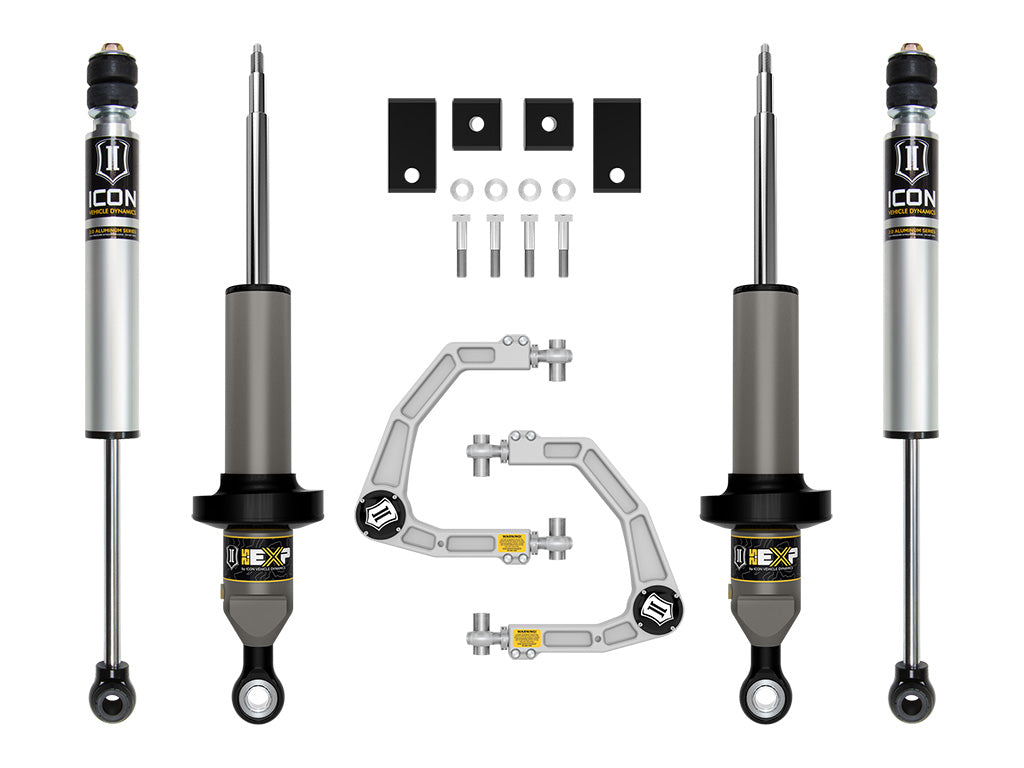

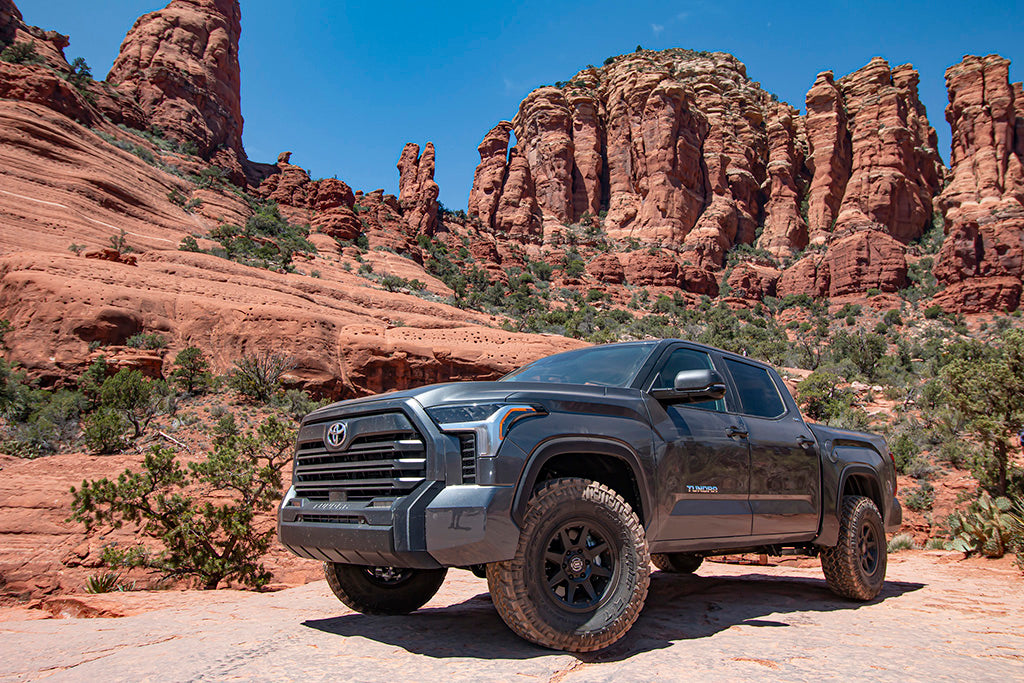

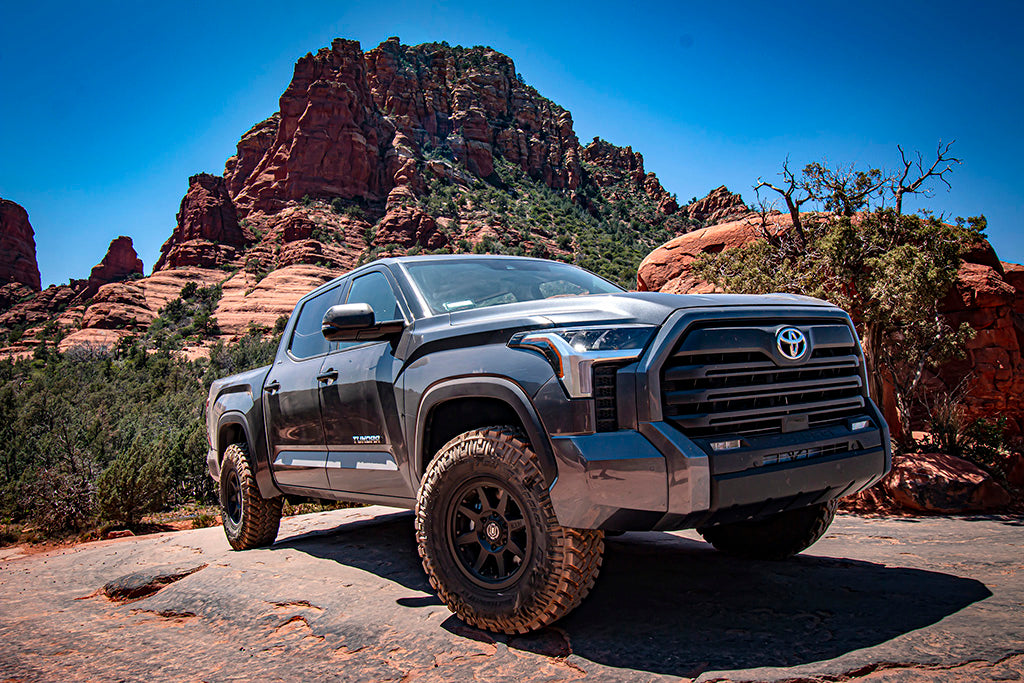

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2025 Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
This Stage 2 system features the 2022-2025 Toyota Tundra EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tundra’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

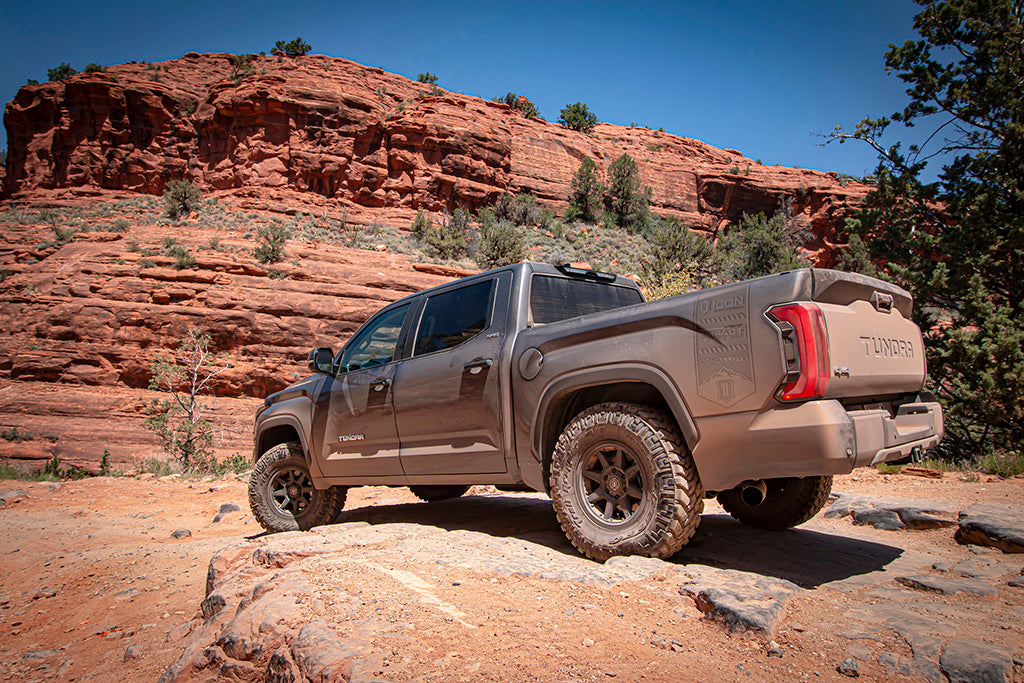

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Features & Benefits
Vehicle specific design for 2022-2025 Toyota Tundra
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-3” of front lift over stock with the use of snap ring and included billet UCAs
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT
Add-On Part: 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3
Minimum Lift Front: 0
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Internal
Shocks Included: Yes
Title: ICON 2022-2025 Toyota Tundra, 0-3" Lift, Stage 2, 2.5 EXP Suspension System, Billet
