ICON Vehicle Dynamics K53221 - 05-23 TACOMA 0-2" STAGE 2 EXP SUSPENSION SYSTEM

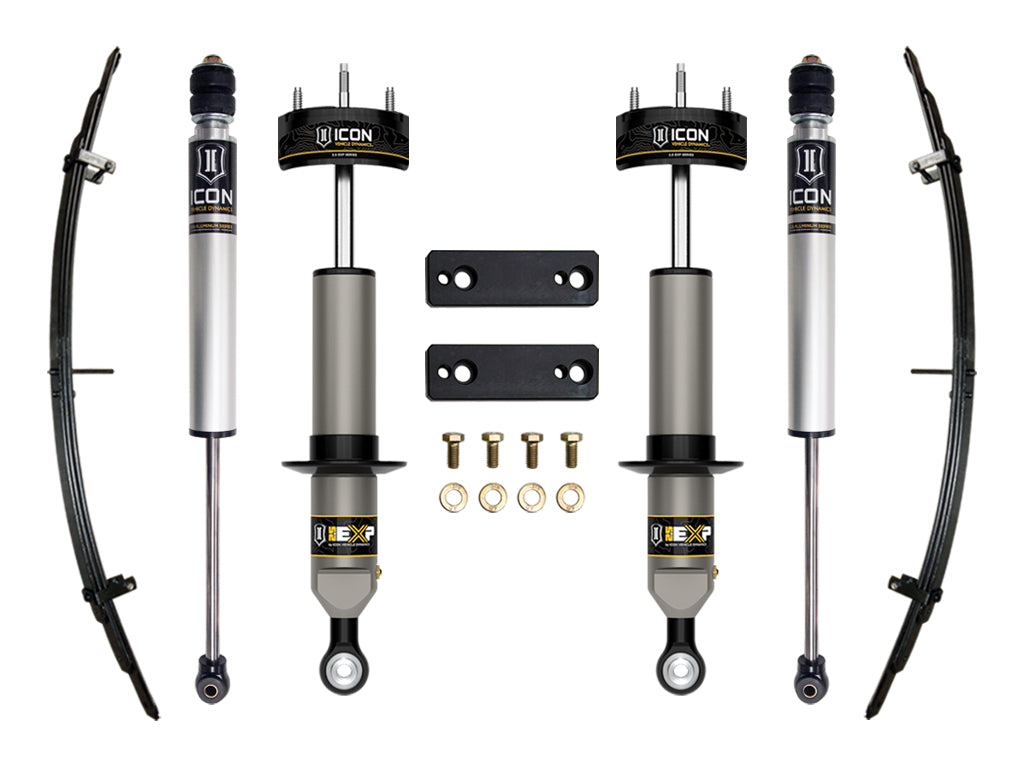

The ICON Vehicle Dynamics Stage 2 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
This Stage 2 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2” of suspension lift, custom-tuned performance and maximum travel all in an economical package.
The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The rear leaf spring Add-a-Leaf kit improves ride quality by softening the rear spring rate compared to stock. This 3-leaf spring installs in place of the OE overload leaf and eliminates the aggressive ramp up in spring rate provided by the OE overload. This equates to improved ride quality and suspension performance, on and off-road, while also lifting the rear of the truck 1.5” over stock.
Rounding out the Stage 2 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.

Features & Benefits
Vehicle specific design for 2005-2023 Toyota Tacoma
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
Allows for full wheel travel without overstressing OE components
Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Adjustable Damping: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Grade Type: Performance
Maximum Lift Front: 2
Maximum Lift Rear: 1.5
Minimum Lift Front: 0
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Linear
Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Shocks Included: Yes
Title: ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System
