ICON Vehicle Dynamics K53292TS - 24-25 TACOMA 1.25-3" STAGE 2 SUSPENSION SYSTEM

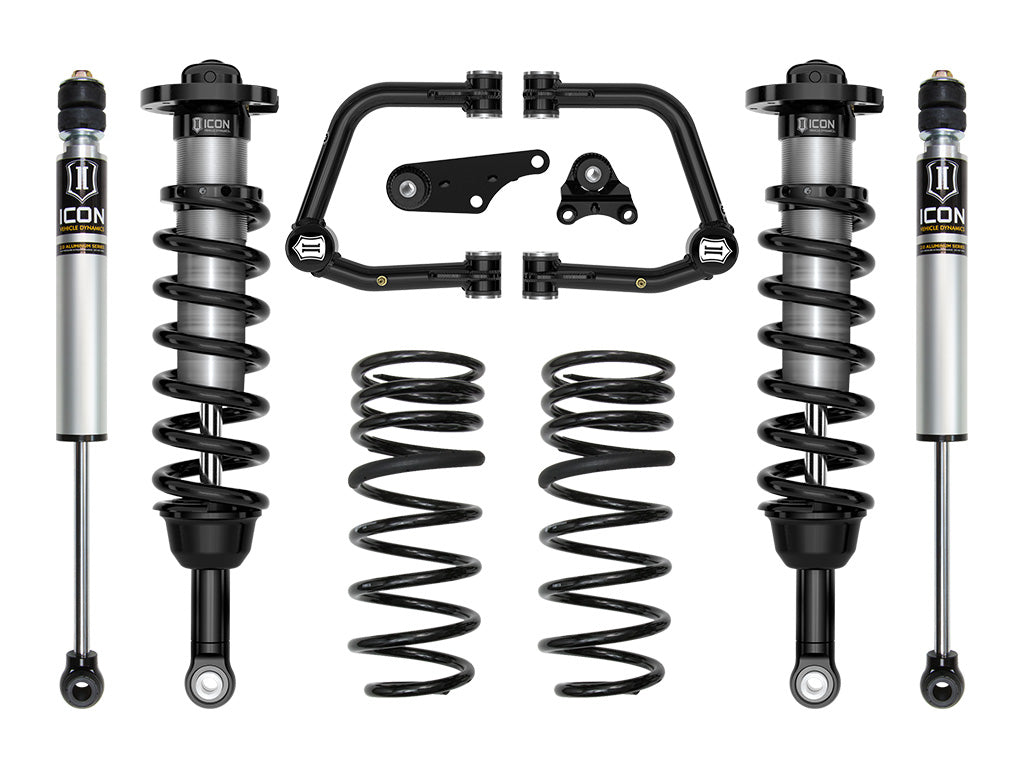

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features & Benefits
Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 54202 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 56100 - 07-14 FJ/03-25 4RUNNER/22-25 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56116 - 24-25 TACOMA FRONT SKID PLATE
Add-On Part: 56117 - 24-25 TACOMA/25 4RUNNER GAS TRANSMISSION SKID PLATE
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3
Maximum Lift Rear: .5
Minimum Lift Front: 1.25
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2
Rear Spring Rate Type: Progressive Triple Rate
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel

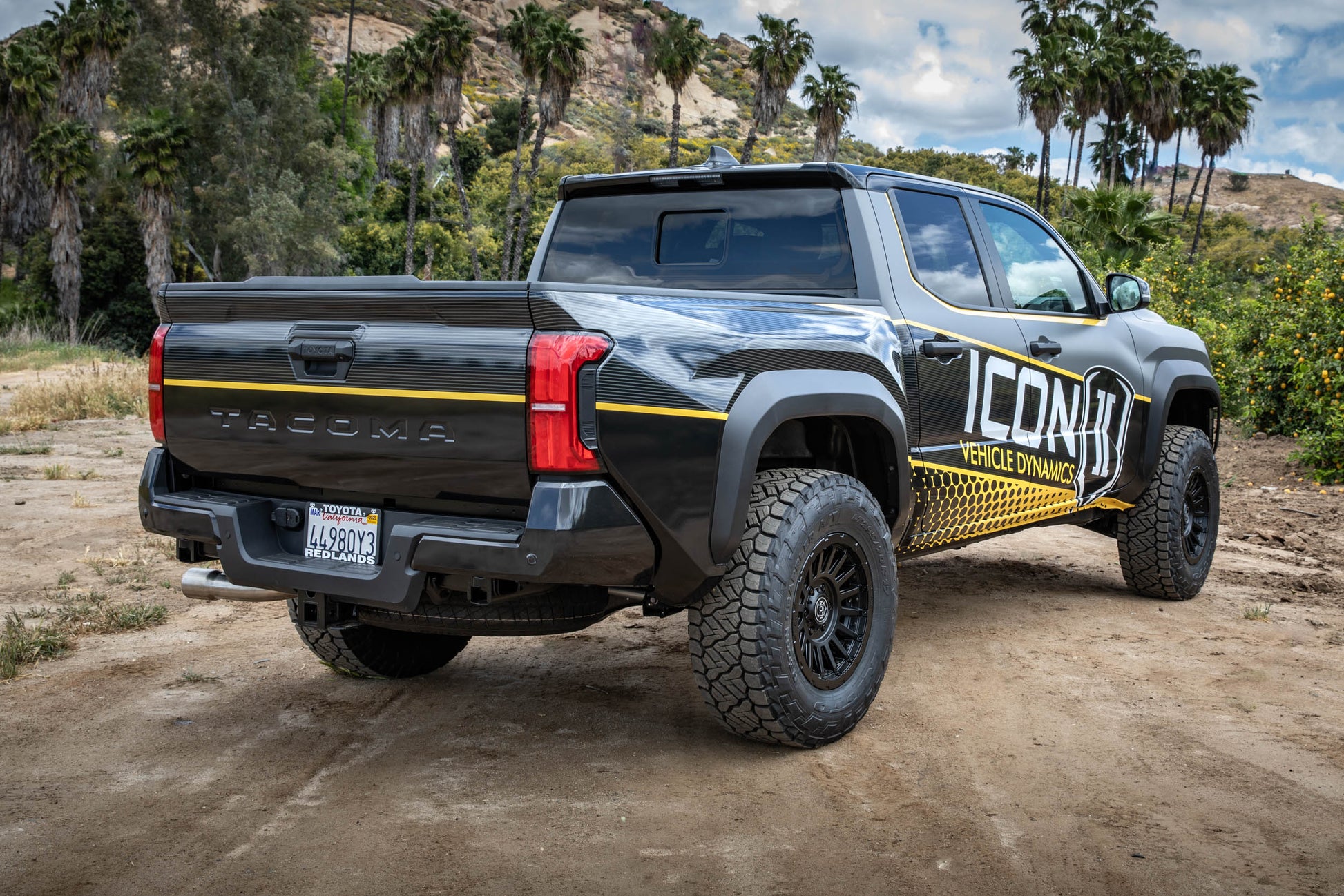

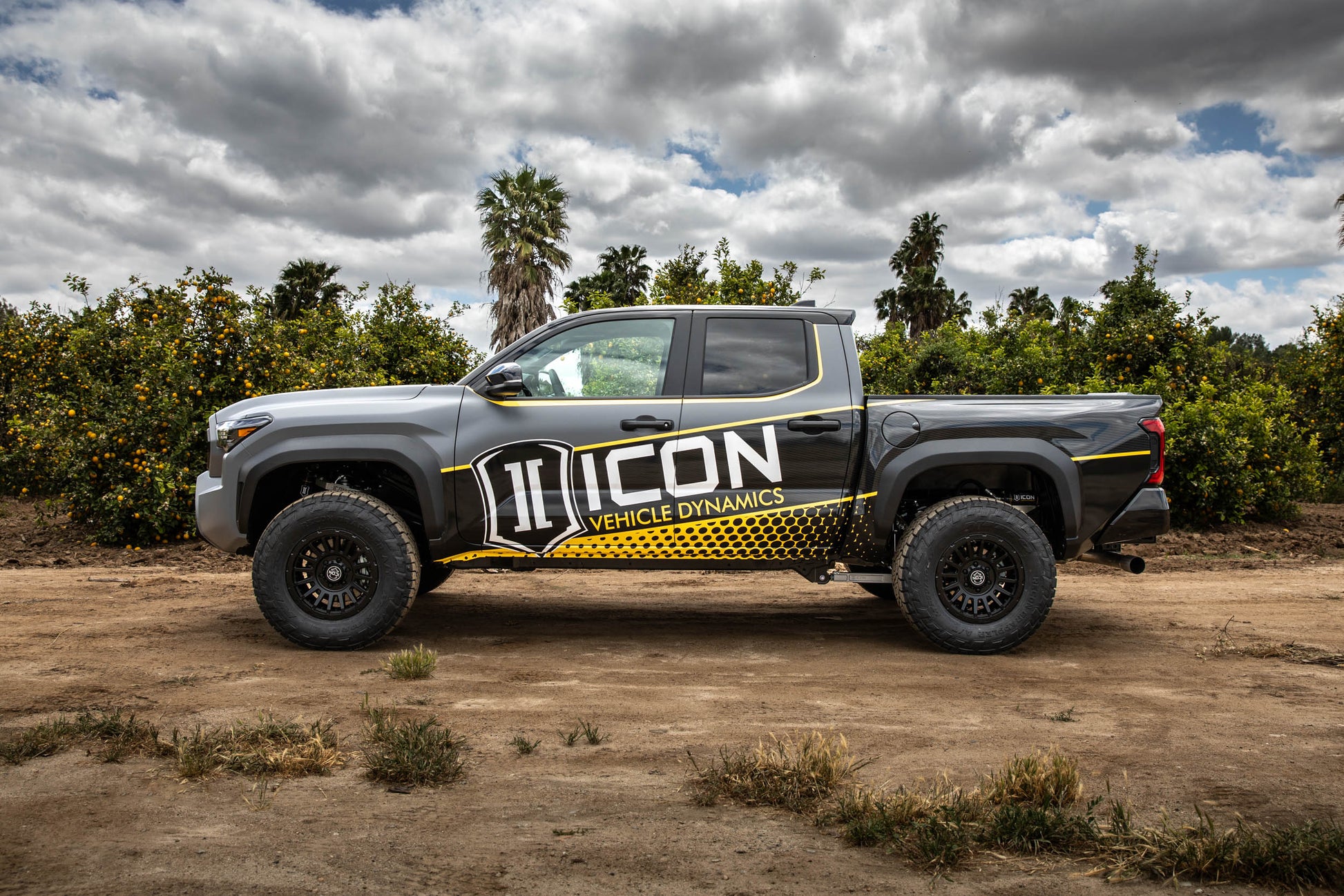

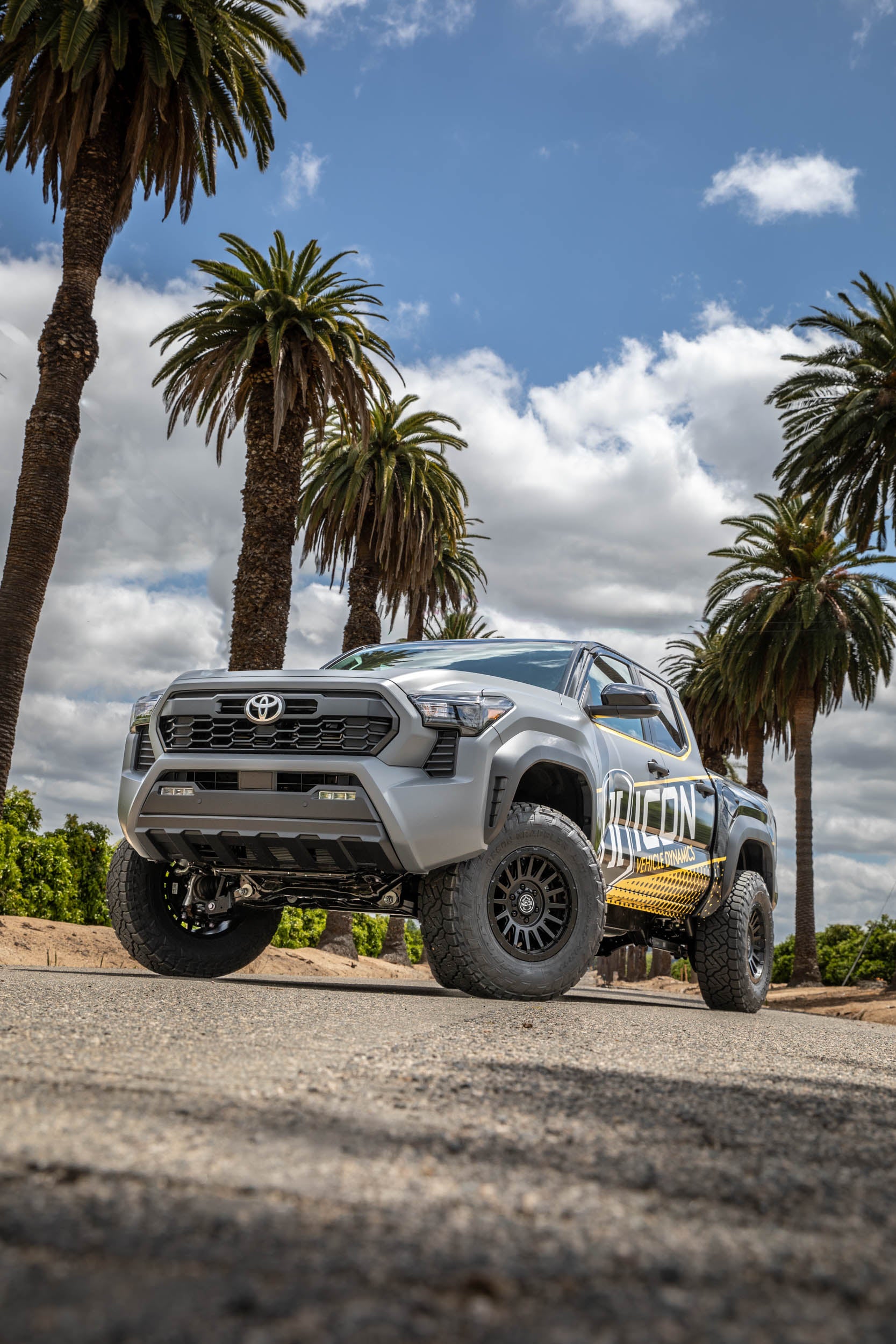

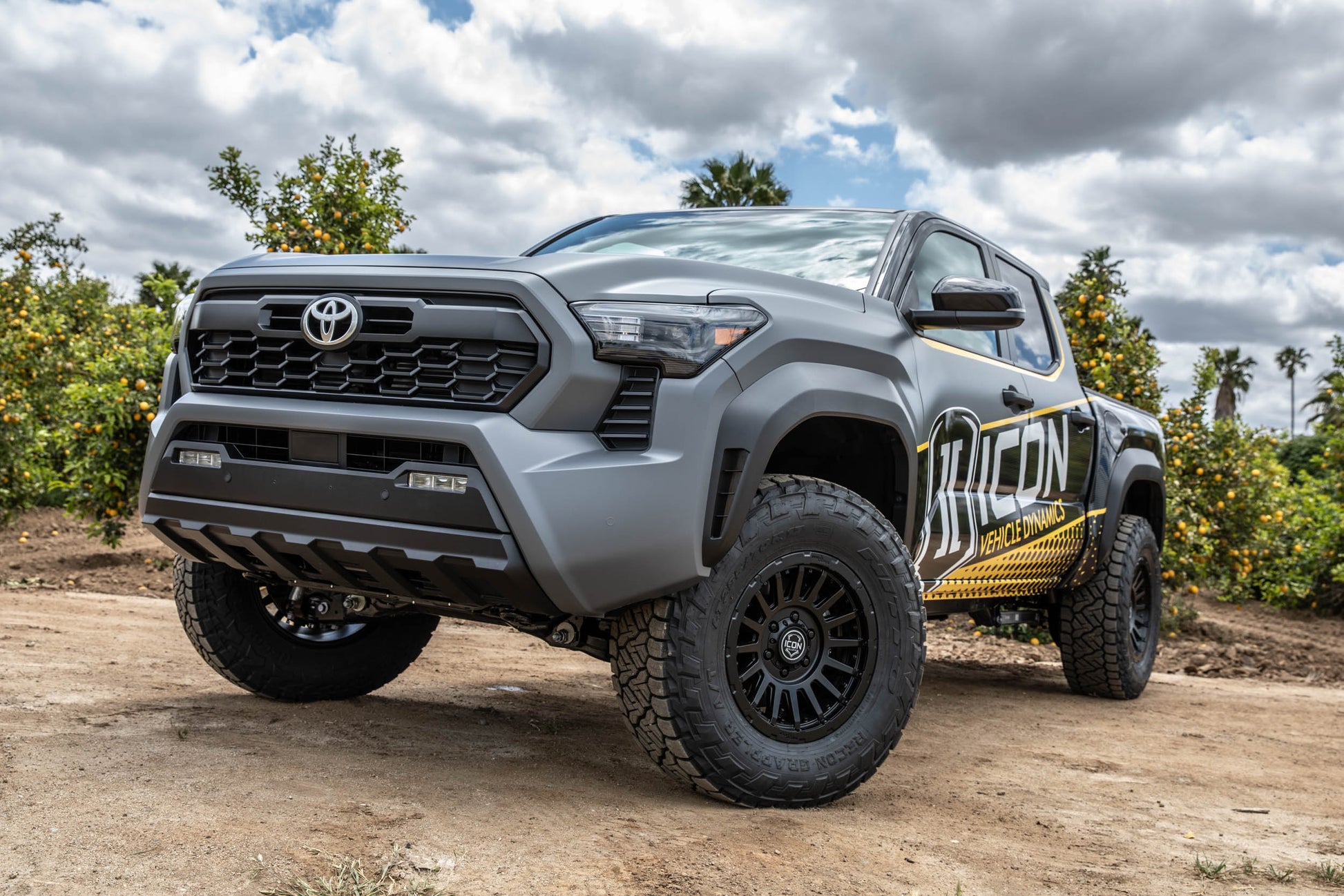

Title: ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 2 Suspension System, Tubular, Triple Rate Rear Springs
