ICON Vehicle Dynamics K53294T - 24-25 TACOMA 1.25-3" STAGE 4 SUSPENSION SYSTEM T

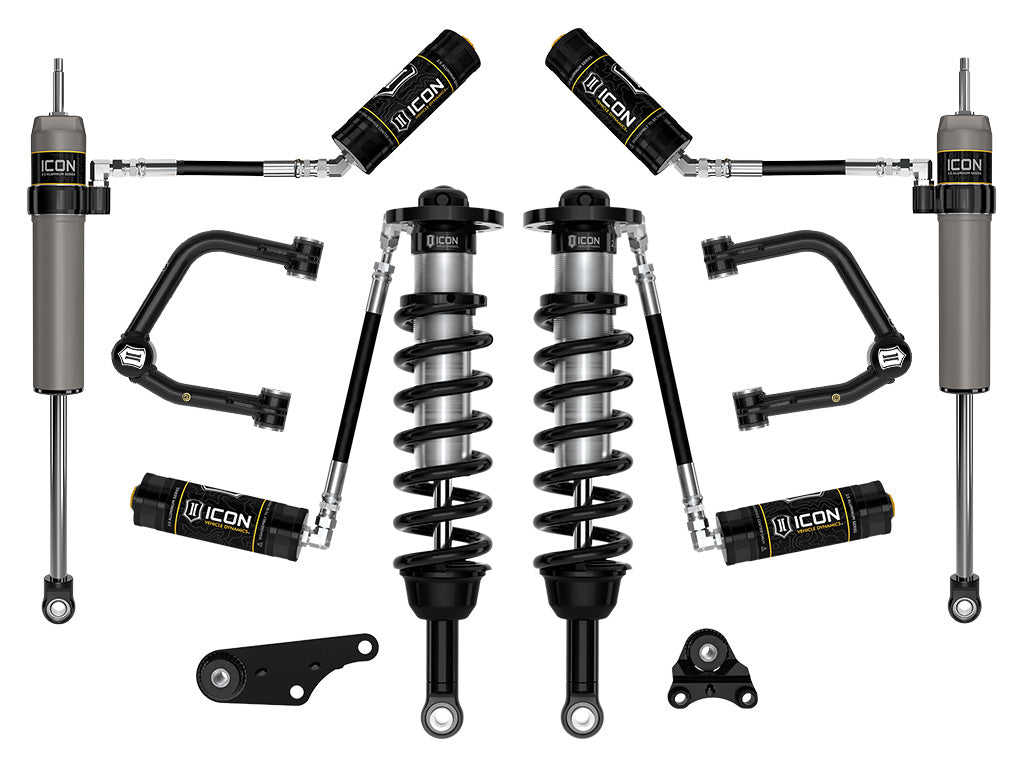

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features & Benefits
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Additional Attributes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 56100 - 07-14 FJ/03-25 4RUNNER/22-25 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56116 - 24-25 TACOMA FRONT SKID PLATE
Add-On Part: 56117 - 24-25 TACOMA/25 4RUNNER GAS TRANSMISSION SKID PLATE
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Coils Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3
Minimum Lift Front: 1.25
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Title: ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Tubular
